TOA D-936R – 4-Input Stereo Select Module for D-901/DP-K1
Product Overview

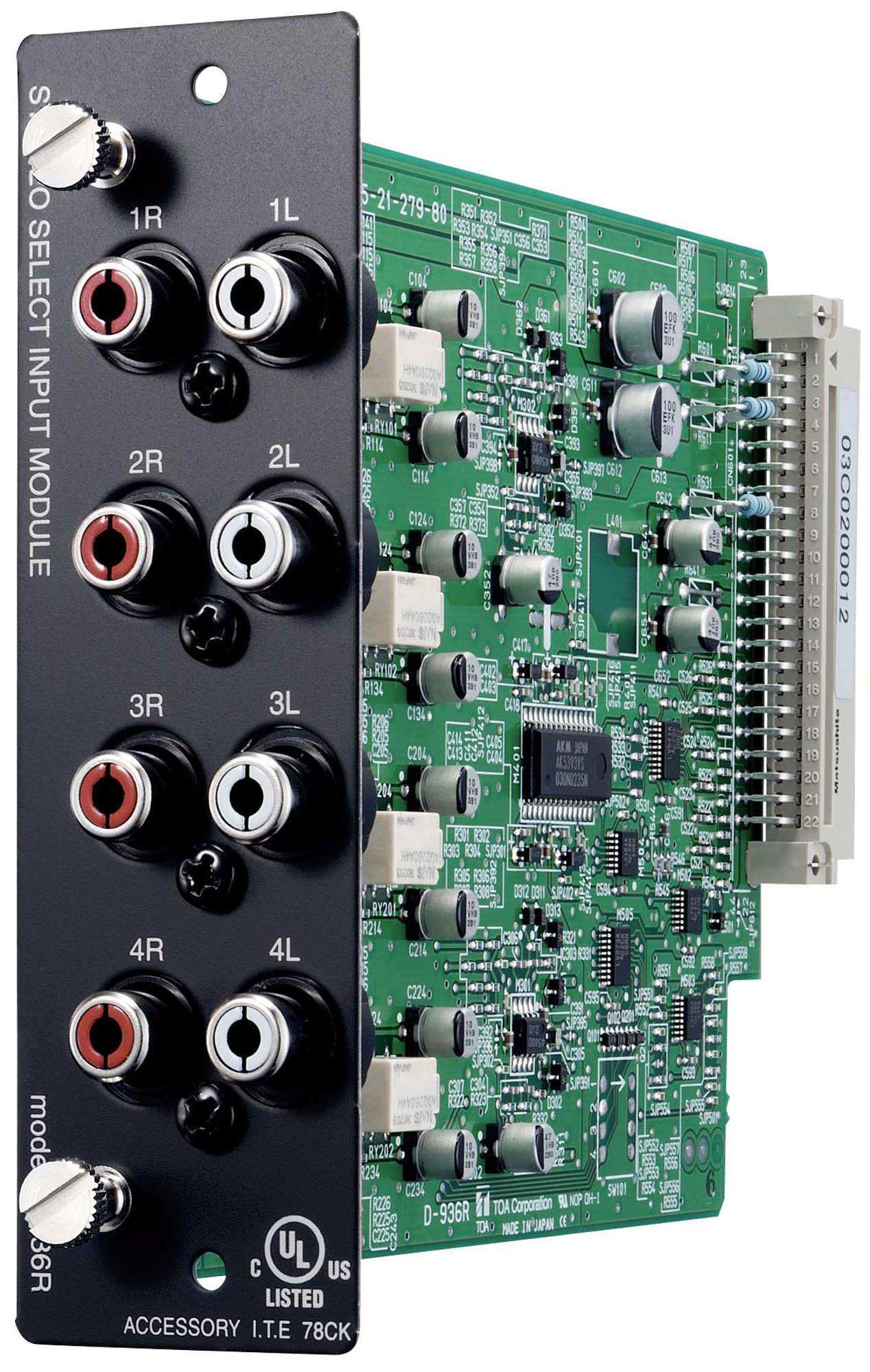

The TOA D-936R is a plug-in stereo select input module that adds four unbalanced stereo RCA inputs to TOA D-901, D-2008SP, or DP-K1 digital audio processor systems. Each input is independently selectable, or all four can be mixed together, giving system designers flexible source-management options within the D-901 platform without additional external equipment.
Product Description
Installed directly into the D-901 or DP-K1 frame, the D-936R provides four stereo RCA inputs at −10 dBV nominal input level with a 10 kΩ input impedance. In select mode, the operator or control system chooses one of the four sources to pass through; in mix mode, all four inputs are combined at the module's output. This makes the D-936R a practical solution for background music routing in commercial installs where multiple playback sources—such as streaming devices, CD players, or digital signage audio outputs—must be managed centrally within the D-901 ecosystem.
Key Features
- Four unbalanced stereo RCA inputs at −10 dBV nominal input level for connecting consumer and pro-sumer sources
- Select mode routes one input through; mix mode combines all four inputs simultaneously
- 10 kΩ input impedance compatible with standard consumer audio output levels
- Plug-in module format installs directly into the D-901, D-2008SP, or DP-K1 frame
- Expands background music source management without adding external switching hardware
Technical Specifications
- Number of Inputs: 4 stereo (8 channels total)
- Input Connector: RCA (phono)
- Nominal Input Level: −10 dBV
- Input Impedance: 10 kΩ
- Input Selection: Select 1 of 4, or mix all 4
- Compatible Units: TOA D-901, D-2008SP, DP-K1
