TOA U-03R – Stereo RCA Aux Input Module
Product Overview

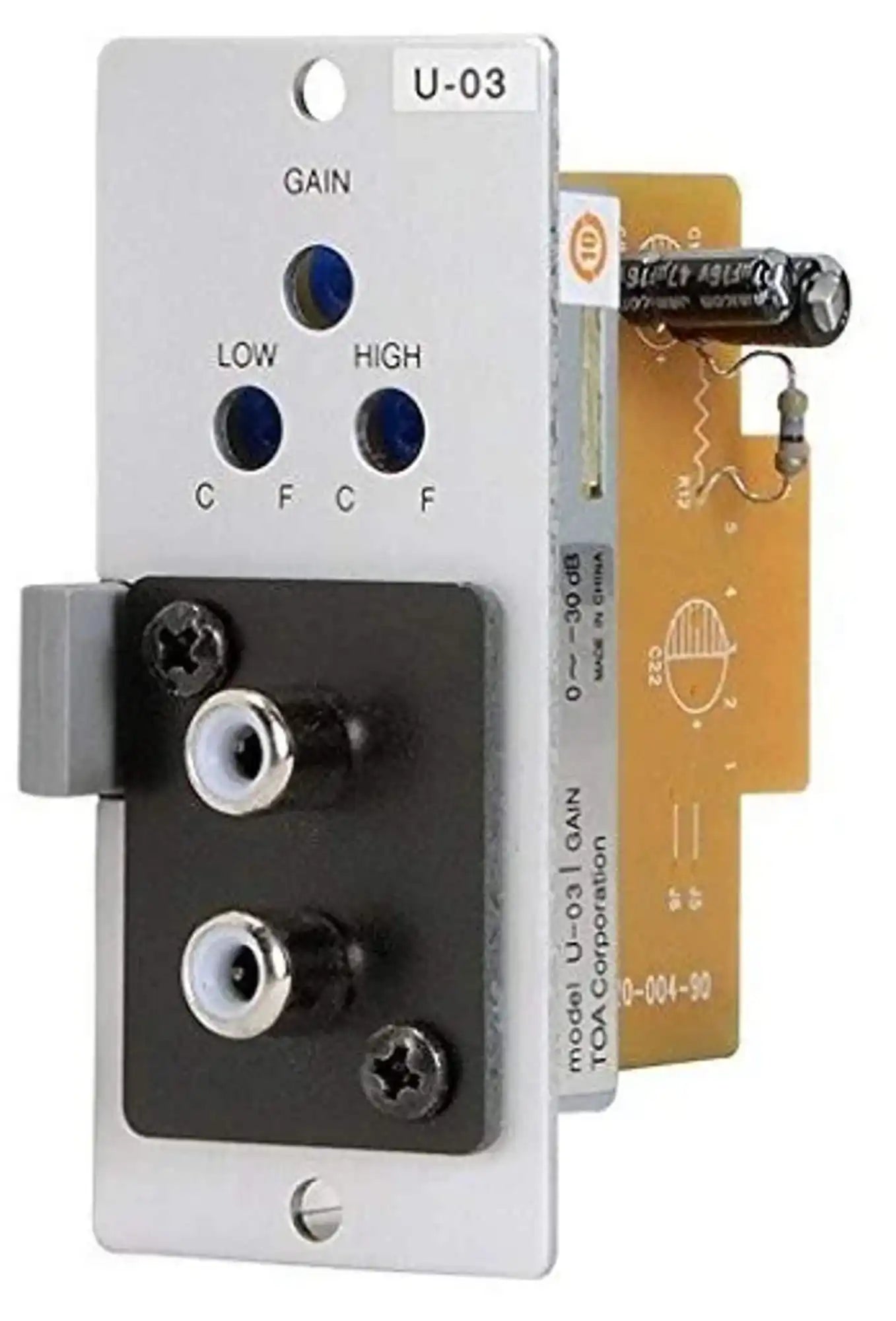

The TOA U-03R is a plug-in auxiliary line input module with dual RCA jacks and passive stereo summing for TOA 900 Series mixer-amplifiers. It takes a stereo consumer source and sums it to the mono distributed-audio bus typical of commercial paging and background-music systems. Built-in high-cut and low-cut filters let integrators shape tone at the input.
Product Description
The U-03R accepts a stereo line source on dual RCA jacks and passively sums the two channels for a mono 70/100 V distribution system, which is how most commercial background-music feeds are handled. It installs into a TOA 900 Series host slot and is powered by 24 V DC from the main frame. The module is intended for adjacent line-level sources within roughly 15 feet, such as media players, tuners, and sound cards. Onboard high-cut and low-cut filters give the installer tone control at the input, useful for taming bright sources or thinning rumble before the signal reaches the amplifier. Input sensitivity is adjustable across a wide range so the source can be set to the system reference level. Frequency response runs 20 Hz to 20 kHz with low noise and distortion. For stereo consumer sources feeding a mono distributed system, the U-03R is the matched aux input, and its filters and summing make it a tidy single-module solution.
Key Features
- Dual RCA with summing — The module accepts a stereo source and passively sums it to mono for distributed audio.
- High-cut and low-cut filters — Onboard tone filters let installers shape the source at the input.
- Adjustable sensitivity — A wide input range sets the source to the system reference level.
- Frame-powered design — The module draws 24 V DC from the host, so no external supply is required.
- Low-noise path — A 20 Hz to 20 kHz response with under 10 μV noise keeps music clean.
- 900 Series fit — The module installs in standard TOA 900 Series host slots.
Technical Specifications
| Power Supply | 24 V DC |
| Current Consumption | Under 8 mA |
| Input Sensitivity | 100 - 3,600 mV (adjustable, rated output 100 mV) |
| High Cut Filter (10 kHz) | -7 to -13 dB |
| Low Cut Filter (100 Hz) | -5 to -15 dB |
| Noise Output | Under 10 μV |
| Frequency Response | 20 Hz - 20 kHz |
| Distortion | Under 0.05 % |
| Input Connector | RCA pin jacks |
| Output Connector | 6P card edge-connector |
| Dimensions | 35 (W) x 78 (H) x 88 (D) mm |
| Weight | 50 g |
Specifications per the TOA datasheet.
