TOA SR-TB4 Wall Tilt Bracket for SR-S Series Line Array Speakers
Product Overview

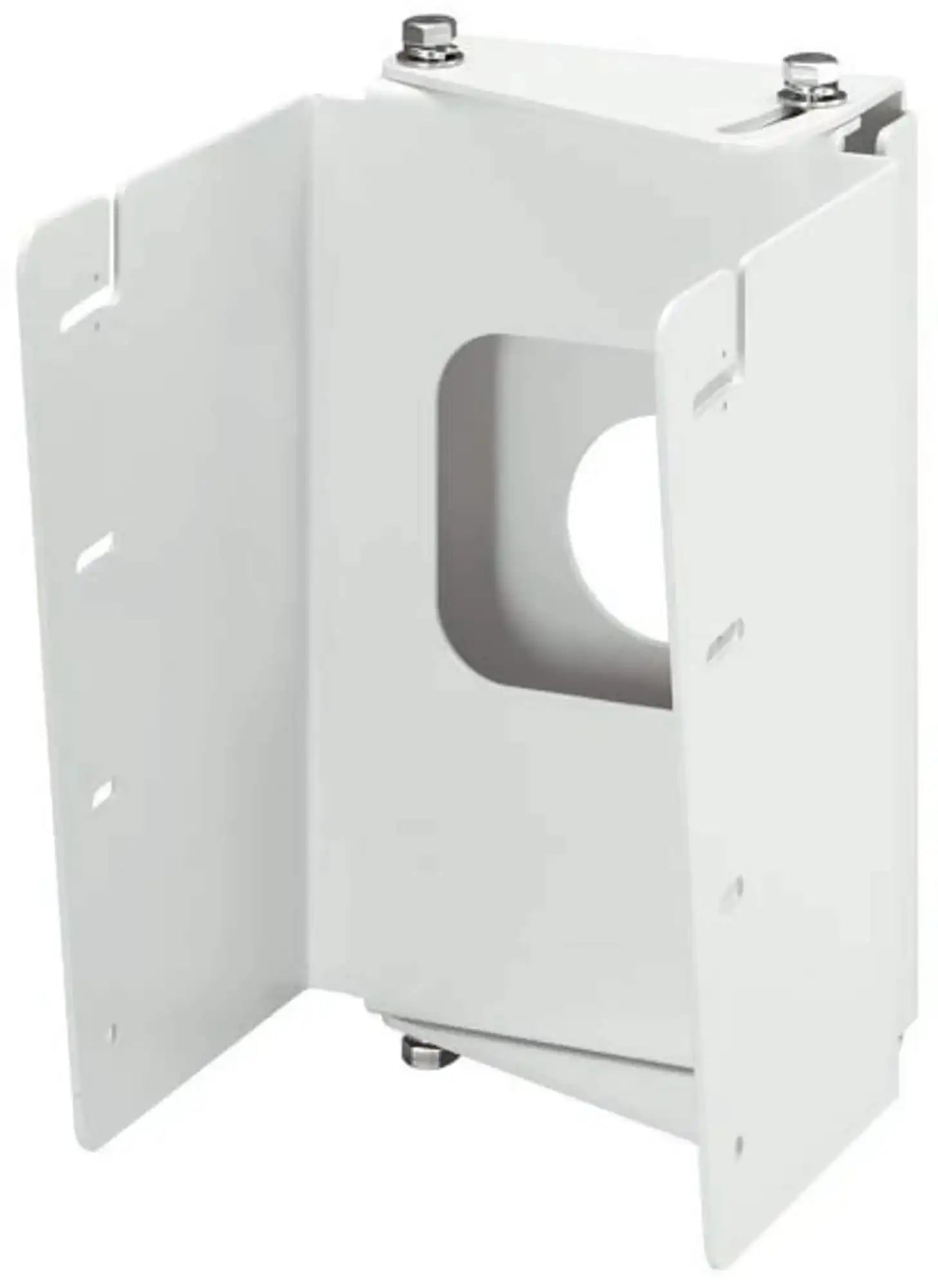

The TOA SR-TB4 is a wall tilt bracket engineered for mounting the SR-S4S and SR-S4L line array speakers in permanent commercial AV installations. The bracket provides 0–5° of downward tilt adjustment and up to ±20° of horizontal aim adjustment, enabling precise speaker coverage targeting without relocating the wall attachment point. White powder-coated steel construction delivers the structural strength required for secure overhead or high-wall speaker placement. The SR-TB4 is a primary mounting solution when wall installation is specified for TOA SR-S series line array systems.
Product Description
The TOA SR-TB4 wall tilt bracket is designed exclusively for the SR-S4S and SR-S4L line array speaker systems, providing the wall-mount interface required for permanent commercial AV installations in auditoriums, multi-purpose rooms, and commercial meeting spaces. The 0–5° downward tilt range allows the AV integrator to direct coverage toward the audience area while maintaining a flush wall profile, and the horizontal swing of up to ±20° accommodates asymmetric room geometry without re-drilling the wall mount anchor points. White powder-coated steel construction matches the standard finish of the SR-S4S/SR-S4L cabinets for a cohesive installation appearance. The bracket is compatible with standard commercial wall construction and is designed for single-person installation with standard hand tools. Proper speaker tilt is critical for achieving the intended coverage pattern and speech intelligibility in the SR-S series system design; TOA recommends using the SR-TB4 when wall mounting is specified in the project drawings. For outdoor deployments requiring a weatherproof solution, the SR-TB4WP variant provides equivalent mounting with weatherproofing. Explore the full TOA SR-S line array system and mounting accessories at creationnetworks.net.
Key Features
- 0–5° Downward Tilt — Adjustable downward tilt directs coverage toward the audience area for optimized speech intelligibility and SPL distribution.
- ±20° Horizontal Aim — Horizontal swing adjustment accommodates asymmetric room geometry without relocating wall anchor points.
- White Powder-Coated Steel — Durable steel construction with a white finish matches TOA SR-S series speaker cabinets for a clean, cohesive installation appearance.
- SR-S4S / SR-S4L Compatible — Purpose-designed for TOA's SR-S series line array speakers; ensures correct mechanical fit and structural support.
- Single-Person Installation — Bracket design supports installation by a single AV technician using standard hand tools.
Typical Applications
- Auditorium
- Multi-purpose room
- House of worship
- Conference room
- Commercial meeting space
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Speakers | TOA SR-S4S, SR-S4L |
| Downward Tilt Range | 0° – 5° |
| Horizontal Aim Range | Up to ±20° |
| Construction | Steel, white powder-coat finish |
| Mount Type | Wall tilt bracket |
| Outdoor Variant | SR-TB4WP (weatherproof) |
Frequently Asked Questions
Which TOA speakers is the SR-TB4 compatible with?
The SR-TB4 is designed for the TOA SR-S4S and SR-S4L line array speakers. It provides the mechanical interface required for wall-mount deployment of these speakers in commercial AV installations.
Is there an outdoor version of the SR-TB4?
Yes — the TOA SR-TB4WP is the weatherproof variant, designed for outdoor installations or locations exposed to moisture and environmental conditions.
What tilt adjustment range does the SR-TB4 provide?
The SR-TB4 offers 0–5° of downward tilt and up to ±20° of horizontal aim adjustment, allowing the integrator to target speaker coverage without relocating wall anchor points.
Is special hardware required to install the SR-TB4?
Standard commercial wall anchors and hand tools are sufficient for installation. Hardware requirements depend on the wall construction type (drywall, masonry, etc.) at the installation site.
What finish is the SR-TB4?
The SR-TB4 features a white powder-coat finish that matches the standard white finish of TOA SR-S4S and SR-S4L speaker cabinets for a cohesive installation appearance.
