TOA Electronics SR-S Series Wall Tilt Bracket (Outdoor) - SR-TB4WP
Overview

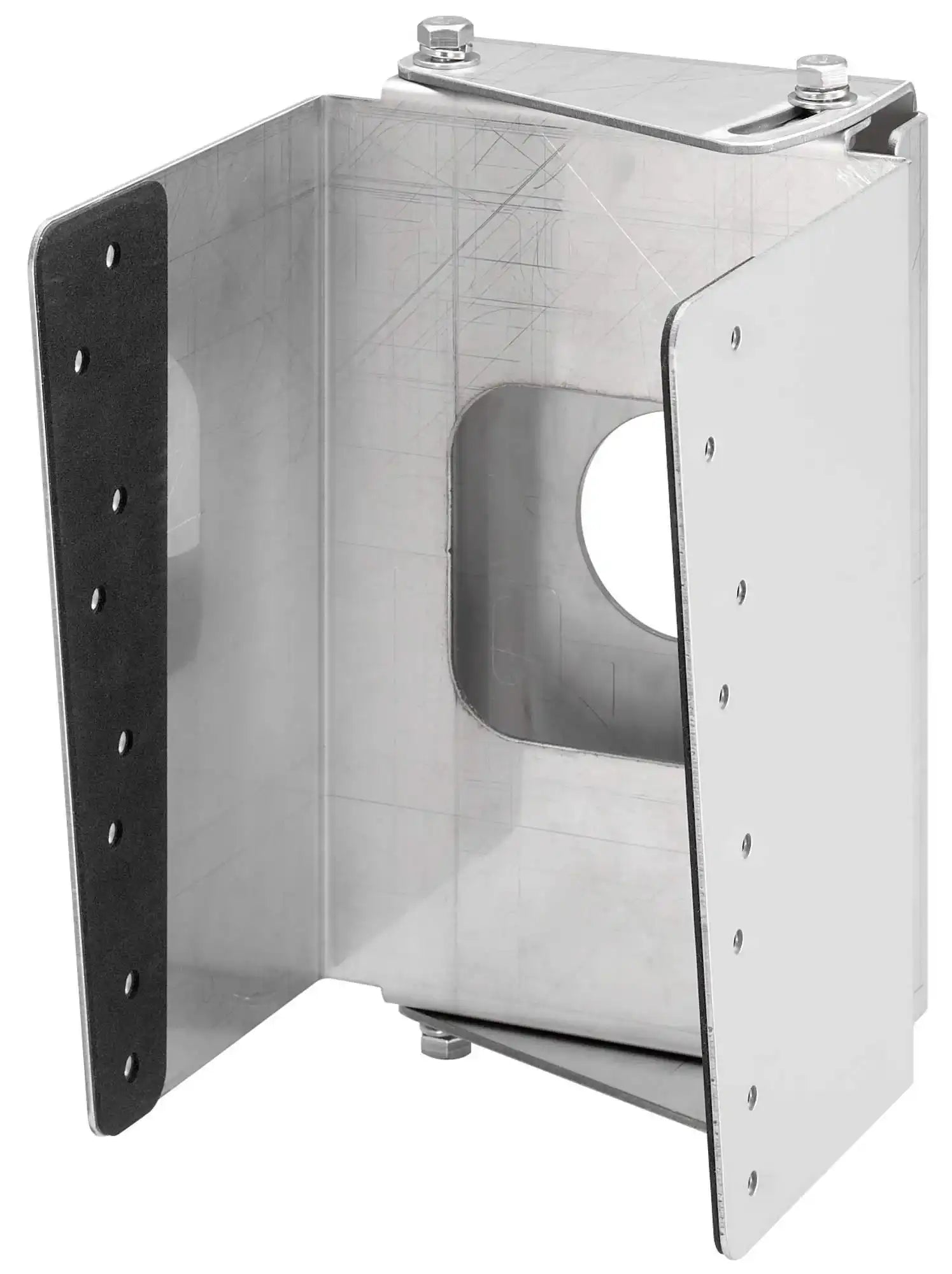

DEAL: On Sale — The TOA SR-TB4WP is a weatherproof wall tilt bracket for the SR-S4LWP and SR-S4SWP outdoor line array speakers. Constructed entirely from SUS304 stainless steel, it provides adjustable tilt (0° or 5° downward) and horizontal swivel (up to 20°) for precise speaker aiming in outdoor permanent installations.
Description
The SR-TB4WP consists of a speaker mounting bracket and bracket base assembled with the included M8 upset-head screws. Stainless steel (SUS304) construction ensures corrosion resistance in outdoor environments exposed to rain, humidity, and UV. The discrete two-position tilt angle (0° or 5°) and continuous horizontal swivel to 20° allow integrators to aim the SR-S4LWP or SR-S4SWP precisely at coverage zones during installation. Note: speaker fixing screws are not included with this bracket and must be sourced separately. The complete assembly measures 167 × 247 × 201 mm and weighs 2.8 kg.
Key Features
- SUS304 stainless steel construction — Full stainless build for corrosion-resistant outdoor permanent installation.
- Adjustable tilt: 0° or 5° — Two discrete downward angles accommodate different mounting heights and coverage requirements.
- Up to 20° horizontal swivel — Continuous horizontal adjustment for precise speaker aiming without repositioning the wall anchor.
- Compatible with SR-S4LWP and SR-S4SWP — Designed specifically for the outdoor variants of the SR-S Series slim line array speakers.
- Hardware included — 4 M8 bracket assembling screws included; speaker fixing screws are not supplied and must be sourced separately.
Typical Applications
The SR-TB4WP is engineered for outdoor permanent speaker installations: stadium and sports venue perimeter walls; covered outdoor entertainment spaces such as amphitheaters, patio dining areas, and resort pools; transportation hubs including bus terminals, rail platforms, and open-air concourses requiring weather-resistant directional speaker mounting; and outdoor hospitality and commercial installations where the SR-S4LWP or SR-S4SWP line array is the specified speaker.
Technical Specifications
| Specification | Detail |
|---|---|
| Compatible Speakers | SR-S4LWP, SR-S4SWP |
| Number of Speakers | 1 |
| Tilt Angle | 0° or 5° (downward) |
| Horizontal Swivel | Up to 20° |
| Material | Stainless steel (SUS304) |
| Dimensions (complete assembly) | 167 (W) × 247 (H) × 201 (D) mm |
| Weight | 2.8 kg (including accessories) |
| Product Composition | Speaker mounting bracket ×1, Bracket base ×1 |
| Included Accessories | Bracket assembling screw M8 (upset head) ×4 |
| Note | Speaker fixing screws not supplied — source separately |
FAQ
- What is the difference between the SR-TB4WP and the SR-TB4?
- The SR-TB4WP is the stainless steel weatherproof version for outdoor installations with the SR-S4LWP/SR-S4SWP speakers. The SR-TB4 is for indoor use with the non-WP SR-S4L/SR-S4S speakers.
- Are speaker fixing screws included?
- No — only the 4 bracket assembling screws (M8 upset head) are included. Speaker-to-bracket fixing screws must be sourced separately.
- Can the SR-TB4WP accommodate multiple speakers?
- No — the SR-TB4WP mounts one speaker. For multi-speaker configurations, consider the SR-FB4 flying bracket or multiple bracket installations.
- Can the tilt angle be set to values other than 0° or 5°?
- The SR-TB4WP provides two fixed tilt positions only: 0° (horizontal) and 5° downward. The horizontal swivel is continuously adjustable to 20°.
- Is the SR-TB4WP suitable for direct rain exposure?
- Yes — the SUS304 stainless construction is designed for outdoor use. However, TOA recommends installing speakers under eaves or roof overhangs to maximize longevity.
