TOA Q-SS9012PS 12-Zone Speaker Selector | 9000M2 Series

Product Overview

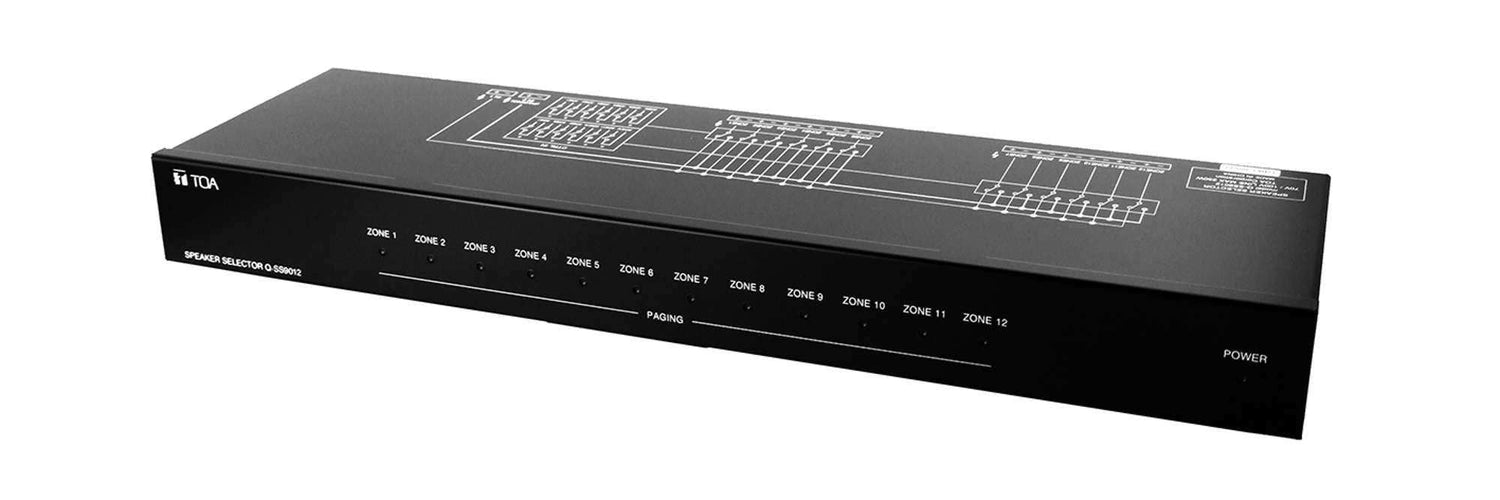

The TOA Q-SS9012PS is a 12-zone contact-closure speaker selector for use with TOA 9000M2 Series mixer amplifiers and other paging equipment. It accepts two amplified audio inputs and routes each of them to up to 12 independent speaker output zones based on contact closure signals, enabling zone-selective paging over BGM and automated zone switching. DEAL: On Sale.

Product Description

The Q-SS9012PS receives two amplified inputs (IN1 for BGM, IN2 for paging) and switches each of 12 output zones between them based on 12 independent dry-contact closure inputs. When a contact closes on a zone, that zone switches from BGM (IN1) to the paging output (IN2), enabling zone-targeted announcements without disrupting other zones. An LED indicator for each zone provides visual confirmation of active routing state. The included AD-246 AC adapter powers the unit from a standard outlet. Optional mounting hardware (MB-15B rack bracket, YC-850 wall bracket) and the IB-9012-AM interface board for paired Q-RM9012PS remote operation are available. Connections use removable terminal blocks for clean field installation. Dimensions are 420 x 44 x 123 mm (1U rack height) for standard 19-inch rack installation with the optional MB-15B bracket.

Key Features

Typical Applications

The TOA Q-SS9012PS is suited for multi-zone commercial PA systems requiring paging priority over background music: retail chain stores with zoned BGM and cashier paging, school campuses with classroom or corridor zone control, office buildings and corporate campuses with distributed audio across departments, hotels with floor-by-floor or zone-based paging and BGM, and any 9000M2 Series installation requiring zone-selective paging without dedicated zone amplifiers. Pairs with the Q-RM9012PS remote panel and IB-9012-AM interface board for complete remote zone control. See related TOA 9000M2 Series components at Creation Networks.

Technical Specifications

FAQ

• How does zone switching work? Each of the 12 contact closure inputs controls one output zone. When a contact closes, that zone switches from BGM (IN1) to the paging input (IN2). When released, it returns to BGM.
• Does it work without a 9000M2 Series amplifier? Yes — the Q-SS9012PS accepts any amplified 70V/100V input and any dry-contact closure signal, making it compatible with other paging systems.
• Is rack mounting included? No — the optional MB-15B rack mount bracket is sold separately. The unit can also be wall-mounted with the optional YC-850 bracket.
• What is the IB-9012-AM? An optional interface board that enables the Q-SS9012PS to pair directly with the Q-RM9012PS remote panel for combined zone selection and speaker routing control.
• Can it handle 70V and 100V simultaneously? Each of the two amplifier inputs (IN1, IN2) handles up to 250W of 70V or 100V line audio per zone output.
