TOA Electronics Slim Line Array Module- Straight- 600W, White - SR-S4L

Product Overview

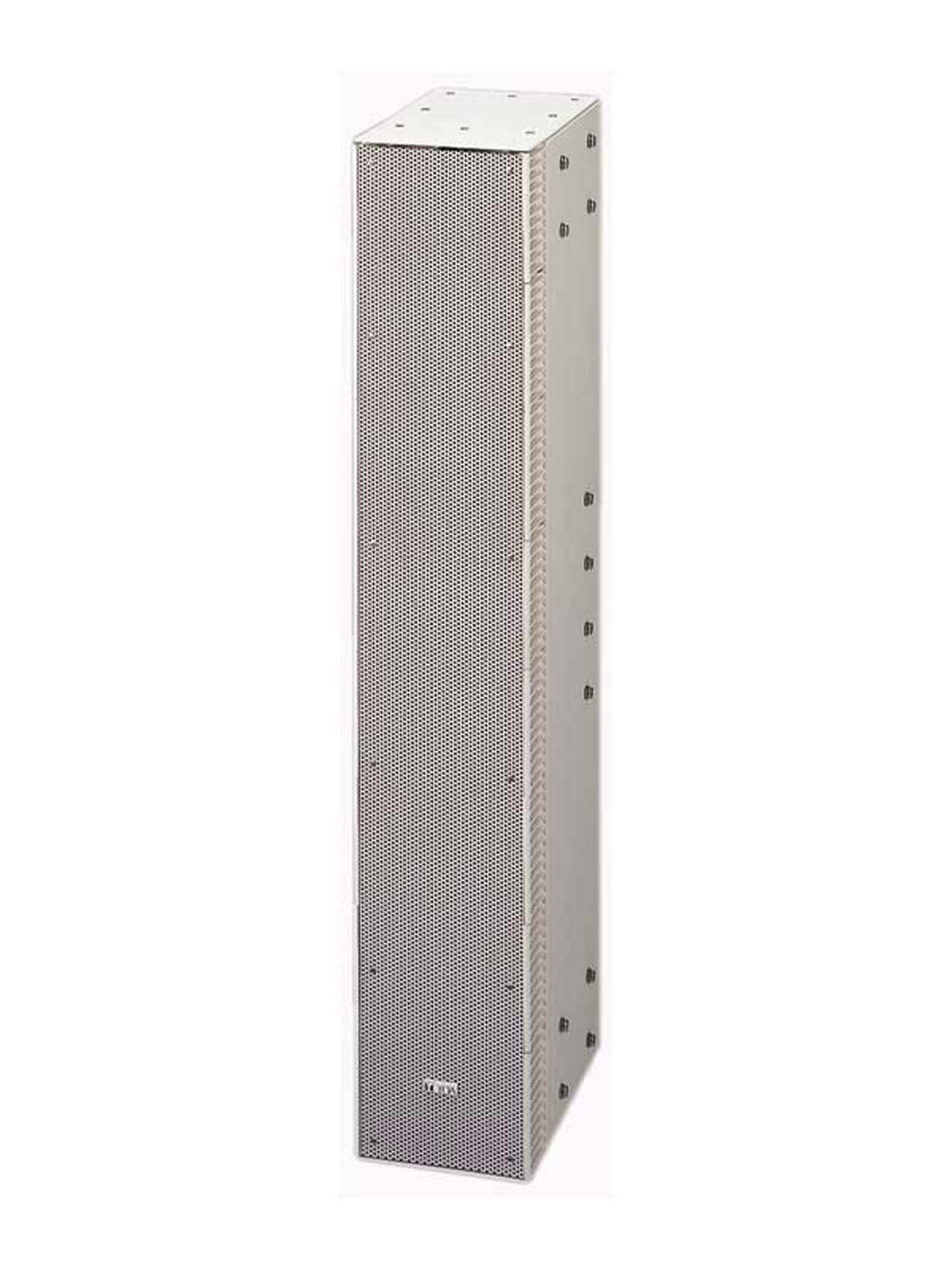

The TOA SR-S4L is a straight, two-way line array speaker engineered for long-distance sound transmission in commercial venues. It arranges eight 10 cm cone woofers and 24 balanced-dome tweeters vertically to create a linear sound source with reduced attenuation over distance and strong feedback resistance. Rated at 600 W continuous program at 8 ohms, it supports 70V/100V distributed systems with the optional MT-S0601 transformer and can be driven full-range or bi-amped. Its straight profile makes it ideal for auditoriums, houses of worship, and large multi-purpose rooms.

Product Description

The SR-S4L is part of TOA's Slim Line Array Type S platform and uses Sync-Drive arrangement to form an ideal linear sound source. Eight direct-radiating 10 cm cone-type drivers share a horizontal axis with 24 centrally mounted 25 mm balanced-dome tweeters, delivering clear, reflection-free sound with minimal level drop across the room. The integral crossover is fixed at 3,500 Hz and optimized for smooth on- and off-axis response. Horizontal coverage holds at a nominal 90 degrees above 2,000 Hz, while the vertical pattern stays consistent and can be extended by stacking additional units. The cabinet runs full-range from a single amplifier or can be reconfigured internally for bi-amp operation, with the low- and high-frequency sections each rated at 240 W. Two M4 screw terminals and two Neutrik NL4 connectors support parallel pass-through to additional cabinets. With the optional MT-S0601 transformer, the speaker provides 70.7V taps at 7.5, 15, 30, and 60 watts. The MDF enclosure is finished in white with a punched-steel grille, and threaded inserts accept TOA's flying, wall, tilt, and stand brackets. For a clothoid curved companion module, browse our TOA SR-S4 line array options.

Key Features

• Straight line array — A vertical column of drivers projects clear sound over long distances with low attenuation.
• Sync-Drive design — Closely spaced elements create an ideal linear sound source for even coverage.
• 600 W program power — Reproduces speech and music reliably in large rooms and long halls.
• Bi-amp capable — Internal reconfiguration splits the cabinet into 240 W LF and 240 W HF sections.
• 70V/100V ready — The optional MT-S0601 transformer adds 7.5 to 60 W taps for distributed systems.
• Reflection-free, feedback resistant — Controlled vertical coverage reduces reflections and improves gain before feedback.
• NL4 pass-through wiring — Neutrik NL4 connectors plus screw terminals simplify cabinet daisy-chaining.
• Wide mounting choice — Threaded inserts accept flying, wall, tilt, stand, and floor-stand brackets.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Conference room
• Government space

Technical Specifications

Frequently Asked Questions

Does the SR-S4L work with 70V/100V systems? Yes. Installing the optional MT-S0601 matching transformer provides 70.7V taps from 7.5 to 60 W; otherwise it operates as an 8-ohm low-impedance speaker.

Can I bi-amp the SR-S4L? Yes. Changing the internal connections enables bi-amp drive, with separate 240 W low- and high-frequency sections.

How is it different from the SR-S4S? The SR-S4L has a straight profile for long-throw projection, while the SR-S4S adds a clothoid curve to widen vertical coverage. They can be combined.

What processor does TOA recommend? The TOA DP-SP3 digital speaker processor applies the recommended EQ and crossover settings.

What brackets are available? Options include the SR-WB4 wall bracket, SR-TB4 tilt bracket, SR-FB4 flying bracket, SR-SA4 stand adapter, SR-FS4 floor stand, and SR-EP4 extension plate.

Is the SR-S4L suitable for outdoor use? It is intended for indoor installation; choose the splashproof SR-S4LWP for covered outdoor areas.
