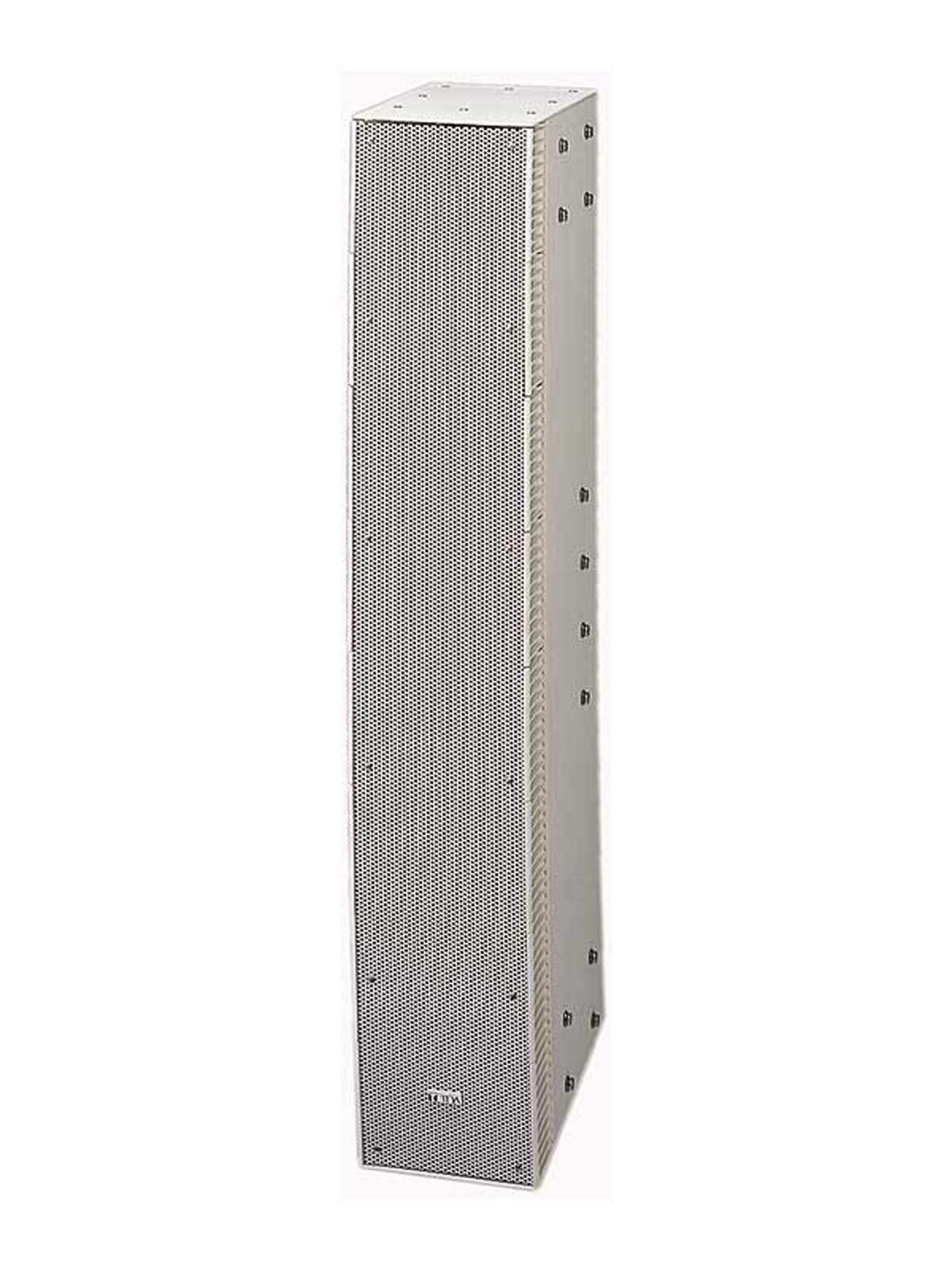

TOA Electronics Slim Line Array Module- Curved- 600W, White - SR-S4S

Product Overview

The TOA SR-S4S is a clothoid (J-curve) two-way line array speaker built for even, long-throw coverage in large, reverberant commercial spaces. Its slim profile pairs eight 10 cm cone woofers with 24 balanced-dome tweeters in a vertical array, holding consistent dispersion with minimal level drop over distance. Rated at 600 W continuous program with 8-ohm low-impedance operation, it also drives 70V/100V distributed systems using the optional MT-S0601 matching transformer. The curved enclosure suits auditoriums, houses of worship, and other rooms where speech intelligibility is critical.

Product Description

The SR-S4S extends TOA's Slim Line Array Type S platform with a clothoid curved profile that widens vertical coverage by steering energy toward the rear of a listening area. Eight direct-radiating 10 cm cone-type drivers share a horizontal axis with 24 centrally mounted 25 mm balanced-dome tweeters, producing a coherent linear sound source. The integral frequency-dividing network is fixed at a 3,500 Hz crossover and tuned for smooth on- and off-axis response. Horizontal coverage holds at a nominal 90 degrees above 2,000 Hz, while the vertical pattern can be shaped by stacking SR-S4S curved and SR-S4L straight modules together. The cabinet can run full-range from a single amplifier or be reconfigured internally for bi-amp operation. Two M4 screw terminals and two Neutrik NL4 connectors allow parallel pass-through to additional cabinets. With the optional MT-S0601 transformer installed, the speaker offers 70.7V taps at 7.5, 15, 30, and 60 watts for distributed installs. The MDF enclosure is finished in white paint with a punched-steel grille, and threaded inserts accept TOA flying, wall, tilt, and stand brackets. For a straight-profile companion module, browse our TOA SR-S4 line array options.

Key Features

• Clothoid curved array — The J-curve profile broadens vertical coverage to reach listeners toward the back of a room.
• 32-driver line source — Eight 10 cm woofers and 24 balanced-dome tweeters form a coherent vertical sound source.
• 600 W program power — Handles demanding speech and music program material across large venues.
• Single-amp or bi-amp drive — Internal reconfiguration lets you run the cabinet full-range or split the LF and HF sections.
• 70V/100V ready — The optional MT-S0601 transformer adds 7.5 to 60 W taps for distributed systems.
• NL4 pass-through wiring — Two Neutrik NL4 connectors plus screw terminals simplify daisy-chaining cabinets.
• Flexible mounting — Threaded inserts accept flying, wall, tilt, and stand brackets for permanent or portable rigs.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Conference room
• Government space

Technical Specifications

Frequently Asked Questions

Is the SR-S4S compatible with 70V/100V systems? Yes. With the optional MT-S0601 matching transformer it provides 70.7V taps from 7.5 to 60 W; without it the speaker runs as an 8-ohm low-impedance cabinet.

Can the SR-S4S be bi-amped? Yes. Changing the internal connections enables bi-amp operation, with the low- and high-frequency sections each rated at 240 W.

What processor does TOA recommend? The TOA DP-SP3 digital speaker processor applies the recommended EQ and crossover parameters for optimal response.

How do I extend vertical coverage? Stack curved SR-S4S modules with straight SR-S4L modules to shape the vertical pattern for the room.

What mounting hardware is available? Compatible accessories include the SR-WB4 wall bracket, SR-TB4 tilt bracket, SR-FB4 flying bracket, SR-SA4 stand adapter, and SR-EP4 extension plate.

Is this speaker weather resistant? No. The SR-S4S is for indoor use; choose the splashproof SR-S4SWP for covered outdoor or wash-down areas.
