TOA Electronics SIP Video Door Station - N-SP80VS1

Product Overview

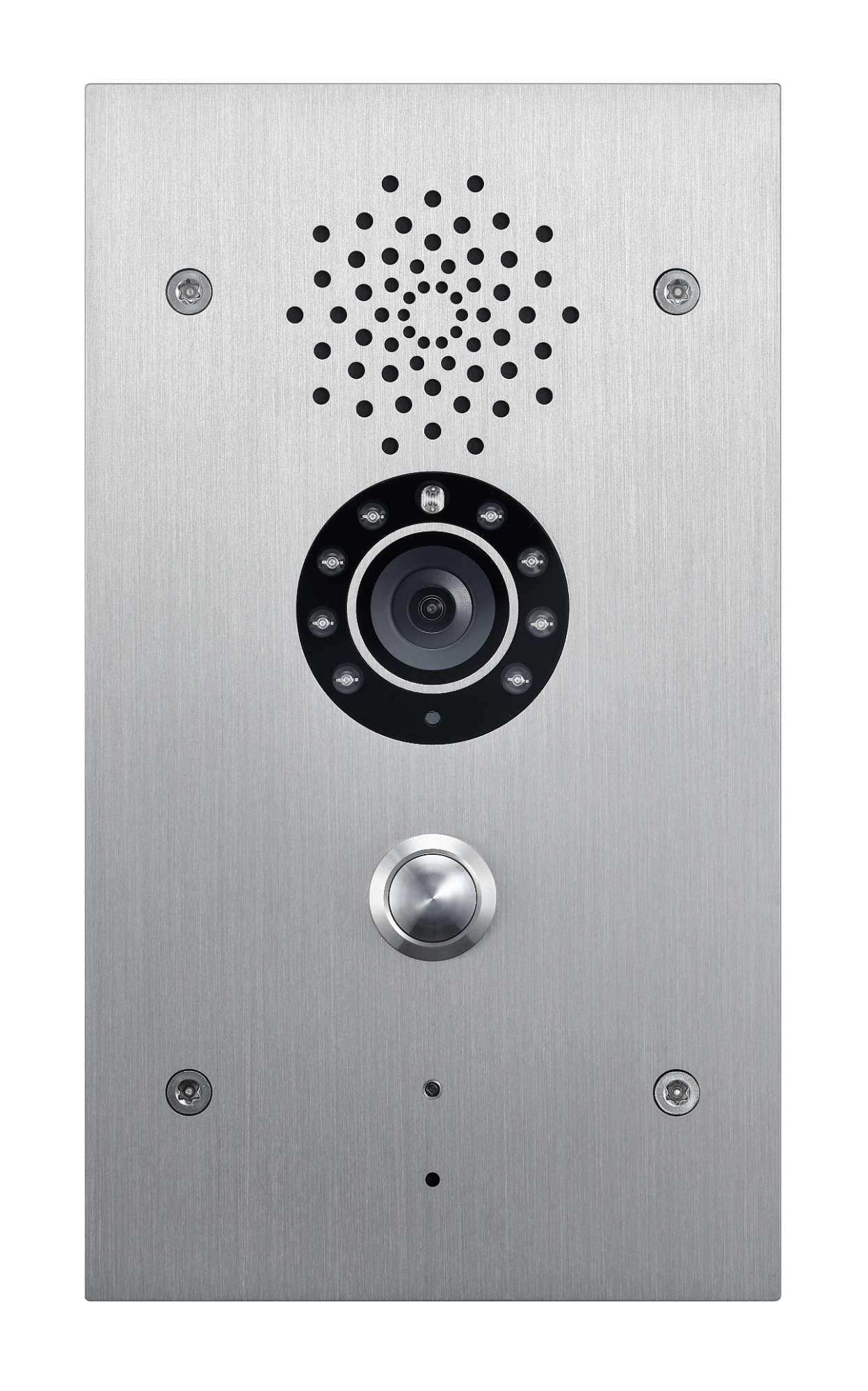

The TOA N-SP80VS1 is a SIP-compliant video door station built for integration with standard IP telephone systems at commercial entrances. A built-in camera lets staff see and speak with a visitor at the door, while a luminance sensor and infrared illumination capture images in low light. An acoustic echo canceller supports clear hands-free conversation, and a built-in relay can release a nearby door. The stainless-steel, IP65-rated panel and PoE connection suit demanding entry and access-control installations.

Product Description

The N-SP80VS1 combines video, SIP audio, and door-control functions in a single vandal-resistant entry station. It registers with a common IP telephone system using SIPv1 and SIPv2, and it can also run peer-to-peer over a direct IP connection without a SIP server. Audio processing includes an acoustic echo canceller, voice activity detection, and a comfort-noise generator for natural hands-free conversation, while the camera supports H.264, MPEG-4, and MJPEG video. Two relay control outputs rated 30 V DC at 1 A handle door release and auxiliary functions, and two control inputs accept no-voltage contacts. The station connects through two RJ45 ports, one of which supports PoE per IEEE 802.3af, and it can also receive a multicast audio stream for paging. Security features include password protection, IP address filtering, SIP over TLS, and HTTPS. The IP65-rated stainless-steel panel withstands outdoor exposure at the door. For master stations and back boxes that pair with this station, browse the TOA SIP intercom range at Creation Networks.

Key Features

• SIP video door entry — Built-in camera lets staff see and speak with visitors over a standard IP telephone system.
• Night-vision capability — A luminance sensor and infrared illumination capture images in dark conditions.
• Relay door release — Two relay outputs rated 30 V DC at 1 A handle door unlock and auxiliary control.
• PoE operation — Powers from IEEE 802.3af PoE or 12 V DC, with two RJ45 ports for flexible cabling.
• Acoustic echo cancellation — Delivers clear hands-free conversation at the entrance.
• IP65 stainless-steel panel — Resists dust, water, and tampering for outdoor entry points.
• Network security — Supports password protection, IP filtering, SIP over TLS, and HTTPS.

Typical Applications

• Government space
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What systems is the N-SP80VS1 compatible with? It is SIP-compliant and integrates with common IP telephone systems, or it can run peer-to-peer over a direct IP connection without a SIP server.

Does it work in the dark? Yes. A built-in luminance sensor and infrared illumination let the camera capture images in low-light or nighttime conditions.

Can it unlock a door? Yes. Two relay outputs rated 30 V DC at 1 A can release a nearby door and handle auxiliary control.

How is it powered and cabled? It uses PoE per IEEE 802.3af or 12 V DC, connecting through two RJ45 ports, one of which supports PoE.

Is it suitable for outdoor entrances? Yes. The stainless-steel panel is IP65-rated and operates from -20 C to +55 C.

What network security does it support? Password protection, IP address filtering, SIP over TLS, and HTTPS.
