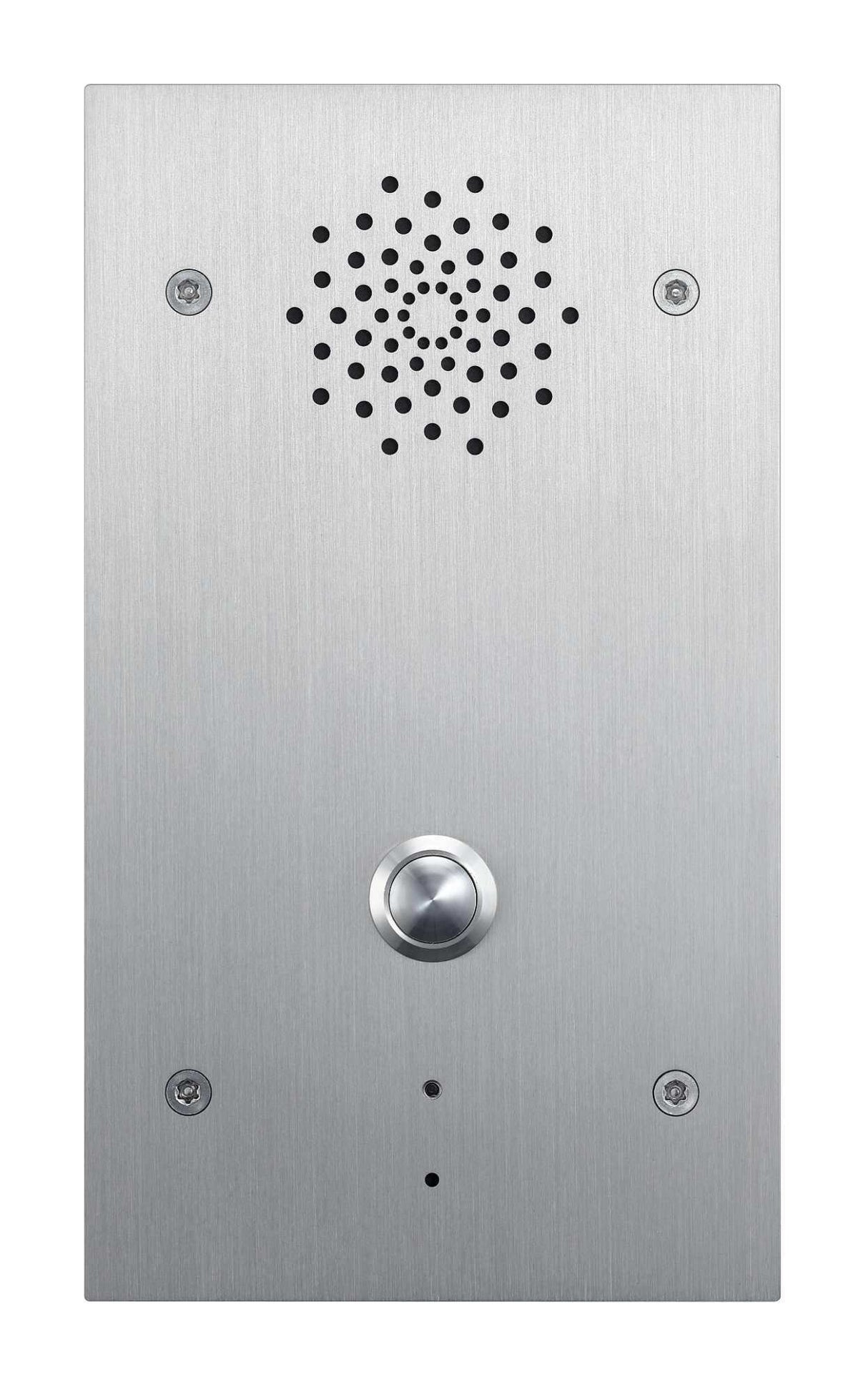

TOA N-SP80AS1 SIP Audio Door Station
Overview
The TOA N-SP80AS1 is a SIP-compliant outdoor audio door station designed for enterprise and institutional entry control. It integrates with any SIP-based IP telephone system, allowing visitors to call indoors and operators to remotely unlock doors over a standard LAN cable using PoE power.
Description
Built from 316-grade stainless steel and rated IP65 for dust and water ingress protection, the N-SP80AS1 is engineered for demanding outdoor environments. A single illuminated call button provides a clear user interface. Audio echo cancellation ensures high-quality hands-free conversation, while support for G.711 mu-law/A-law, G.722, and G.729 codecs delivers flexible, high-clarity audio. The built-in relay output can trigger electronic door locks or gate controllers directly. A multicast audio stream receiving function enables the unit to serve double-duty as a paging endpoint.
Key Features
- SIP-compliant: compatible with Cisco CUCM, Asterisk, Genetec Sipelia, and other SIP servers
- PoE powered (IEEE 802.3af) — no separate power supply required
- IP65 rated — weatherproof against dust and water ingress
- 316-grade stainless steel enclosure for corrosion resistance
- Built-in relay output for direct door or gate unlock control
- Audio codecs: G.711 mu-law/A-law, G.722, G.729
- Echo cancellation for clear hands-free conversation
- Multicast audio receive for paging integration
- Dual RJ45 ports (one PoE); supports IPv4, SIP, RTP, RTSP, HTTPS, SNMP, NTP, DHCP
- Operating range: -20 to +55 degrees C (-4 to +131 degrees F)
Typical Applications
- Corporate building entry control and visitor management
- Hospital and healthcare facility access points
- Educational campuses with IP telephone infrastructure
- Government and secure facility perimeter access
- Apartment buildings with SIP-based intercom systems
- Industrial facilities requiring weatherproof entry stations
Technical Specifications
| Specification | Value |
|---|---|
| Protocol | SIP (Session Initiation Protocol) |
| Audio Codecs | G.711 mu-law/A-law, G.722, G.729 |
| Network Interface | 10BASE-T/100BASE-TX Auto-Negotiation, RJ45 x2 (1x PoE) |
| Network Protocols | IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP |
| Power Supply | PoE IEEE 802.3af |
| Relay Output | 1x built-in (door/gate unlock) |
| Paging | Multicast receive x1 |
| Audio Bit Depth | Up to 16-bit |
| IP Rating | IP65 |
| Enclosure | 316-grade stainless steel |
| Dimensions (WxHxD) | 120 x 210 x 49.5 mm (4.72 x 8.27 x 1.95 in) |
| Operating Temperature | -20 to +55 degrees C (-4 to +131 degrees F) |
Frequently Asked Questions
Does the N-SP80AS1 work with any SIP server?
Yes. The N-SP80AS1 is SIP-compliant and has been verified with major SIP platforms including Cisco CUCM, Asterisk, and Genetec Sipelia. It works with any standards-based SIP server supporting G.711/G.722/G.729 codecs.
Is a separate power supply required?
No. The N-SP80AS1 is powered entirely via PoE (IEEE 802.3af) through its RJ45 LAN connection. A PoE-capable network switch or PoE injector is all that is needed.
Can it control an electric door lock?
Yes. The built-in relay output can directly trigger an electronic door lock or gate controller, allowing operators to unlock the door remotely during a call.
Is the N-SP80AS1 suitable for outdoor installation?
Yes. It is rated IP65 for full protection against dust ingress and low-pressure water jets. The 316-grade stainless steel housing provides excellent corrosion resistance, and the operating temperature range of -20 to +55 degrees C covers most climates.
