TOA TS-919B1 – Single-Unit Wired Bridge for TS-910 System
TOA TS-919B1 Overview

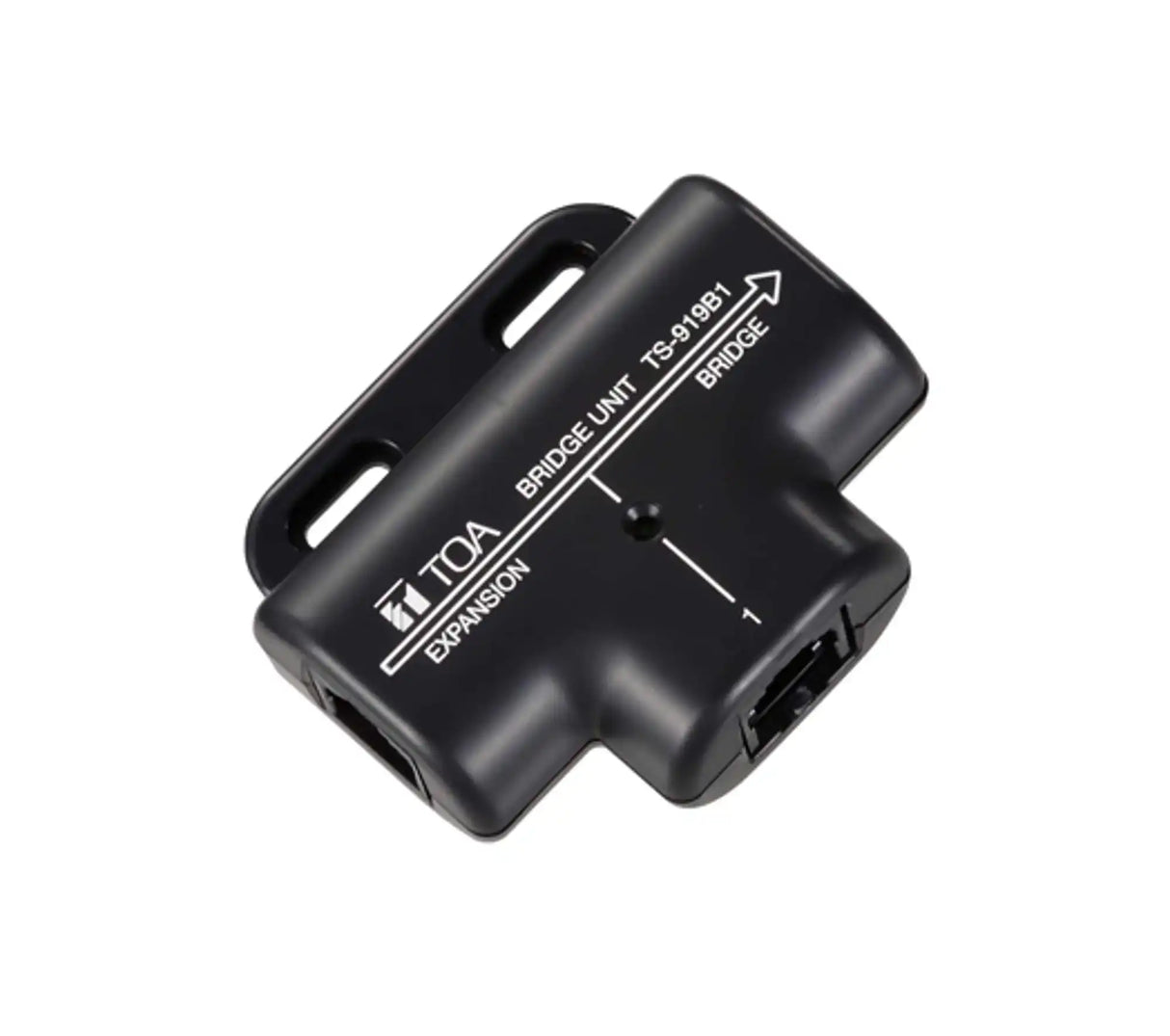

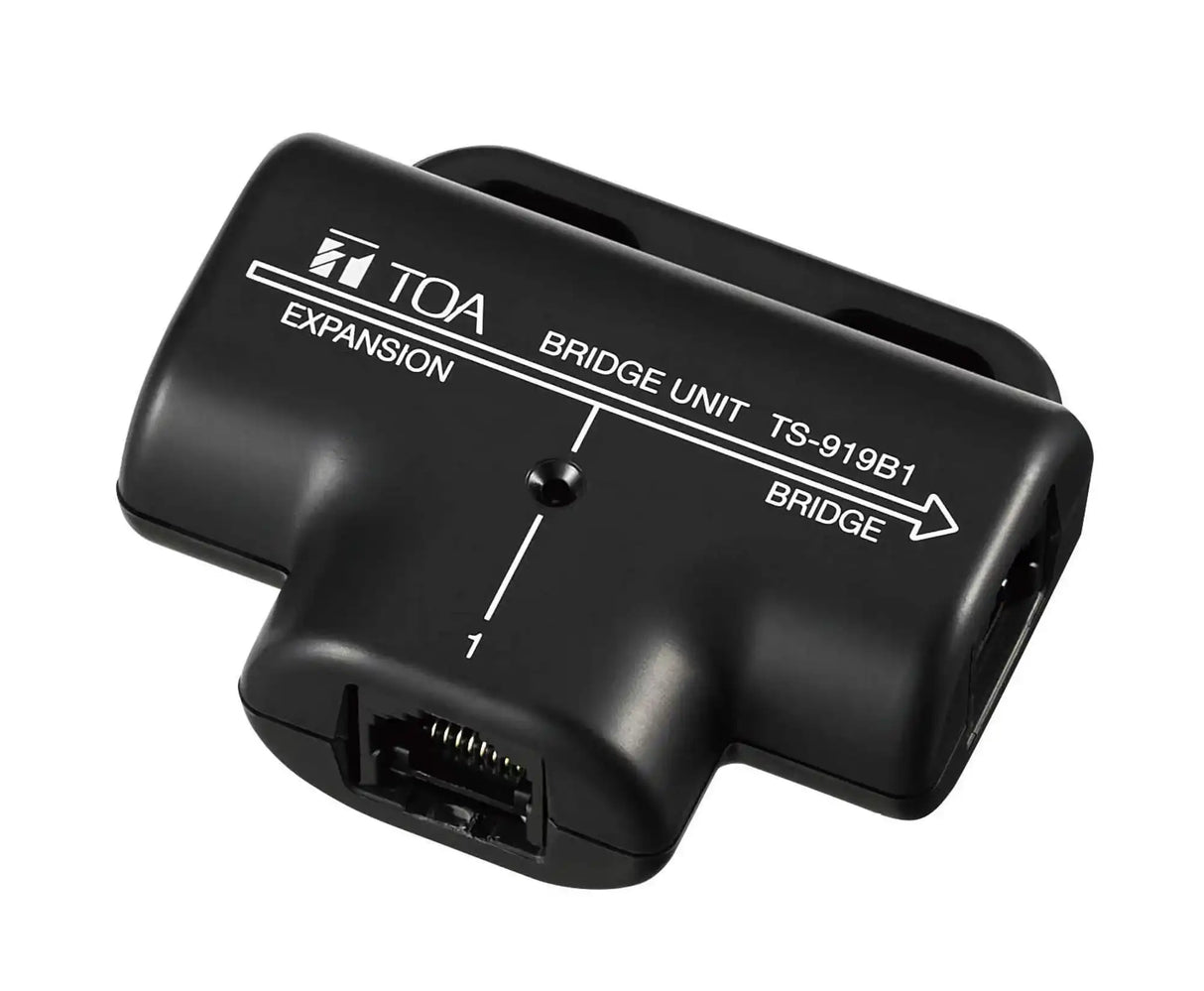

The TOA TS-919B1 is a single-unit bridge module for the TS-910 digital conference system. It allows one wired conference unit—either the TS-811/TS-911 chairman unit or the TS-812/TS-912 delegate unit—to connect to a TS-910 system that otherwise uses wireless conference units. The bridge connects to the conference system controller via standard Cat 5 cable through its RJ45 ports, and the wired unit connects to the remaining RJ45 port, making it straightforward to add a permanent wired position to a predominantly wireless conference room setup.
Key Features
- Connects one wired TS-811, TS-911, TS-812, or TS-912 conference unit to a TS-910 wireless conference system
- Three RJ45 ports: two for Cat 5 daisy-chain connection, one for the wired conference unit
- Powered by the TS-910 system controller via Cat 5; no separate power supply required
- Compact ABS black enclosure: 68 × 60.3 × 24 mm, 40 g
- Operates over 0–40°C; suitable for permanent conference room installation
Technical Specifications
| Power Supply | 24 V DC (from system controller via Cat 5) |
|---|---|
| Current Consumption | 16 mA max |
| Branching Loss (Upstream) | 16.5 dB |
| Branching Loss (Downstream) | 16 dB |
| Insertion Loss (Upstream) | 1 dB |
| Insertion Loss (Downstream) | 0.5 dB |
| Connectors | 3 × RJ45 |
| Enclosure | ABS, black |
| Dimensions | 68 × 60.3 × 24 mm (2.68″ × 2.37″ × 0.94″) |
| Weight | 40 g (0.09 lb) |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
