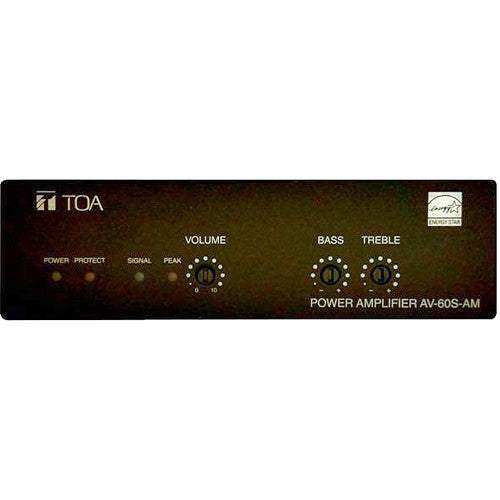

TOA Electronics Single-Channel Micro Install Amplifier - AV-60S-AM
Overview
The TOA AV-60S-AM is a 60 W single-channel Class-D micro amplifier designed for concealed installation in plenum air-handling spaces without an external power adapter. UL 2043-tested and Energy Star 3.0-certified, it fits in boardrooms, conference rooms, and AV signage installations where a full-size rack amplifier would be impractical.
Description
The AV-60S-AM's compact metal chassis (150 × 44 × 156 mm, 1.12 kg) enables flush installation inside ceilings or walls — directly in the air handling space — simplifying wiring and eliminating the need for a dedicated equipment room. A switching power supply accepts 100–240 V AC worldwide, and the Energy Star-rated automatic power save function reduces consumption to under 1 W in standby. Three line inputs are provided: a transformer-balanced terminal block (Line 1), a 3.5 mm stereo jack (Line 2), and RCA jacks (Line 3), each with selectable −10/−20 dBm sensitivity. Output switches between 70 V (for 70V distributed speaker lines) and 4 Ω (for direct-drive applications). Bass and treble tone controls, a remote volume control port, and clip limiting complete the feature set.
Key Features
- 60 W Class-D output at 70 V or 4 Ω (switch selectable)
- UL 2043-rated for plenum/air-handling space installation — no external enclosure required
- Energy Star 3.0 certified with auto standby (under 1 W in power save mode)
- Universal 100–240 V AC switching power supply
- 3 line inputs: transformer-balanced terminal block, 3.5 mm TRS, RCA
- Input sensitivity selectable −10/−20 dBm per input
- Bass ±10 dB at 100 Hz; Treble ±10 dB at 10 kHz tone controls
- Remote volume control port (10 kΩ pot)
- Clip limiter prevents overload distortion
- Compact: 150 × 44 × 156 mm, 1.12 kg
Typical Applications
- Boardrooms and executive conference rooms requiring concealed amplification
- Digital signage audio in retail and corporate environments
- Classroom and training room amplification in plenum ceiling spaces
- Hotel guestroom or meeting room distributed audio
- Healthcare and education facility zone amplification
Technical Specifications
| Rated Output | 60 W @ 70 V; 60 W @ 4 Ω |
|---|---|
| Power Source | 100–240 V AC, 50/60 Hz |
| Power Consumption | Rated: <85 W (70V), <110 W (4Ω) | Idle: <10 W (70V) | Standby: <1 W |
| Frequency Response | 4Ω: 20 Hz – 20 kHz ±3 dB | 70V: 60 Hz – 20 kHz ±3 dB |
| THD+N | <0.15% |
| Line Input 1 | −10/−20 dBm (sel.), 10 kΩ, transformer-balanced, removable terminal block |
| Line Input 2 | −10/−20 dBm (sel.), 10 kΩ, unbalanced, 3.5 mm stereo jack |
| Line Input 3 | −10/−20 dBm (sel.), 10 kΩ, unbalanced, RCA jacks |
| Output | Speaker, removable terminal block (2P) |
| Tone Control | Bass ±10 dB @ 100 Hz; Treble ±10 dB @ 10 kHz |
| Remote Volume | 10 kΩ external potentiometer port |
| Operating Temperature | −10 to +40°C |
| Dimensions | 150 × 44 × 156 mm (5.90" × 1.73" × 6.14") |
| Weight | 1.12 kg (2.5 lbs) |
| Certifications | UL 2043, Energy Star 3.0 |
FAQ
Does the AV-60S-AM require an external AC adapter?
No. The AV-60S-AM has a built-in switching power supply that accepts 100–240 V AC directly, eliminating the need for a separate adapter or power conditioner.
What does UL 2043 plenum rating mean for installation?
UL 2043 certification means the AV-60S-AM can be installed directly in air-handling spaces (plenum ceilings) without a separate rated enclosure. This is required by fire code in many commercial building jurisdictions.
Can it drive 70V distributed speaker lines?
Yes. The output switch selects between 70V constant-voltage mode for transformer-tapped distributed speakers and 4Ω direct-drive mode. It is not rated for 100V operation.
How does the remote volume control port work?
Connect a standard 10 kΩ potentiometer to the remote volume port to provide wall-panel or desktop level control without accessing the amplifier directly.
