TOA Electronics Rigging Bar for Type S Speaker - SR-FB4
Overview

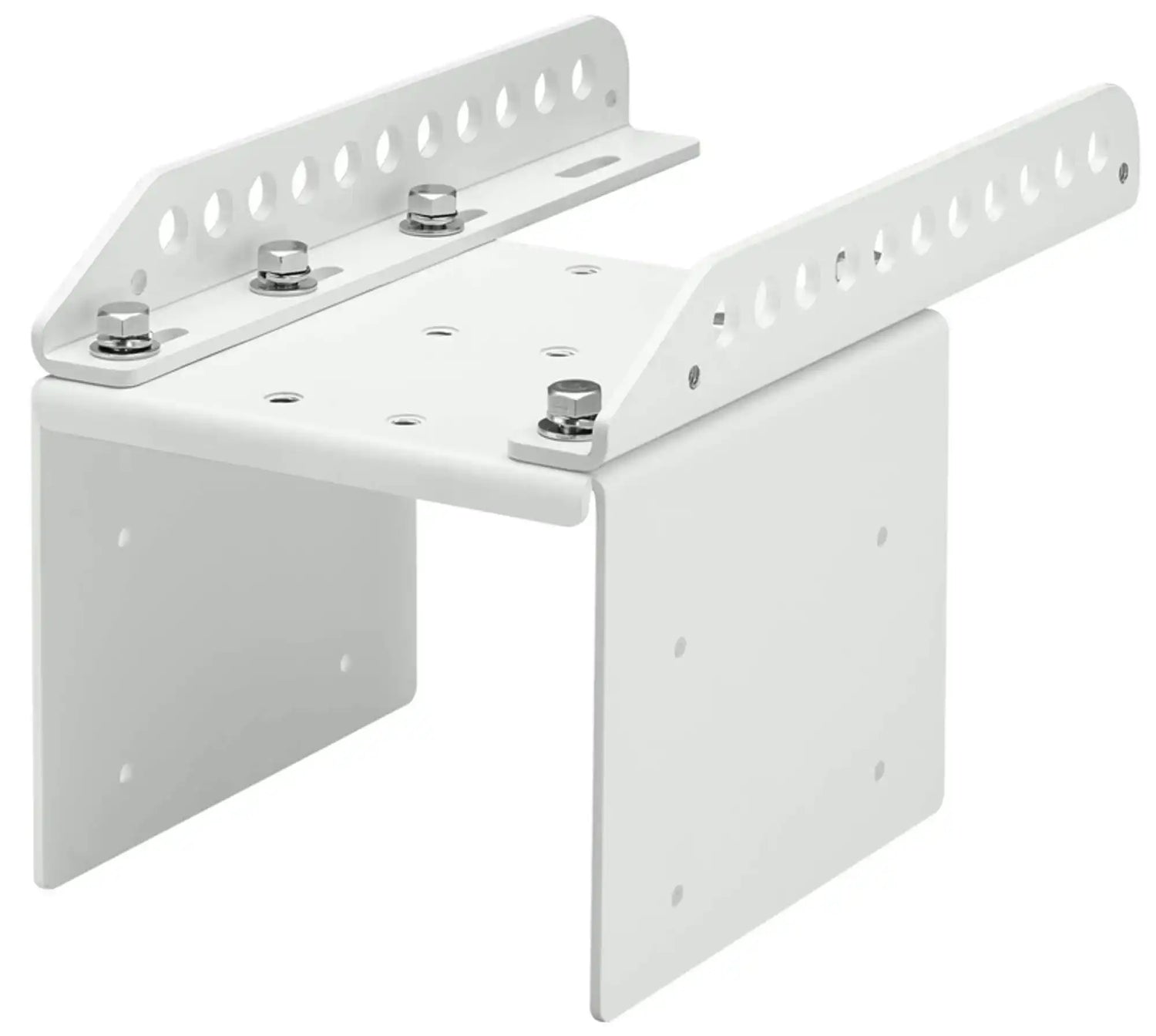

DEAL: On Sale — The TOA SR-FB4 is a steel flying bracket (rigging bar) designed to suspend the SR-S4L or SR-S4S slim line array speaker systems from ceilings and structural rigging points. Using the optional SR-EP4 extension plate, up to three SR-S4L or SR-S4S speakers can be joined and suspended as a single flown array. For indoor use only.
Description
The SR-FB4 assembly consists of suspension bracket A, suspension bracket B, and a speaker mounting bracket, joined with the included M8 suspension bracket mounting screws and M5 speaker mounting screws. The adjustable suspension holes allow the downward angle of the array to be set during installation for optimal coverage. Total assembly weight is 2.9 kg. The white painted steel finish matches the standard white finish of the SR-S4L/SR-S4S speakers. For configurations of more than one speaker, the SR-EP4 extension plate (sold separately) allows linking additional units to the suspended array.
Key Features
- Suspends SR-S4L and SR-S4S — The correct flying bracket for indoor ceiling suspension of TOA Line Array Type S speakers.
- Up to 3 speakers per bracket — When combined with the optional SR-EP4 extension plate, suspends up to three SR-S4L/SR-S4S units in a single flown array.
- Adjustable downward angle — Multiple suspension hole positions allow installation angle to be set for optimal sound coverage.
- Complete hardware included — Suspension bracket screws (M8 ×6), speaker mounting screws (M5 ×8), and assembling hardware included.
- White steel construction — Steel plate with white paint finish to match SR-S4L/SR-S4S speaker aesthetics.
Technical Specifications
| Specification | Detail |
|---|---|
| Compatible Speakers | SR-S4L, SR-S4S |
| Max Speakers (with SR-EP4) | 3 |
| Finish | Steel plate, white, paint |
| Dimensions (complete assembly) | 168 (W) × 170 (H) × 284 (D) mm |
| Weight | 2.9 kg (including accessories) |
| Product Composition | Suspension bracket A ×1, Suspension bracket B ×1, Speaker mounting bracket ×1 |
| Included Accessories | Suspension bracket mounting screw M8 (upset) ×6, Speaker mounting screw M5 (upset) ×8, Assembling screw ×2, Assembling washer ×1 set |
| Optional Accessories | Extension plate: SR-EP4 |
| Installation | Indoor use only |
