TOA Electronics Remote Paging Microphone for Up To 12 Zones - Q-RM9012PS

Overview

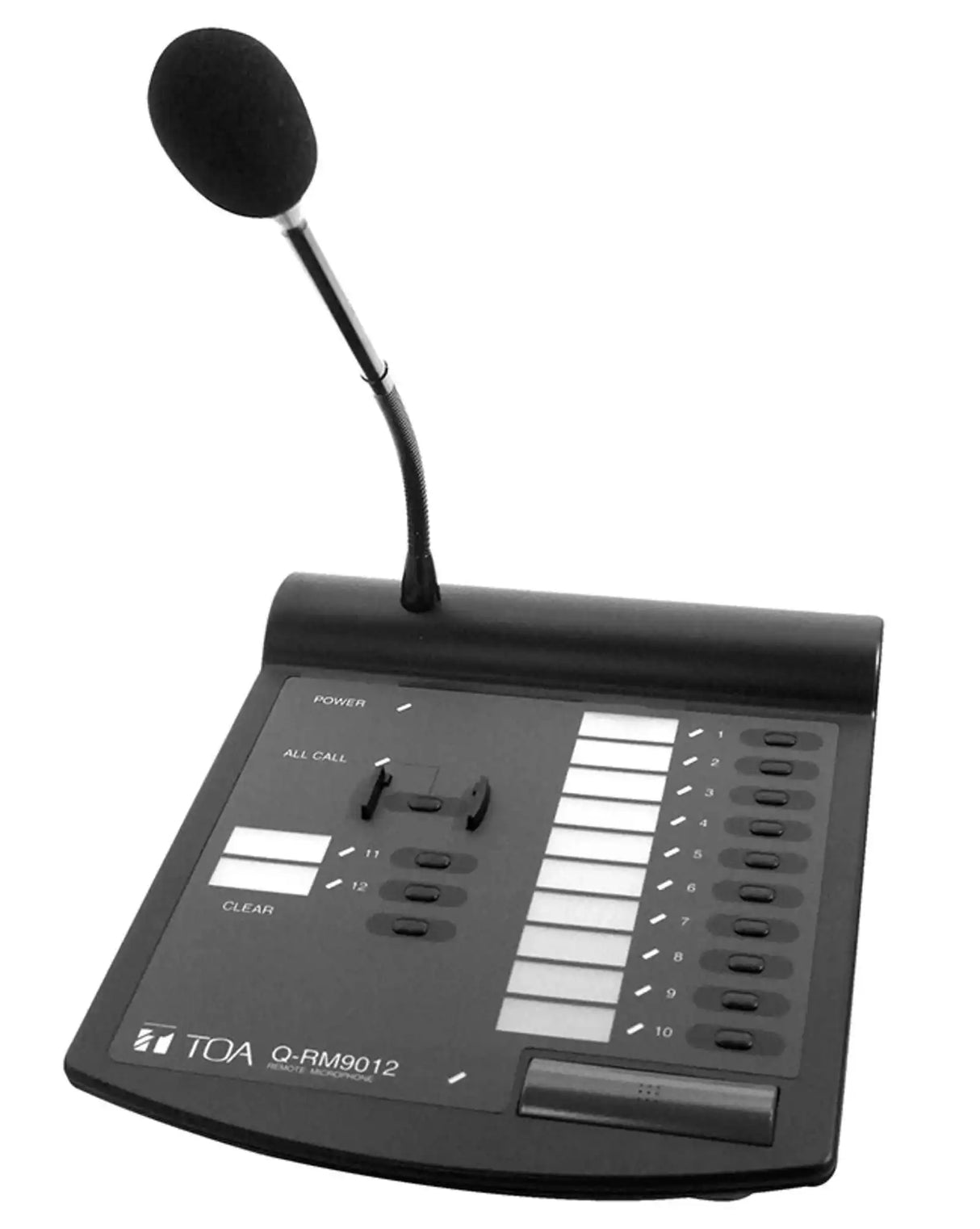

The TOA Q-RM9012PS is a 12-zone remote paging microphone for use with the TOA 9000M2 Series Mixer Amplifiers and compatible paging equipment. A gooseneck electret condenser capsule delivers balanced audio, while 12 independent zone-select keys and an all-call button provide full zone paging control from a single desktop unit.

Description

The Q-RM9012PS connects to the 9000M2 system via its balanced audio output and contact closure outputs, both carried on RJ45 connectors. When the operator presses a zone key and the talk key, the microphone sends a balanced audio signal and activates the corresponding open-collector zone closure to initiate paging in the selected zone(s). Zones can be selected individually, in custom combinations, or all at once using the all-call button. A cancel key clears all zone selections. Power is provided by a 24V DC adapter (AD-246, required, sold separately). The gooseneck microphone provides clear, directional pickup for operator voice at the desktop. Dimensions are 190 × 76.5 × 215 mm excluding the gooseneck.

Key Features

• Up to 12-zone paging — individual zone, group, or all-call selection
• Unidirectional gooseneck electret condenser microphone
• Balanced audio output: 0 dB, 600 Ω, RJ45 connector
• 12-channel open-collector contact closure outputs: (2) RJ45 connectors; up to 27 VDC / 50 mA per channel
• Talk key, zone select keys (×12), all-call key, and cancel key
• 24 VDC powered via AD-246 adapter (sold separately)
• Frequency response: 100 Hz – 20 kHz
• Compatible with TOA 9000M2 Series Mixer Amplifiers

Typical Applications

• 12-zone paging in offices, hospitals, schools, and warehouses
• Emergency announcement and evacuation zone control
• Retail and hospitality multi-zone public address systems
• Transportation facility and logistics hub zone paging
• Campus and multi-building TOA 9000M2-based paging networks

Technical Specifications

FAQ

Is the AD-246 power supply included with the Q-RM9012PS?
No. The AD-246 AC adapter is a required accessory sold separately. Contact Creation Networks to add it to your order.

Can zones be selected in groups, or only one at a time?
Zone selections can be made individually, in any combination of multiple zones, or all at once using the all-call key — giving the operator full flexibility for each announcement.

How many Q-RM9012PS units can be connected to one 9000M2 system?
This depends on the specific 9000M2 model and its paging input configuration. Contact Creation Networks for system design guidance.

Is the Q-RM9012PS compatible with TOA systems other than the 9000M2?
The Q-RM9012PS is optimized for TOA 9000M2 Series equipment. Compatibility with other paging systems depends on whether the system accepts balanced audio plus open-collector zone control inputs via RJ45 — consult the target system's documentation.
