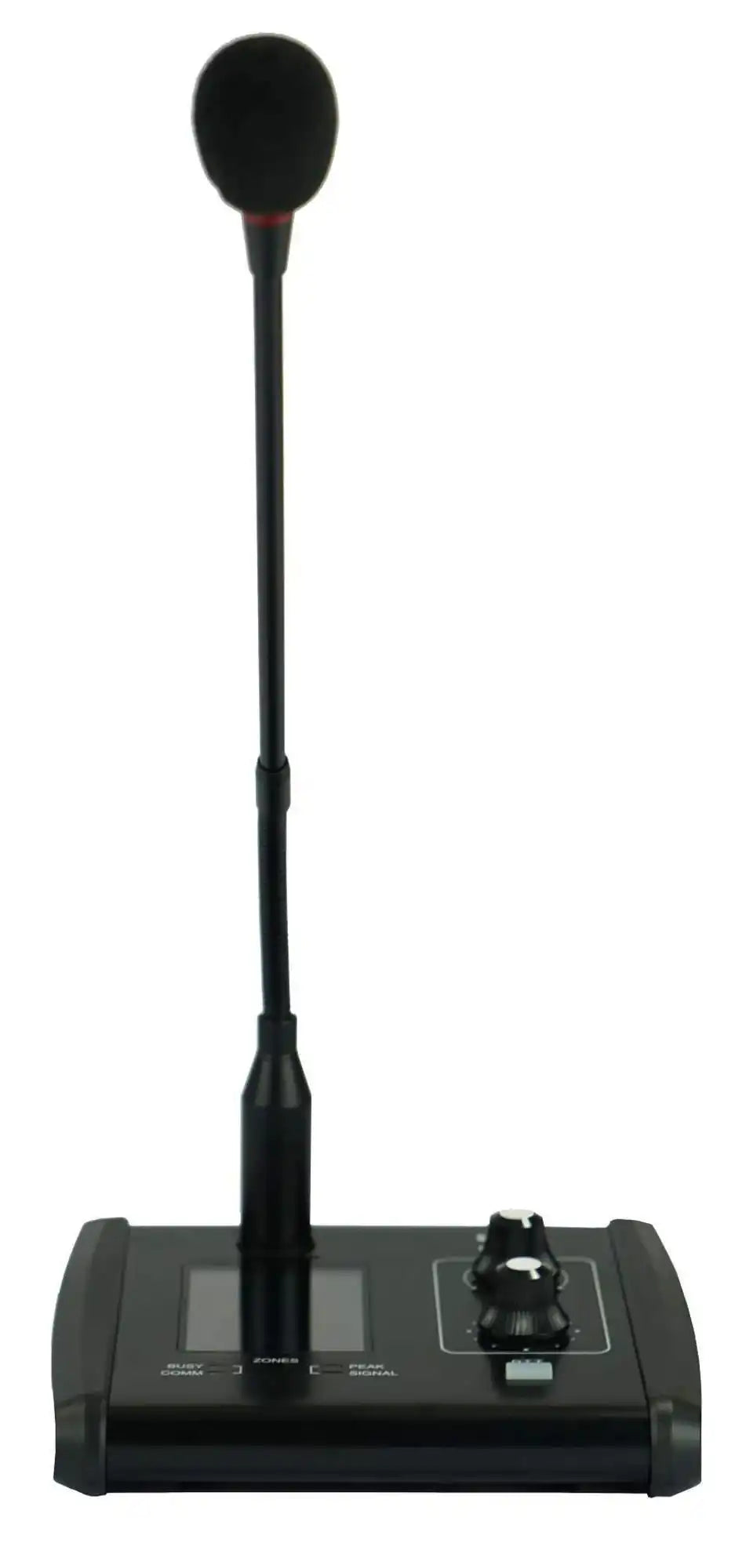

TOA M-800RM-AM Remote Microphone Station
Overview
The TOA M-800RM-AM is a push-to-talk remote microphone station designed exclusively for the TOA M-8080D Digital Matrix Mixer system. It enables staff at distributed locations to make zone-specific paging announcements with precise control over destination zones, chime playback, and volume.
Description
The M-800RM-AM connects to the M-8080D or M-804EX expansion unit via an RD Port (RJ45), transmitting AES3 digital audio and system control data over a single cable. The gooseneck microphone features a push-to-talk mechanism, and the front panel includes a zone selector and volume control knob. An LCD display shows the unit ID, active zone, and volume level. A USB port allows loading custom chime sound files, and LED indicators provide at-a-glance status. The unit receives 24V DC power directly from the M-8080D or M-804EX — no separate power supply needed.
Key Features
- Designed exclusively for the TOA M-8080D Digital Matrix Mixer system
- Supports paging to up to 12 independent destination zones
- AES3 digital audio and control data via RJ45 RD Port
- LCD display showing unit ID, zone selection, and volume level
- USB port for loading custom chime sound files
- 24V DC powered directly from M-8080D or M-804EX — no external power supply
- Status and communication LED indicators
- Push-to-talk gooseneck microphone with zone selector and volume control
- Black surface-treated steel plate construction; weight: 0.8 kg
Typical Applications
- Corporate reception desks and front-of-house paging stations
- Retail stores with multi-zone background music and paging systems
- Hospitals and healthcare facilities with zone-specific announcement needs
- Warehouses and logistics centers requiring distributed microphone stations
- Hotels and hospitality venues with M-8080D-based audio systems
- Conference centers with multiple paging zones
Technical Specifications
| Specification | Value |
|---|---|
| Compatible System | TOA M-8080D Digital Matrix Mixer / M-804EX |
| Port | RD Port (RJ45) — AES3 digital audio + control |
| Zone Control | Up to 12 destination zones |
| Power Supply | 24V DC (supplied by M-8080D or M-804EX) |
| Display | LCD (unit ID, volume, zone selection) |
| USB | 1x (chime sound file loading) |
| Microphone | Push-to-talk gooseneck type |
| Indicators | Status LED, Communication LED |
| Weight | 0.8 kg |
| Finish | Surface-treated steel plate, painted black |
Frequently Asked Questions
Can the M-800RM-AM be used with other TOA amplifiers?
No. The M-800RM-AM is designed exclusively for use with the TOA M-8080D Digital Matrix Mixer and its M-804EX expansion unit. It is not compatible with other TOA amplifier or mixer models.
How many M-800RM-AM units can be connected to one M-8080D?
The M-8080D supports multiple RD Port connections. Refer to the M-8080D system documentation for the maximum number of remote microphone units supported per configuration.
Can I load custom chimes or tones?
Yes. The M-800RM-AM includes a USB port for loading custom chime or tone sound files, enabling tailored announcements to match your facility's operational requirements.
How is the M-800RM-AM powered?
Power is supplied directly from the M-8080D or M-804EX unit over the RD Port connection at 24V DC. No separate power adapter is required at the microphone station.
