TOA Electronics Remote Control Panel - M-800RCB-AM

Product Overview

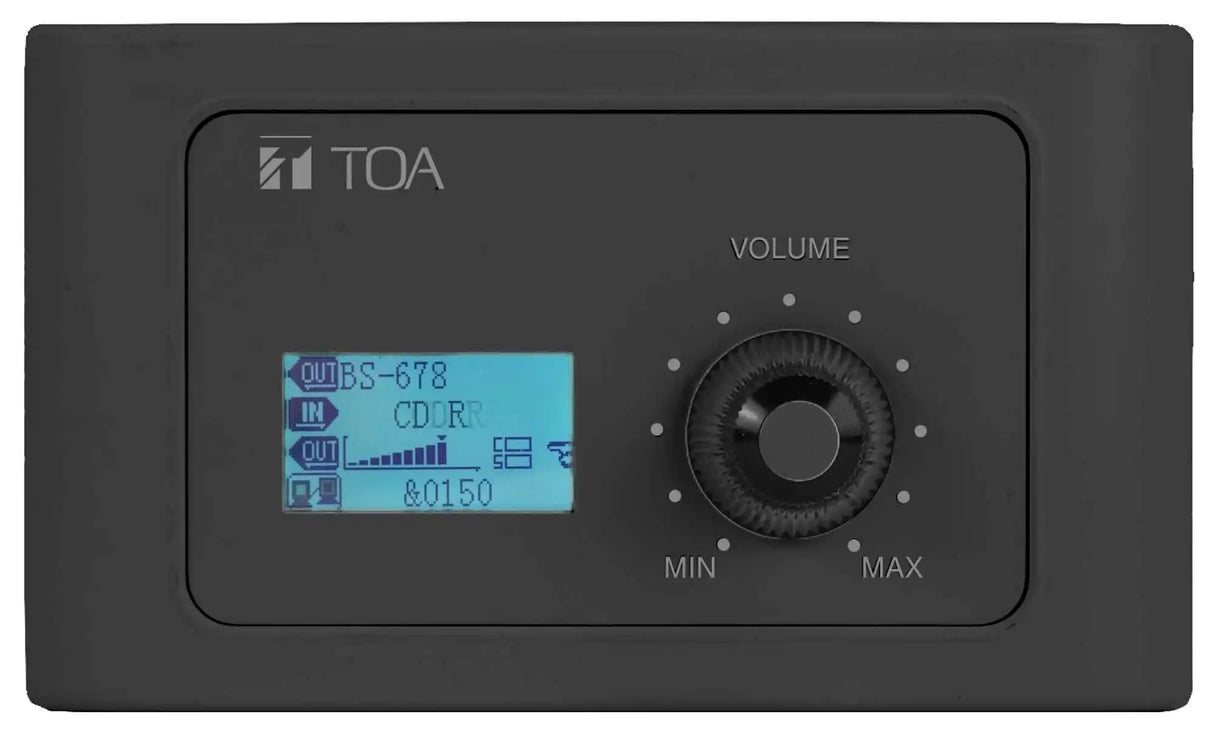

The TOA M-800RCB-AM is a remote audio control panel with a physical volume/routing control knob for the TOA M-8080D Digital Matrix Mixer System. It provides hands-on level adjustment and signal routing from any wall-mount location in a conference room, boardroom, or commercial AV installation — without requiring a touch screen or PC-based control interface.

Product Description

The M-800RCB-AM connects directly to the M-8080D via its RD (Remote Digital) port, receiving both data communication and operating power over a single shielded CAT 5e or better cable up to 100 m (328 ft) — no separate power supply is required at the panel. The control knob adjusts output volume or routes signals depending on system configuration, while the integrated LCD screen displays the current output level for clear operator feedback. A LINK port enables daisy-chain connection of additional panels along the same cable run, reducing wiring complexity in multi-panel installations. All RD port connections must use shielded CAT 5e or better cables with shielded connectors. The optional M-800FPB surface mounting panel supports flush in-wall installation. Explore the full TOA M-8080D System at Creation Networks.

Key Features

• Physical Rotary Control Knob — Tactile rotary control for intuitive volume adjustment and signal routing from any wall-mount station.
• LCD Output Level Display — Real-time visual feedback of current output level without requiring a separate monitoring device.
• Direct Power via Network Cable — Receives operating power from the M-8080D over the CAT 5e cable — no separate panel power supply needed.
• RD Port IN Connection — Standard RD port interface for direct connection to the M-8080D Digital Matrix Mixer.
• RD Port LINK for Daisy-Chain — LINK port enables multiple panels on a single cable run, reducing installation wiring.
• Up to 100 m Cable Run — Supports panel placement up to 100 m (328 ft) from the M-8080D using shielded CAT 5e or better.
• Optional Flush-Mount Panel Available — Compatible with optional M-800FPB surface mounting panel for clean in-wall installation.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Government space
• Multi-purpose room
• Training room

Technical Specifications

Frequently Asked Questions

Is the M-800RCB-AM compatible with all TOA amplifiers? No — it is designed exclusively for the TOA M-8080D Digital Matrix Mixer System and connects via the RD port.

Does it need a separate power supply? No — it receives power directly from the M-8080D over the CAT 5e cable via the RD port.

What cable is required? Shielded CAT 5e or better cable with shielded connectors, up to 100 m.

Can multiple panels share a single cable run? Yes — the LINK port enables daisy-chain connection of additional M-800RCB-AM or compatible panels.

Can it be flush-mounted? Yes — the optional M-800FPB surface mounting panel supports in-wall flush installation.

Is a network router required? Yes — a network router is required to configure and operate the M-8080D system. All RD connections must use shielded CAT 5e or better.

What warranty applies? Carries the TOA manufacturer warranty. Contact Creation Networks for support and M-8080D system design assistance.
