TOA Electronics Remote Control Panel - M-800RC-AM
Product Overview

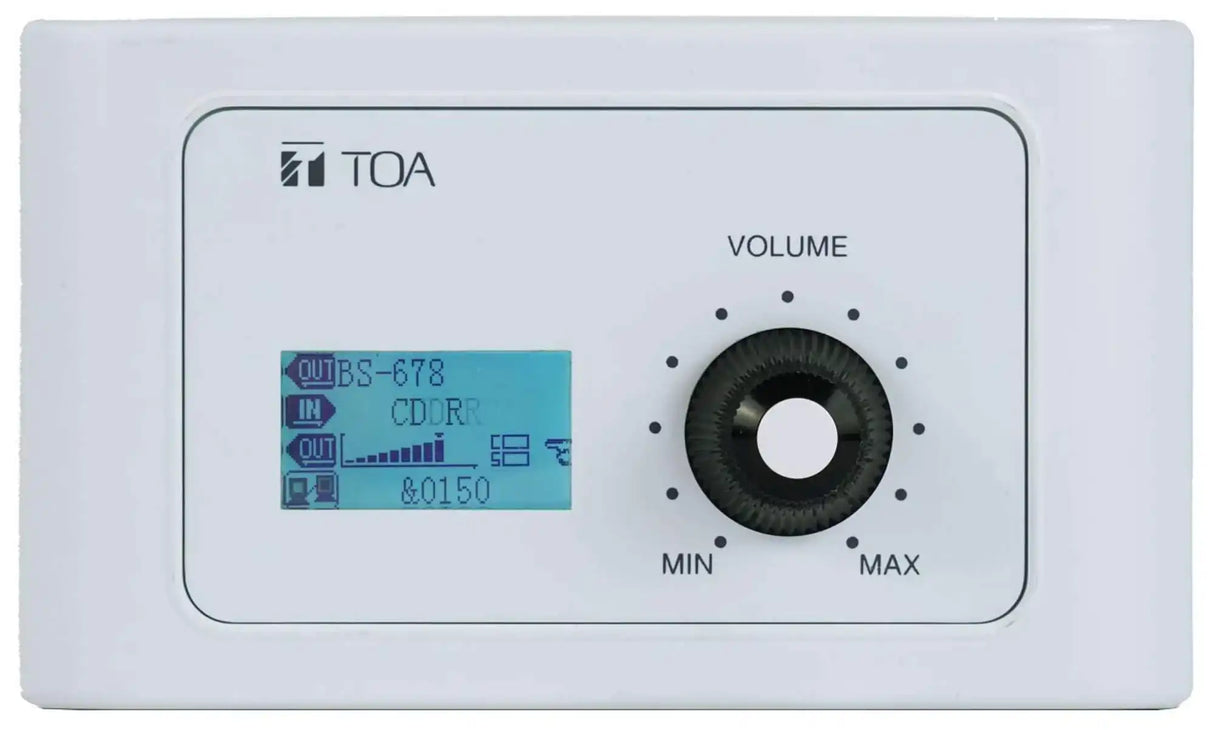

The TOA M-800RC-AM is a remote audio control panel designed exclusively for use with the TOA M-8080D Digital Matrix Mixer. It provides volume and signal routing control via a single rotary knob, with an LCD screen displaying output levels for clear operator feedback. Power is supplied directly over the network cable, eliminating the need for a separate power supply and simplifying installation in conference rooms, corporate facilities, and distributed audio environments.
Product Description
The M-800RC-AM connects to the M-8080D via shielded Category 5e or higher cable through the RD port, allowing placement at any convenient user location up to 100 meters from the host mixer. Multiple panels can be daisy-chained via the RD port LINK connection for distributed control across multiple rooms or positions. The LCD screen with output level display gives operators real-time visual feedback on signal levels, while the volume/routing knob provides intuitive control over the M-8080D's matrix functions. A network router is required for the M-8080D system setup; the M-800RC-AM itself connects directly via the RD port with no additional configuration.
Key Features
| Feature | Benefit |
|---|---|
| Volume/Routing Control Knob | Provides intuitive single-knob control of M-8080D output levels and signal routing |
| LCD Screen with Output Level Display | Delivers real-time visual feedback on signal levels for confident operation |
| Power Over Network Cable (PoE) | Eliminates need for a separate power supply, simplifying installation |
| RD Port IN | Direct connection to M-8080D for reliable system integration |
| RD Port LINK (Daisy Chain) | Enables multiple control panels to share a single connection path to the mixer |
| Up to 100M Cable Run | Allows panel placement up to 100 meters from the M-8080D for flexible room layouts |
Typical Applications
The M-800RC-AM is well suited for corporate conference rooms requiring localized volume and routing control independent of the AV rack, multi-room facilities using the M-8080D as a central matrix mixer, education and training centers needing decentralized audio control at lecterns or tables, hospitality environments with distributed zones controlled from front-of-house positions, and government or broadcast facilities with complex audio routing managed from multiple control points.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TOA M-800RC-AM |
| Compatible System | TOA M-8080D Digital Matrix Mixer (exclusive) |
| Control | Volume/routing control knob |
| Display | LCD screen with output level display |
| Power Supply | Direct via network cable (PoE) |
| Connection (Input) | RD port IN — shielded Cat 5e or higher (to M-8080D) |
| Connection (Output) | RD port LINK — daisy chain to additional panels |
| Maximum Cable Length | 100 m (shielded Cat 5e or higher) |
| Network Requirement | Network router required for M-8080D system setup |
| Optional Accessory | M-800FPW surface mounting panel |
FAQ
- What is the M-800RC-AM compatible with? It is designed exclusively for use with the TOA M-8080D Digital Matrix Mixer and is not compatible with other systems.
- Does it require a separate power supply? No. Power is supplied directly over the network cable from the M-8080D, eliminating external power adapters at the panel location.
- What cable type is required? Shielded Category 5e cable or higher with shielded connectors is required for all RD port connections.
- Can multiple M-800RC-AM panels be used? Yes. Multiple panels can be daisy-chained via the RD port LINK connection for distributed control at several locations.
- Is a network router required? A network router is required for the M-8080D system setup; the M-800RC-AM connects to the M-8080D via the dedicated RD port.
- Is surface mounting hardware available? Yes, the optional M-800FPW surface mounting panel is available for desktop or surface installation.
