TOA Electronics Remote Control Module Kit - RC-001TPS
Product Overview

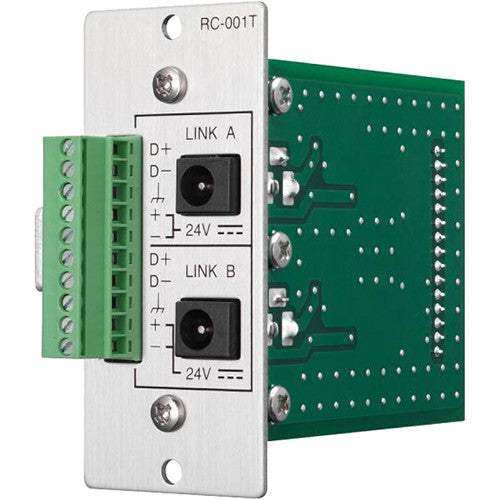

The TOA RC-001TPS is a pre-packaged RS-485 Remote Control Module Kit for the M-9000M2 Digital Matrix Mixer/Amplifier Series, bundled with the AD-246 power supply. It serves as the interface between an M-9000M2 Series amplifier frame and up to 16 TOA RS-485 remote control panels (ZM-9011, ZM-9012, ZM-9013, or ZM-9014), enabling distributed volume, routing, and zone control from wall-mount stations throughout a facility.
Product Description
The RC-001TPS provides two independent RS-485 data links — Link A and Link B — each supporting up to 8 remote control panels, for a total of 16 panels per module. Bidirectional RS-485 communication delivers both control commands from wall panels to the amplifier and status feedback (current levels, routing state) back to the panel displays, giving operators real-time system visibility from any station. The module supports cable runs up to 800 m (874 yd) using shielded CPEV paired cable or shielded CAT 5 (or better) LAN cable, making it suitable for large campus, government, and multi-floor commercial deployments. The included AD-246 24 VDC power supply also feeds power to connected remote control panels over the data cable. Explore the full TOA 9000M2 Series at Creation Networks.
Key Features
- Dual RS-485 Links (Link A + Link B) — Two independent data ports each support up to 8 remote control panels, for 16 panels total per module.
- Bidirectional RS-485 Communication — Sends control commands to the amplifier and returns real-time status feedback to wall-panel displays.
- Up to 800 m Cable Run — Long-distance data transmission supports large campus, multi-floor, and government facility deployments.
- Includes AD-246 Power Supply — Kit includes the required 24 VDC adapter; powers the module and connected remote control panels over the data cable.
- Compatible with ZM-9011/9012/9013/9014 Panels — Works with TOA's full range of RS-485 remote control wall panels for flexible zone management.
- Plug-In Module Format — Installs directly into the M-9000M2 amplifier frame without external mounting hardware.
- Shielded Cable Support — Works with shielded CPEV or shielded CAT 5+ LAN cabling for noise-immune data transmission.
Typical Applications
- Government facility
- Commercial meeting space
- Multi-purpose room
- Conference center
- Training room
- Auditorium
- Multi-floor commercial building
Technical Specifications
| Model | TOA RC-001TPS |
|---|---|
| Compatible System | TOA M-9000M2 Digital Matrix Mixer/Amplifier Series |
| RS-485 Links | 2 (Link A and Link B), independent |
| Max Remote Panels per Link | 8 |
| Max Remote Panels Total | 16 |
| Compatible Panels | ZM-9011, ZM-9012, ZM-9013, ZM-9014 |
| Communication | Bidirectional RS-485 |
| Max Cable Length | 800 m (874 yd) |
| Compatible Cabling | Shielded CPEV or Shielded CAT 5 (or better) |
| Power Input | 24 VDC × 2 (via included AD-246 adapter) |
| Kit Contents | RC-001T module + AD-246 24 VDC power supply |
| Dimensions | 35 (W) × 78 (H) × 92 (D) mm (1.38″ × 3.07″ × 3.62″) |
| Weight | 80 g (2.8 oz) |
| Operating Temperature | –10 °C to +40 °C (14 °F to 104 °F) |
| Operating Humidity | 35% to 80% RH (non-condensing) |
Frequently Asked Questions
How many remote control panels can one RC-001TPS support? Up to 16 panels total — 8 on Link A and 8 on Link B — using any combination of ZM-9011, ZM-9012, ZM-9013, or ZM-9014 panels.
What is included in the kit? The RC-001T module and the AD-246 24 VDC power supply adapter.
What cabling is required? Shielded CPEV paired cable or shielded CAT 5 (or better) LAN cable, up to 800 m per link.
Does it provide feedback to wall panels? Yes — bidirectional RS-485 communication returns real-time status (levels, routing state) to panel displays.
Can multiple RC-001T modules be installed per system? Yes — additional modules can be added to the M-9000M2 frame if more than 16 remote panels are needed.
Does the power supply power the remote panels too? Yes — the AD-246 provides 24 VDC that feeds through the cable to power the connected remote control panels.
What warranty applies? The RC-001TPS carries the TOA manufacturer warranty. Contact Creation Networks for support, system design, and 9000M2 Series accessories.
