TOA HY-PF1B – Pre-Install Ceiling Rigging Frame for HX-5
Product Overview
The TOA HY-PF1B is a pre-installation ceiling rigging frame for HX-5 series variable dispersion array speakers, designed for indoor use. It allows the mounting bracket to be installed and pre-wired before the speaker arrives on site, reducing overhead installation time.
Product Description

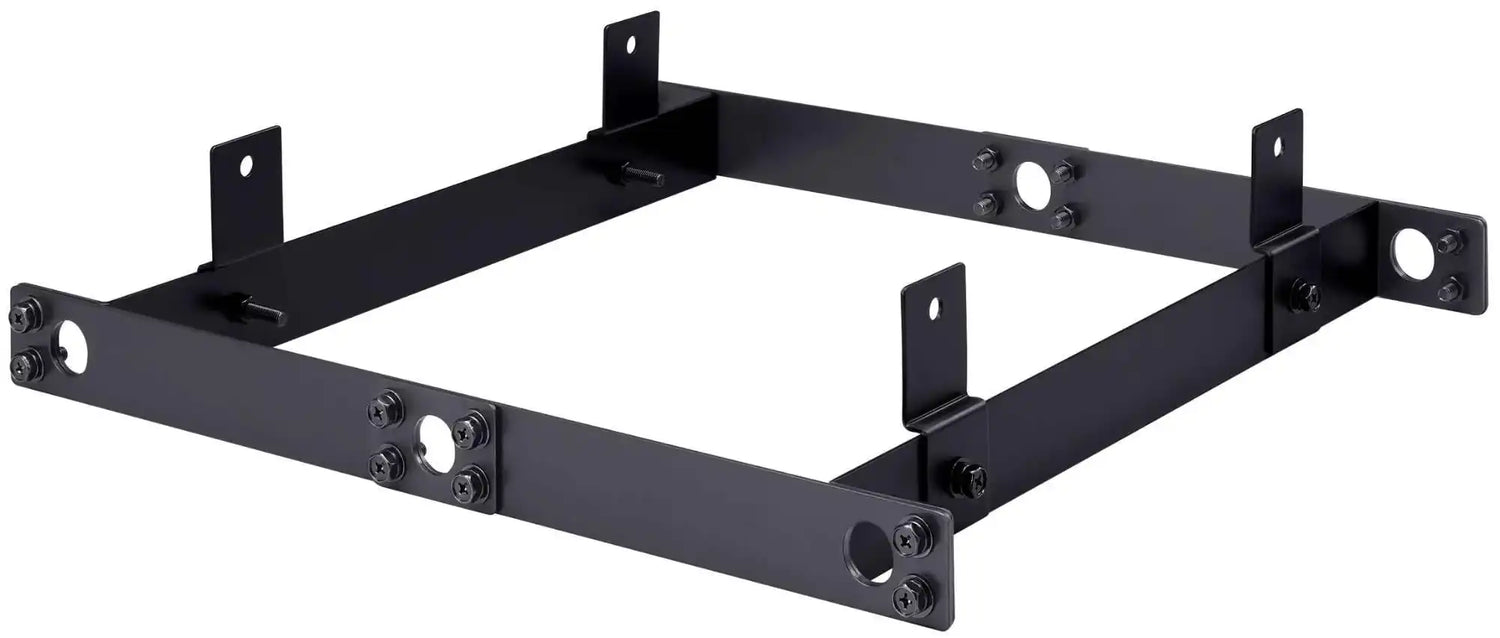

The HY-PF1B is constructed from steel plate with a black, semi-gloss finish. At 550 mm wide and 512 mm deep, it accommodates the HX-5 speaker footprint and includes mounting provisions for the FB-120 series subwoofer via the supplied subwoofer mounting brackets. All fastener hardware—bolts, washers, and nuts—is included. For weatherproof outdoor installations, see the companion HY-PF1WP frame. Available at creationnetworks.net.
Key Features
- Pre-install ceiling rigging frame for HX-5 series speakers (indoor use only)
- Steel plate construction with black semi-gloss finish
- Dimensions: 550 (W) × 50 (H) × 512 (D) mm; weight: 3.6 kg
- Compatible with FB-120 series subwoofer via included mounting brackets
- Includes subwoofer mounting brackets, M8 bolts, washers, and nuts
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Speakers | HX-5 series (indoor) |
| Material | Steel plate, black semi-gloss paint |
| Dimensions | 550 (W) × 50 (H) × 512 (D) mm |
| Weight | 3.6 kg |
| Included Hardware | 4× subwoofer mounting brackets, M8 bolts, washers, nuts |
