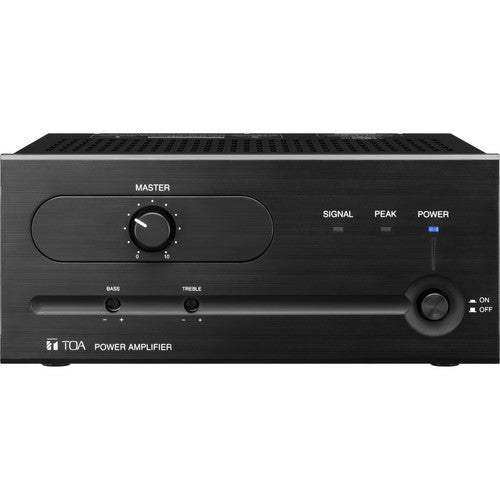

TOA BA-235 CU 35 W Background Music Power Amplifier - Line Input, 25 V / 70 V
TOA BA-235 CU 35 W Background Music Power Amplifier - Line Input, 25 V / 70 V is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
TOA BA-235 CU 35 W Background Music Power Amplifier - Line Input, 2...
Product Overview
The TOA BA-235 CU is a 35 W background music power amplifier built for distributed audio systems in retail, office, hospitality, and institutional environments. As a dedicated line-input-only power amplifier, it accepts a single unbalanced line-level source and distributes it across 25 V, 70 V, and 4 Ω output formats simultaneously. Input sensitivity is rear-panel selectable between 0 dB and +4 dB, allowing compatibility with both consumer and professional source equipment without a separate input attenuator.
Product Description
The BA-235 CU operates with 0.5% or less THD at rated output across the 50 Hz to 20 kHz frequency range, and output regulation is maintained within 2 dB from no load to full load — ensuring consistent audio level across varying speaker impedance loads throughout the day. Built-in protection circuitry monitors output current for overload conditions and disables the output stage when operating temperature exceeds 221°F (105°C), protecting both amplifier and connected speaker loads. Order the TOA BA-235 CU from Creation Networks.
Key Features
- 35 W output power
- Single unbalanced LINE input (10 kΩ) via terminal block and RCA jacks
- Input sensitivity selectable: 0 dB or +4 dB (rear panel)
- Simultaneous 25 V, 70 V, and 4 Ω balanced outputs via removable terminal block
- Frequency response: 50 Hz – 20 kHz at ≤0.5% THD
- Output regulation: <2 dB (no load to full load)
- Built-in current overload and thermal protection (>105°C / 221°F)
Technical Specifications
| Specification | Value |
|---|---|
| Rated Output Power | 35 W |
| Input | LINE (unbalanced), 10 kΩ, terminal block + RCA jacks |
| Input Sensitivity | 0 dB or +4 dB (rear panel selectable) |
| Outputs | 25 V, 70 V, 4 Ω balanced (removable terminal block) |
| Frequency Response | 50 Hz – 20 kHz |
| THD at Rated Output | 0.5% or less |
| Output Regulation | <2 dB (no load to full load) |
| Thermal Protection | Output disable above 221°F (105°C) |
