TOA Electronics Pendant Speaker - Q-PE-304BK

Regular price $169.00 Sale price $137.00
Shipping calculated at checkout.
TOA  |  SKU: Q-PE-304BK

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

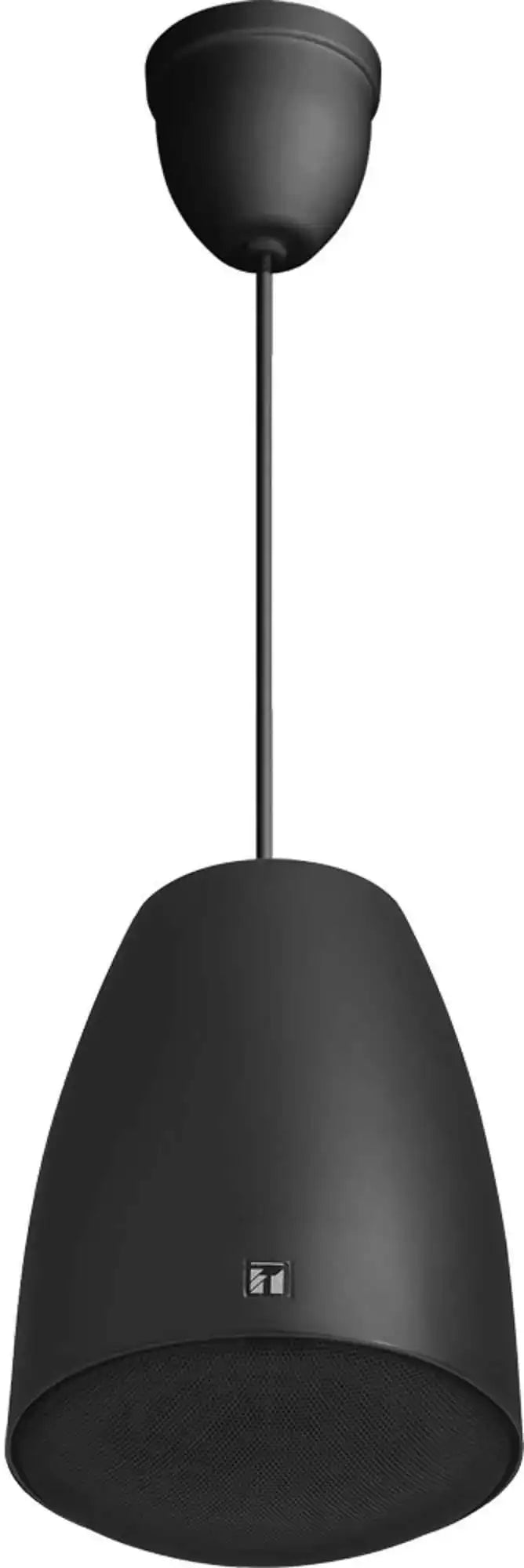

The Q-PE-304BK is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The Q-PE-304BK is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ohm) lines. The impedance can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.

Features
  • Ideally suited for BGM and announcements
  • Stylish and outstanding design inspired by the finest lighting fixtures
  • Excellent sound quality
  • Sturdy cable extendable up to 5 meters
  • Paintable
  • Input impedance easily changeable
  • Bass-reflex type
Specs
Enclosure
Bass-reflex type
Rated Input
30 W (100 V, 70 V line, 8 Ω)
Rated Impedance
100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
8 Ω
Sensitivity
91 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)
Frequency Response
70 - 20 kHz (peak -20 dB)
Speaker Component
12 cm (5") cone-type + balanced dome-tweeter
Speaker Cable
2-core cabtyre cord 5 m (16.4 ft)
Cable Requirements
600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: Ø0.8 - Ø1.6 mm (equivalent to AWG 20 - 14)
7-core twisted copper wire: 0.75 - 1.25 mm² (equivalent to AWG 18 - 16)
Connection
Push-in connector (bridging terminal-2 branch type)
Finish
Enclosure: HIPS resin, black
Grille: Surface-treated steel plate net, black, paint
Dimensions
Ø186 x 251 (H) mm (Ø7.32" x 9.88") (unit only)
Weight
2.1 kg (4.63 lb) (unit only)
Included Accessories
Ceiling bracket …1, Mounting hanger …1, Ceiling cover …1,
Speaker mounting screw (4 x 16)…4
