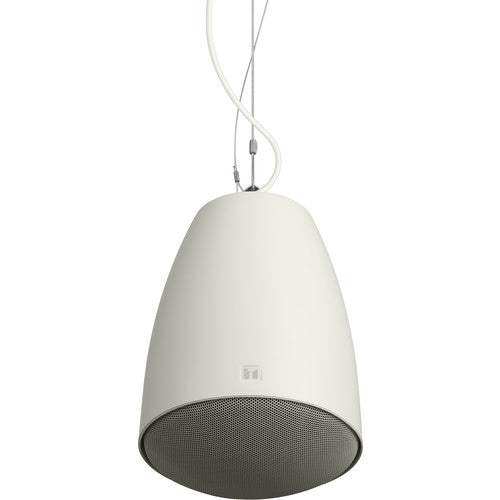

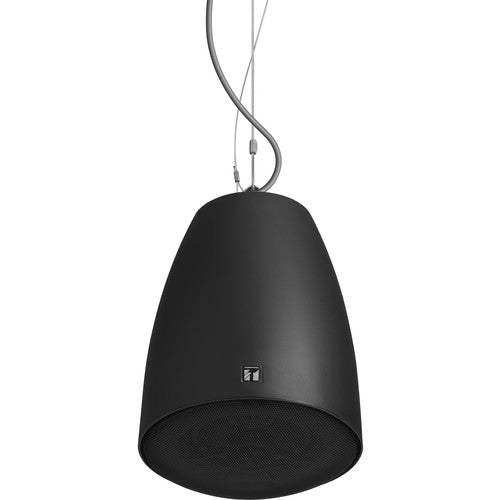

TOA Electronics PE-604U Pendant Speaker, UL1480 (Life Safety)
Overview
DEAL: On Sale — The TOA PE-604U is a UL 1480–certified pendant speaker designed for ceiling suspension in commercial paging, background music, and life safety notification systems. Its bass-reflex enclosure and coaxial driver deliver 90 dB sensitivity across a 95 Hz to 20 kHz frequency response, with multi-tap transformer support for 8 Ω, 25 V, 70 V, and 100 V line configurations.
Description
The PE-604U houses a 12 cm (5") coaxial cone driver with a balanced dome tweeter for extended high-frequency clarity. A rotary impedance selector on top of the speaker allows field adjustment between 100 V, 70 V, 25 V, and 8 Ω operation without rewiring. Pre-attached 4.6 m FPL-listed speaker cable, GRIPPLE® hanging wires, and a safety wire are included for code-compliant installation — eliminating the need for separate hardware. UL 1480 UUMW and ULC-S541 certifications qualify the PE-604U for life safety applications in both US and Canadian installations.
Key Features
- UL 1480 UUMW and ULC-S541 certified — Qualified for life safety (fire alarm) notification applications in the US and Canada.
- Multi-voltage transformer — Rotary switch selects 100 V, 70 V, 25 V, or 8 Ω operation at the speaker for easy system integration.
- Bass-reflex coaxial driver — 12 cm cone with dome tweeter delivers 90 dB sensitivity and 95 Hz–20 kHz (-10 dB) coverage.
- Installation-ready package — Pre-attached 4.6 m FPL cable, GRIPPLE® hangers, and safety wire included for fast, compliant ceiling suspension.
- 30 W rated input — Handles 30 W on 100 V and 70 V lines, 3.7 W on 25 V, for flexible distributed audio system design.
Technical Specifications
| Specification | Detail |
|---|---|
| Enclosure Type | Bass-reflex |
| Rated Input (100 V / 70 V / 8 Ω) | 30 W |
| Rated Input (25 V line) | 3.7 W |
| Sensitivity | 90 dB (1 W, 1 m; 330 Hz–3.3 kHz, pink noise) |
| Frequency Response | 95 Hz – 20 kHz (-10 dB) |
| Speaker Component | 12 cm (5") cone + balanced dome-tweeter (coaxial) |
| Rated Impedance (100 V) | 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1.3 W) |
| Rated Impedance (70 V) | 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W) |
| Certifications | UL 1480 UUMW, ULC-S541 |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Finish | ABS resin / steel mesh grille, white (RAL 9010) |
| Dimensions | Ø186 × 275 mm (Ø7.32" × 10.83") |
| Weight | 2 kg (4.41 lb) |
| Included Accessories | GRIPPLE® No.1 & No.2, release key, safety wire, hanging wire, 4.6 m FPL speaker cable |
