TOA Electronics Paging Horn Speaker - SC-630TU

Regular price $164.00 Sale price $133.00
Shipping calculated at checkout.
TOA  |  SKU: SC-630TU

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

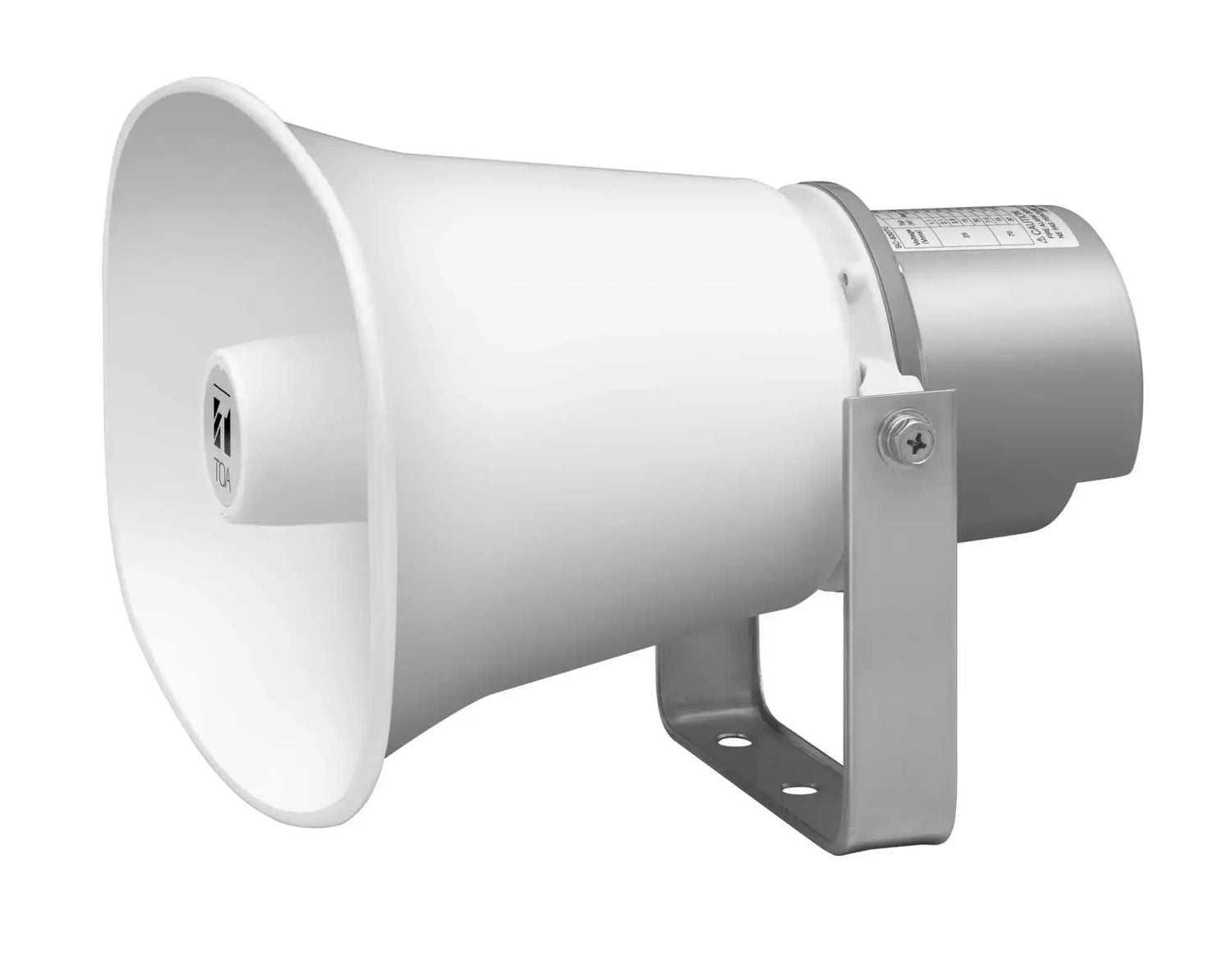

The SC-630TU is a compact, highly intelligible speaker suited to public address announcement applications. Its external speaker component finished with powder coating, and stainless steel bracket and screws ensure the unit's weatherproof capability. The SC-630TU is certified to UL 1480 UUMW and ULC-S541 standards, and suitable for outdoor use.

Features
  • Paging horn speakers for voice paging and tone signaling distribution.
  • Certified to Fire Alarm Signaling Speaker certification
  • UL 1480 UUMW and ULC-S541 listed.
  • Double re-entrant horn with compression driver
  • Usable as a microphone for intercom talk-back applications.
  • Input impedance selector (25V and 70V) with rotary switch
  • Controlled dispersion
  • Weather-resistant to withstand demanding environmental conditions.
  • IEC IP65 standards compliant for dust and moisture resistance.
  • Non-flammable transformer case and speaker cable
  • Extra wide temperature range: -40°F to 151°F
  • Diaphragms employing special heat-resistant polyimide film to prevent the diaphragm from absorbing moisture and changing shap
Specs
Rated Input
30 W
Rated Impedance
70 V line: 170 Ω (30 W), 330 Ω (15 W), 650 Ω (7.5 W)
25 V line: 21 Ω (30 W), 42 Ω (15 W), 170 Ω (3.9 W), 330 Ω (2.1 W), 650 Ω (1.1 W)
Sound Pressure Level
113 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)
Frequency Response
250 Hz - 10 kHz
Polarity
Hot: Black and Red cables, Com: White and Green cables
Speaker Cable
4-core FPL listed cable 0.6 m (1.97 ft)<br/>
(4.8 mm (0.19") in diameter, 600 mm (1.97 ft) in length)
Compliance/Certifications
UL 1480 UUMW, ULC-S541
Dust/Water Protection
IP65
Operating Temperature
-40 °C to +66 °C (-40 °F to 151 °F) (must be free from dew condensation)
Finish
Horn flare: Aluminum, white (RAL 9010 equivalent), powder coating
Reflector horn: ABS resin, white (RAL 9010 equivalent)
Rear cover: ABS resin, gray (RAL 7031 equivalent)
Bracket, screws and bolts: Stainless steel
Dimensions
285 (W) x 227 (H) x 277 (D) mm (11.22 x 8.94" x 10.91")
Weight
2 kg (4.41 lb)
Optional Accessories
Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
