TOA Q-SC-P620 Powered Horn Speaker - 20 W Class D, IP65, 12 V DC
Product Overview

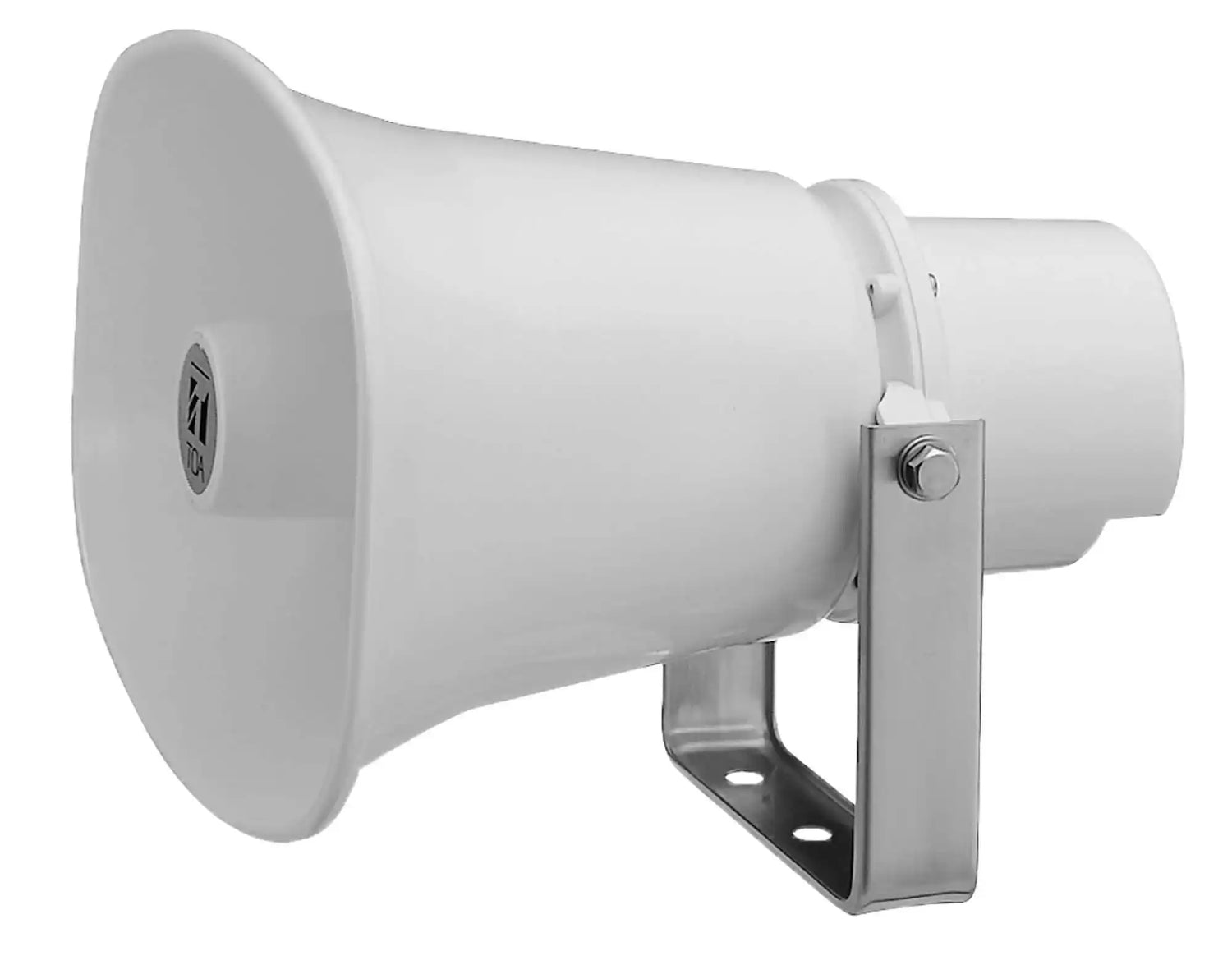

The TOA Q-SC-P620 is a compact powered horn speaker with a built-in 20 W Class D digital amplifier, designed for public address and remote paging in network video surveillance and IP security system deployments. Its IP65-rated weatherproof enclosure makes it suitable for outdoor perimeter coverage, industrial areas, and any installation environment exposed to dust or water ingress. The built-in amplifier eliminates the need for a separate amplifier rack, reducing installation complexity in remote or distributed locations.
Product Description
The Q-SC-P620 operates from a 12 V DC power source (2 A, 5.5 x 2.1 mm DC socket) making it compatible with standard CCTV power supplies and PoE-to-DC converters used in surveillance infrastructure. Four switchable gain settings (8, 16, 24, and 32 dB) allow output level optimization for different source signal levels and coverage distances. A maximum SPL exceeding 120 dB, combined with a HIPS resin horn flare and ABS reflector, delivers high-intelligibility voice coverage over extended outdoor distances. Order the TOA Q-SC-P620 from Creation Networks.
Key Features
- Built-in 20 W Class D digital amplifier
- IP65-rated weatherproof construction for outdoor and industrial installation
- Switchable gain: 8 dB, 16 dB, 24 dB, 32 dB
- Maximum SPL: >120 dB
- Power supply: 12 V DC, 2 A (5.5 x 2.1 mm DC socket, “+” center)
- Input: 0 dB, 10 kΩ, unbalanced (RCA)
- HIPS resin horn flare; ABS reflector — white (RAL9010)
- Stainless steel mounting bracket, screws, and bolts
- Dimensions: 292 (W) x 230 (H) x 280 (D) mm; Weight: 1.8 kg
Technical Specifications
| Specification | Value |
|---|---|
| Amplifier Class | Class D digital |
| Rated Output Power | 20 W |
| Maximum SPL | >120 dB |
| Switchable Gain | 8 dB / 16 dB / 24 dB / 32 dB |
| Input | 0 dB, 10 kΩ, unbalanced, RCA plug |
| Power Source | 12 V DC, 2 A (DC socket “+” type, 5.5 x 2.1 mm) |
| Power Consumption | 15 W (rated), 25 W (maximum) |
| IP Rating | IP65 |
| Horn Material | HIPS resin (white, RAL9010) |
| Bracket Material | Stainless steel |
| Dimensions | 292 (W) x 230 (H) x 280 (D) mm |
| Weight | 1.8 kg |
