TOA Electronics Outdoor Substation - Q-N8050WP 43100

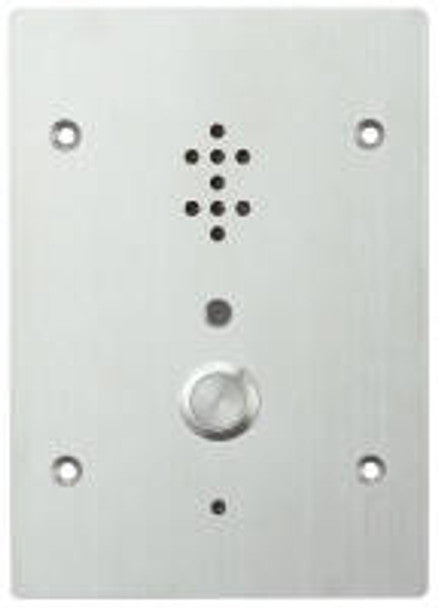

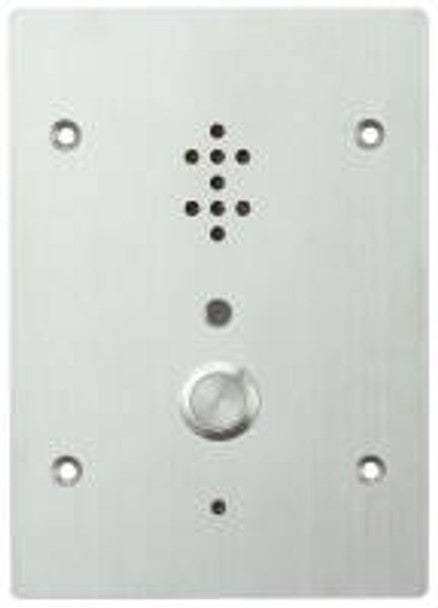

The TOA Q-N8050WP is an IP54-rated outdoor door station designed for the TOA N-8000 Series two-wire intercom system. It provides hands-free communication with any master station connected to an N-8000EX or N-8010EX intercom exchange over a simple two-wire connection. The Q-N8050WP features separate microphone and speaker elements for clear voice pickup and audio reproduction, an open-collector control output for access control integration (momentary 1–9 seconds), and support for TOA's audio trigger function for automated system responses.
The unit is IP54 rated for outdoor deployment with additional PCB-level moisture protection, making it suitable for building entry points, gate intercoms, and secure access applications. Installation requires a 3-gang back box; optional flush-mount (YC-150) and surface-mount (YS-13A) back boxes are available from TOA. The Q-N8050WP is also offered as a PCB assembly only under model number N-8050SB for custom installation enclosures.
Key Features
| Feature | Benefit |
|---|---|
| IP54 weather resistance | Suitable for outdoor installation at building entrances and exposed locations |
| Two-wire connection | Simplifies wiring — a single pair connects to the N-8000EX or N-8010EX exchange |
| Hands-free operation | Allows natural conversation without press-to-talk |
| Open-collector control output | Triggers door locks, gate releases, or other access control equipment (1–9 sec momentary) |
| Audio trigger function support | Enables automated system responses when audio is detected at the door station |
| Separate mic and speaker elements | Optimizes voice pickup and audio output quality independently |
| Optional flush or surface back box | Accommodates architectural flush-mount (YC-150) or surface-mount (YS-13A) installation |
Typical Applications
The Q-N8050WP is suited for outdoor intercom stations at commercial building entrances, office lobbies, access-controlled gates, secure facility perimeters, multi-tenant residential entrances, warehouses, and industrial facilities where weather-resistant hands-free communication with an interior N-8000 Series master station is required.
Technical Specifications
| Specification | Details |
|---|---|
| System Compatibility | N-8000EX or N-8010EX intercom exchange |
| Communication Mode | Half-duplex, hands-free |
| Wiring | Two-wire line connection |
| Control Output | Open collector, momentary 1–9 seconds |
| Weatherproofing | IP54 (with additional PCB-level protection) |
| Back Box Requirement | 3-gang (not included) |
| Optional Accessories | Flush-mount back box: YC-150; Surface-mount back box: YS-13A; PCB assembly: N-8050SB |
Note: Dimensional, weight, and electrical power specifications are not published in the available TOA datasheet for this model. Contact Creation Networks for a complete specification sheet.
FAQ
- What intercom systems is the Q-N8050WP compatible with? It connects to the TOA N-8000 Series, specifically the N-8000EX or N-8010EX intercom exchange units.
- Does it require a separate power supply? No. The Q-N8050WP is powered by the N-8000EX or N-8010EX exchange over the two-wire line — no separate power supply is needed at the door station.
- What does the IP54 rating mean for installation? IP54 indicates protection against dust ingress (partial) and water splashing from any direction, making it appropriate for covered outdoor entry points and building facades.
- Can the control output trigger a door strike? Yes. The open-collector output supports momentary activation of 1–9 seconds, suitable for electric door strikes, magnetic locks, and gate operators.
- Is a back box included? No. A 3-gang back box is required and must be supplied separately. TOA offers flush-mount (YC-150) and surface-mount (YS-13A) back box options.
