TOA Electronics Network Audio Adapter with Signal and Peak LEDs - NX-100SPS

Product Overview

The TOA NX-100SPS is a network audio adapter that converts analog mic- or line-level audio into standard IP packets for transport across local area, wide area, and internet networks. It lets integrators distribute paging and background music over existing IP infrastructure without dedicated audio cabling. The SPS configuration adds front-panel signal and peak LEDs for at-a-glance level monitoring during setup and operation.

Product Description

The NX-100SPS encodes analog audio into IP packets and streams it to other network audio endpoints, supporting three selectable audio-quality modes with variable sample rate and audio bandwidth and a minimum latency of about 20 milliseconds. Its programmable control inputs can initiate and terminate stored transmissions without a separate PC or control system, and each unit holds twenty distribution presets for flexible routing. Eight open-collector control outputs allow the adapter to trigger external equipment as part of a paging or automation sequence. The network interface is 10BASE-T/100BASE-TX with auto-negotiation and uses standard TCP/IP, UDP, HTTP, and RTP protocols, so it fits cleanly into managed commercial networks. Power is supplied by 24 V DC through a plug-in screw connector or an optional AC adapter. The signal and peak LEDs simplify level setting and troubleshooting in racks and equipment rooms. For related networked-audio hardware, browse the TOA network audio selection at Creation Networks.

Key Features

• Analog-to-IP audio encoding — Converts mic or line audio into IP packets for transport over LAN, WAN, or internet links.

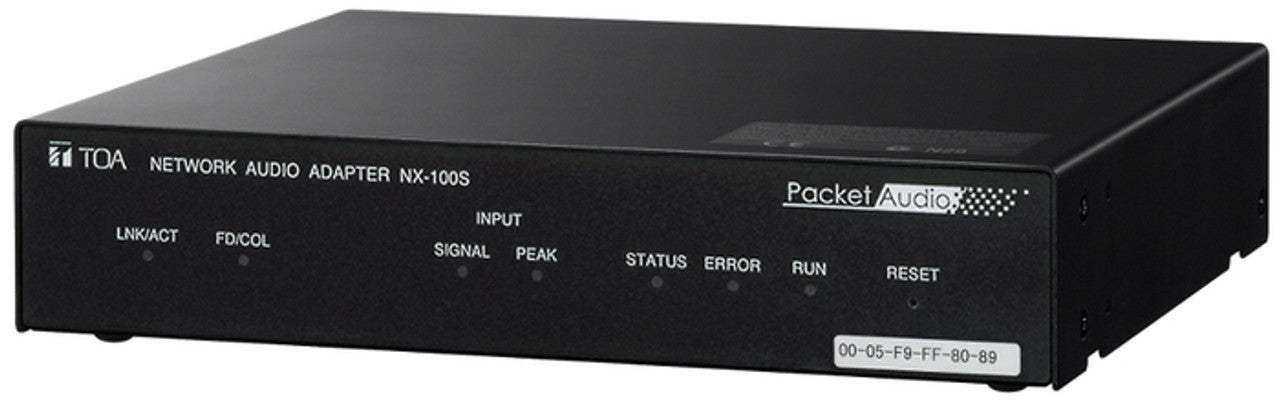

• Signal and peak LEDs — Provide front-panel level monitoring for faster setup and troubleshooting.
• Three audio-quality modes — Offer variable sample rate and bandwidth with about 20 ms minimum latency.
• Programmable control inputs — Start and stop stored transmissions without a separate PC or controller.
• Twenty distribution presets — Support flexible routing of audio across the network.

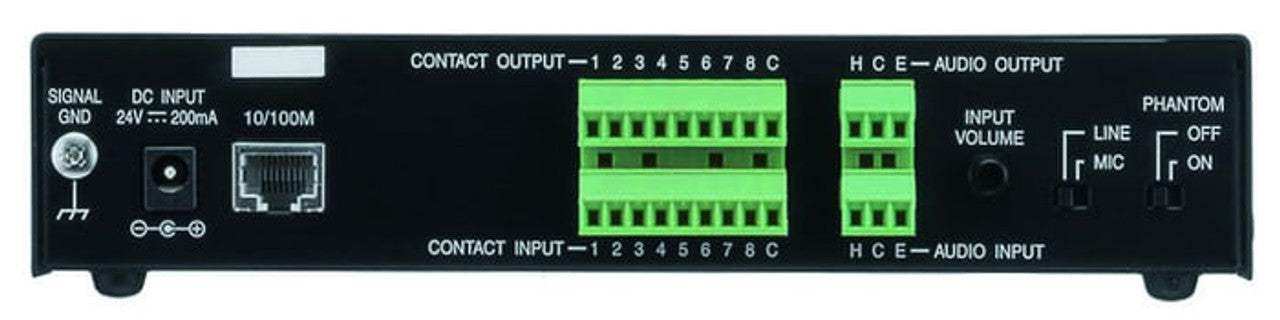

• Eight open-collector outputs — Trigger external equipment within paging or automation sequences.
• Standard network protocols — Uses 10/100 Ethernet with TCP/IP, UDP, HTTP, and RTP for managed networks.
• 24 V DC powered — Runs from a screw-connector supply or optional AC adapter for rack integration.

Typical Applications

• Broadcast studio
• Government space
• Commercial meeting space
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What does the NX-100SPS do? It converts analog mic or line audio into IP packets so audio can be distributed over standard data networks for paging and background music.

What distinguishes the SPS version? This configuration includes front-panel signal and peak LEDs for level monitoring during installation and operation.

Can it trigger transmissions without a PC? Yes. Programmable control inputs start and stop stored transmissions, and each unit stores twenty distribution presets.

How does it integrate with a network? It uses a 10/100 Ethernet interface with TCP/IP, UDP, HTTP, and RTP, allowing it to operate on managed commercial networks.

How is it powered? It runs on 24 V DC through a plug-in screw connector or an optional AC adapter, drawing about 200 mA.

Is warranty and support available? Yes. TOA products carry the manufacturer's warranty; contact Creation Networks for warranty details and integration support.
