TOA BG-220 CU 20 W Mixer Amplifier - 3 Inputs, 25 V / 70 V / 4 Ω
Product Overview

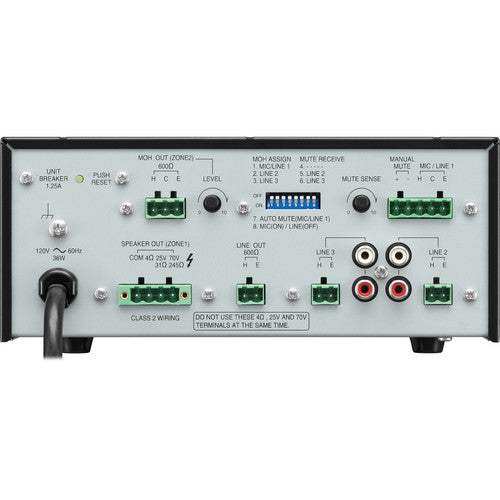

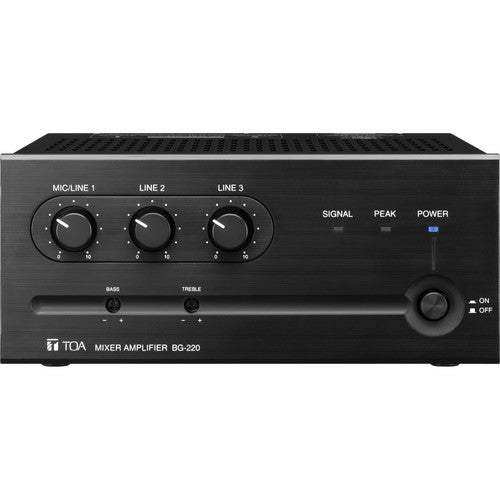

The TOA BG-220 CU is a 20 W mixer amplifier designed for background music and general announcement applications in retail, hospitality, office, and light commercial environments. It provides three inputs — one switchable MIC/LINE balanced input and two unbalanced LINE inputs with RCA jacks — along with simultaneous 25 V, 70 V, and 4 Ω balanced outputs. An MOH/Zone 2 output enables secondary zone distribution or music-on-hold routing from the same unit.
Product Description
Built-in protection circuitry monitors output current and thermal conditions, disabling the output stage if operating temperature exceeds 221°F (105°C) to prevent damage. An auto/manual mute function with adjustable sensitivity enables the amplifier to mute background music automatically upon receiving a paging signal. Frequency response extends from 50 Hz to 20 kHz with 0.5% or less THD at rated output, and output regulation is less than 2 dB from no load to full load. Order the TOA BG-220 CU from Creation Networks.
Key Features
- 20 W output power
- 1x MIC/LINE input (electronically balanced, 600 Ω, switchable) + 2x LINE (unbalanced, 10 kΩ, with RCA jacks)
- Simultaneous 25 V, 70 V, and 4 Ω balanced outputs
- MOH / Zone 2 output via removable terminal block
- Auto/manual mute with adjustable sensitivity for paging override
- Built-in overload and thermal protection (disables output above 221°F / 105°C)
- Frequency response: 50 Hz – 20 kHz at ≤0.5% THD
- Output regulation: <2 dB (no load to full load)
Technical Specifications
| Specification | Value |
|---|---|
| Rated Output Power | 20 W |
| Input 1 (MIC/LINE) | Electronically balanced, 600 Ω, switchable, terminal block |
| Input 2 / 3 (LINE) | Unbalanced, 10 kΩ, terminal block + RCA jacks |
| Outputs | 25 V, 70 V, 4 Ω balanced (terminal block) |
| Aux Output | MOH / Zone 2, terminal block |
| Frequency Response | 50 Hz – 20 kHz |
| THD at Rated Output | 0.5% or less |
| Output Regulation | <2 dB (no load to full load) |
| Thermal Protection Threshold | 221°F (105°C) |
