Product Overview

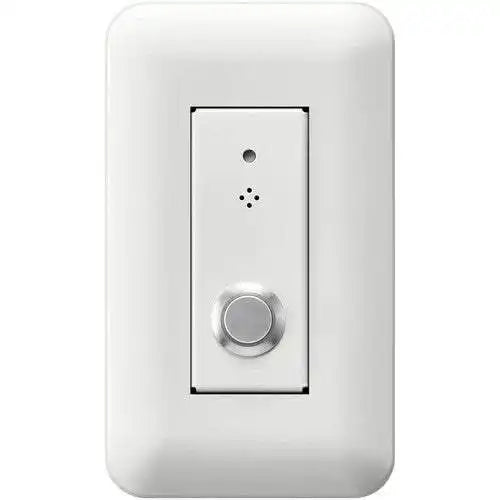

The TOA IP-A1MP is a microphone panel accessory for the IP-A1 series IP audio endpoint system. It provides a wall-mounted electret condenser microphone input with a push call switch and status indicator LED, enabling two-way audio communication or paging activation at any IP-A1 endpoint location. The panel connects to the IP-A1 host device and delivers a balanced 200 Ω microphone signal with adjustable output level, suited for both intercom and remote monitoring applications in IP-based PA and emergency notification systems.
Product Description
The IP-A1MP installs in a standard single-gang electrical box for flush or surface mounting, with an included ABS resin plate for surface applications. The push switch control output circuit closes automatically while the switch is pressed, triggering the associated IP-A1 endpoint action. The status indicator LED illuminates when the control input is active and phantom power is present, providing immediate visual feedback to the user. Housing is white steel plate. Order the TOA IP-A1MP from Creation Networks.
Key Features
- Electret condenser microphone for two-way conversation or audio monitoring
- Push call switch with no-voltage make contact I/O
- Status indicator LED illuminates on active call with phantom power present
- Balanced 200 Ω microphone output via push-in terminal block; adjustable level
- Installs in standard single-gang electrical box (flush or surface mount)
- Dimensions: 44.6 (W) x 107 (H) x 29 (D) mm (1.76" x 4.21" x 1.14")
- White steel housing; ABS accessory plate included for surface installation
- Weight: 170 g (0.37 lbs)
Technical Specifications
| Specification | Value |
|---|---|
| Microphone Type | Electret condenser |

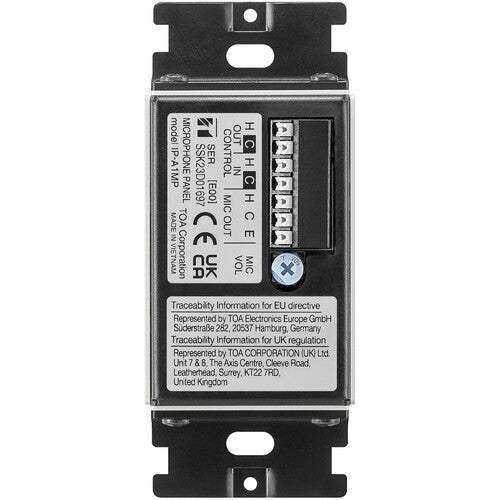

| Microphone Output | Electronically balanced, 200 Ω, push-in terminal block |
| Control Output | No-voltage make contact, push-in terminal block |
| Control Action | Circuit closes while push switch is pressed |
| Status Indicator | LED, lit when control input active + phantom power present |
| Mounting | Standard single-gang electrical box (flush or surface) |
| Housing Material | White treated steel plate |
| Dimensions | 44.6 (W) x 107 (H) x 29 (D) mm |
| Weight | 170 g (0.37 lbs) |
