TOA MT-S0601 – Matching Transformer for Line Array Type S
Product Overview

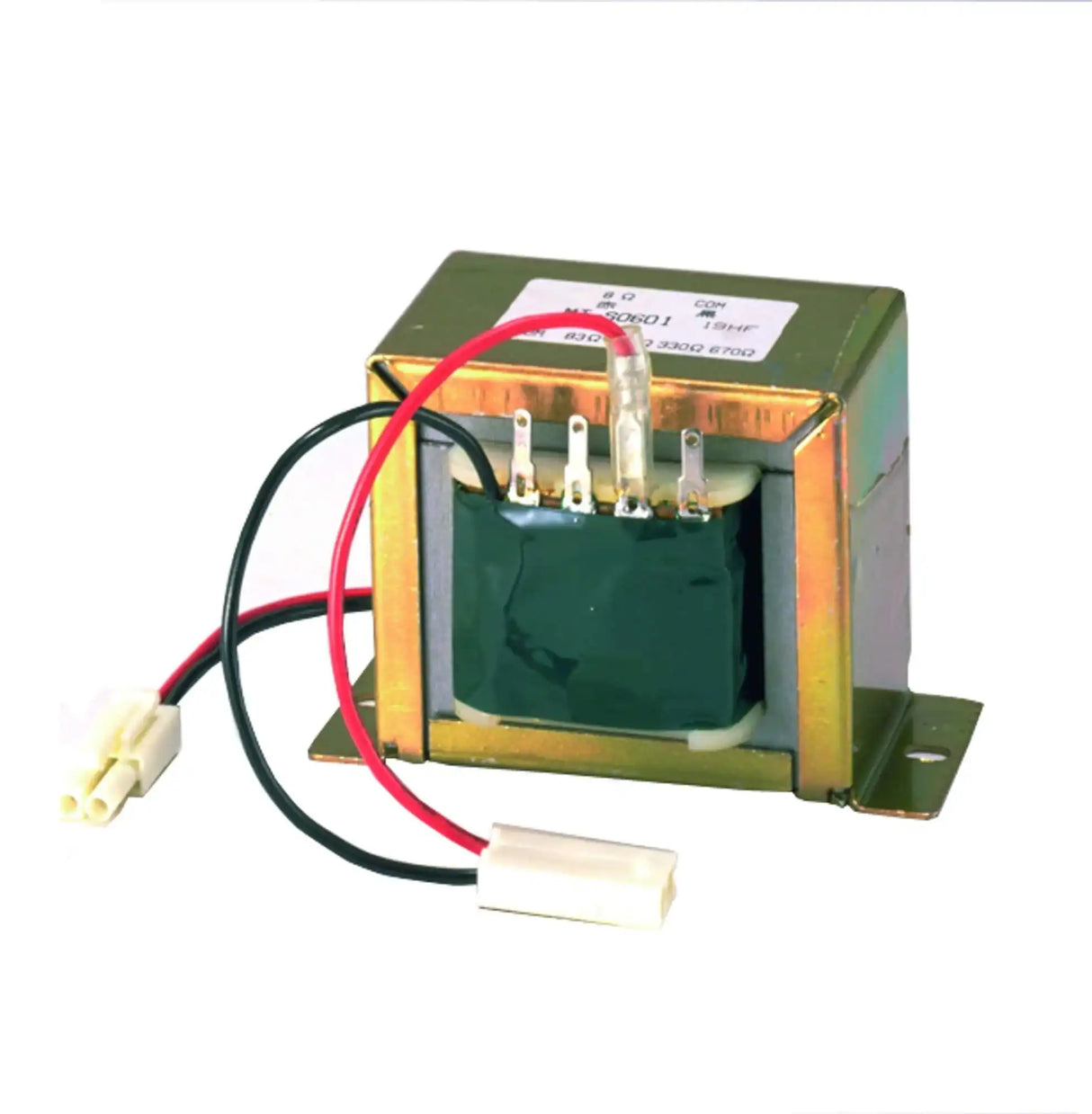

The TOA MT-S0601 is a matching transformer for Line Array Type S speakers (SR-S4L, SR-S4S), connecting them to 70V or 100V constant-voltage distributed audio systems. It provides selectable power taps of 60W, 30W, and 15W on both line voltages.
Product Description
SR-S4L and SR-S4S line array speakers operate on low impedance by default, but many commercial PA and installed sound systems use 70V or 100V constant-voltage distribution. The MT-S0601 bridges that gap, mounting directly to the speaker and providing selectable power taps so system designers can balance zone levels across the distributed line. Impedance options on both 100V and 70V lines cover 60W, 30W, and 15W draw. Order the MT-S0601 from creationnetworks.net.
Key Features
- Matching transformer for TOA Line Array Type S speakers (SR-S4L, SR-S4S)
- Supports 70V and 100V constant-voltage distributed audio lines
- Selectable power taps: 60W, 30W, 15W on both line voltages
- Allows SR-S4 series speakers to integrate with constant-voltage PA systems
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Speakers | SR-S4L, SR-S4S (Line Array Type S) |
| 100V Impedance Taps | 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W) |
| 70V Impedance Taps | 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W) |
