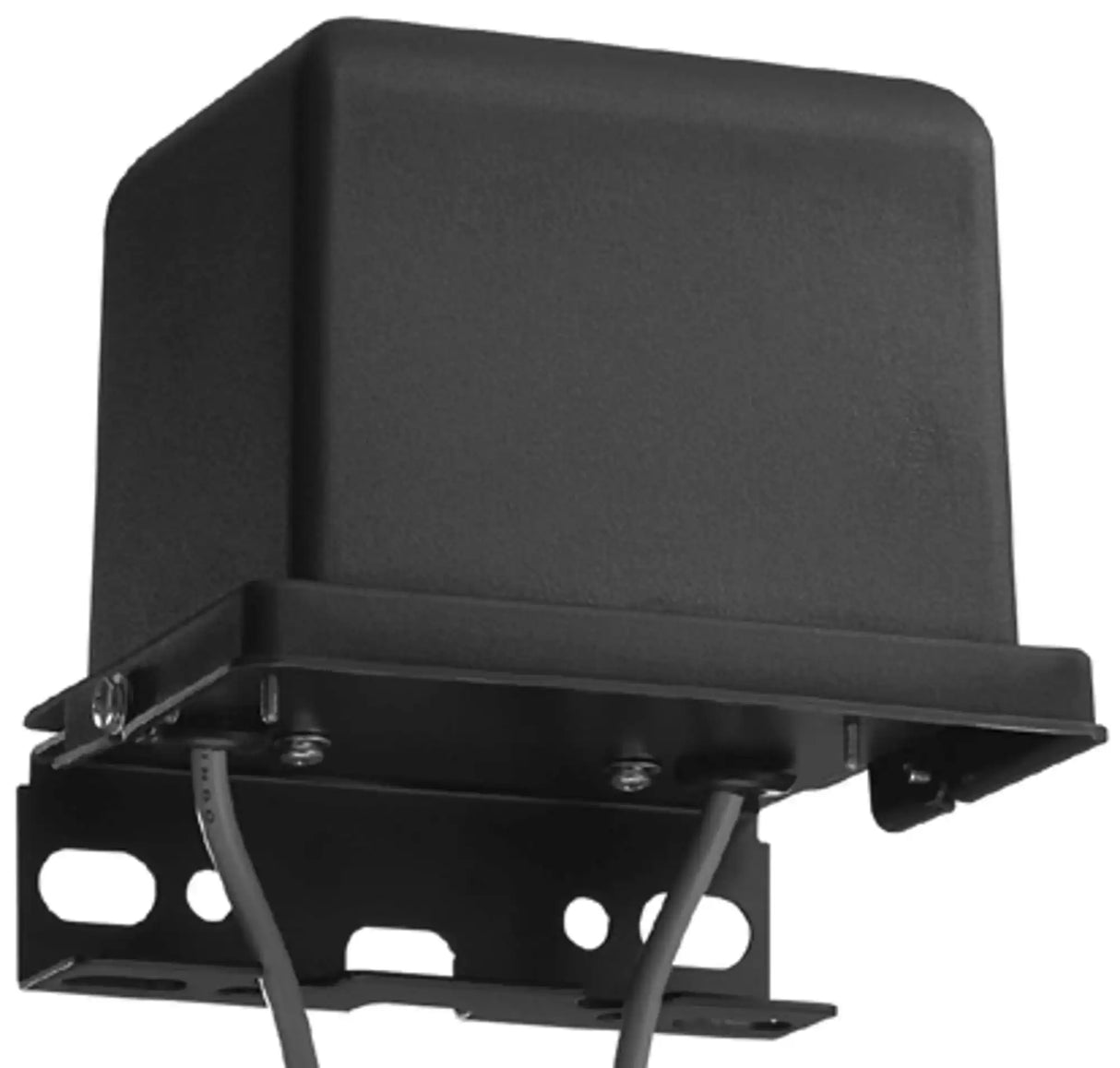

TOA MT-200 – Matching Transformer for HX-5 and HX-7 Speakers
Product Overview
The TOA MT-200 is a matching transformer for HX-5 and HX-7 series variable dispersion array speakers, connecting them to 70V or 100V constant-voltage distributed audio systems. It supports selectable power taps up to 200W and comes factory-preset to 167Ω (60W at 100V / 30W at 70V).
Product Description
The MT-200 mounts directly onto HX-5 and HX-7 series speaker enclosures, making constant-voltage 70V/100V system integration straightforward. Three impedance taps on each line voltage cover 200W, 120W, and 60W at 100V (or 200W, 100W, and 60W at 70V), accommodating a wide range of system design requirements. The factory preset to 167Ω covers most 60W-per-zone installations without any field adjustment. Order the MT-200 from creationnetworks.net.
Key Features
- Matching transformer for TOA HX-5 and HX-7 series speakers
- Supports 70V and 100V constant-voltage distributed audio lines
- 100V taps: 200W, 120W, 60W; 70V taps: 200W, 100W, 60W
- Factory-preset to 167Ω for typical 60W zone installations
- Mounts directly to HX-5 and HX-7 series enclosures
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Speakers | HX-5 series, HX-7 series |
| 100V Impedance Taps | 50 Ω (200 W), 83 Ω (120 W), 167 Ω (60 W) |
| 70V Impedance Taps | 25 Ω (200 W), 50 Ω (100 W), 83 Ω (60 W), 167 Ω (30 W) |
| Factory Preset | 167 Ω |
