TOA HY-MT7 Matching Transformer Adapter for HX-7 Series - Set of 2
Product Overview

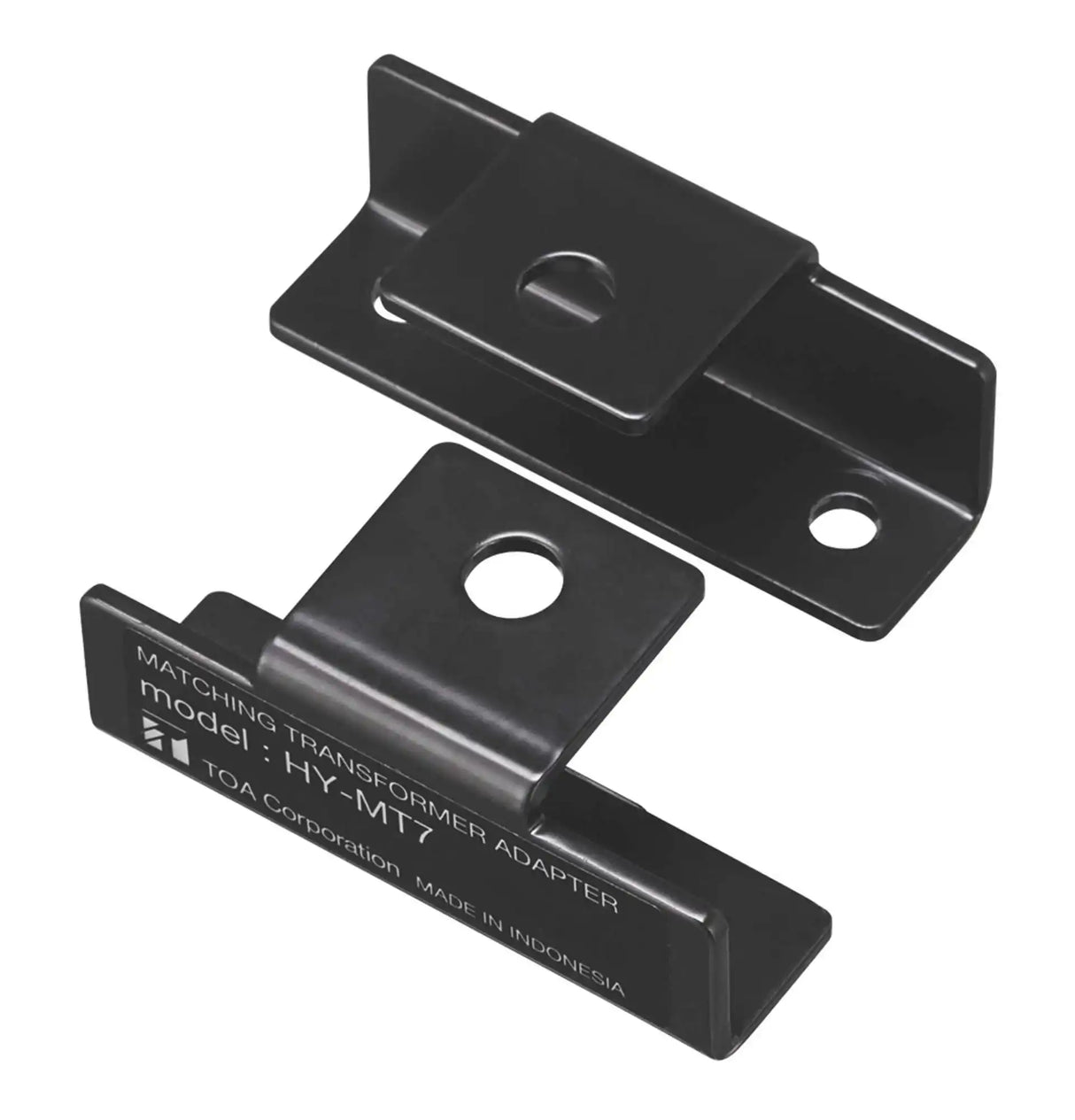

The TOA HY-MT7 is a matching transformer adapter designed to mount the TOA MT-200 matching transformer directly to the rear panel of HX-7 series speakers. It provides a clean, integrated solution for adding 70 V / 100 V distributed audio capability to the HX-7B, HX-7W, HX-7B-WP, and HX-7W-WP speakers without requiring a separate transformer enclosure or external cabling run. The HY-MT7 is supplied as a set of two pieces per order.
Product Description
Constructed from stainless steel with a black semi-gloss paint finish, the HY-MT7 bracket attaches to the standard mounting points on the HX-7 rear panel using the supplied mounting hardware, including bolts, nuts, and washers. The compact profile (30 W x 70 H x 28 D mm) keeps the transformer installation tight to the speaker cabinet, facilitating clean line-array or delay-fill installations where transformer housings need to remain out of view. Order the TOA HY-MT7 from Creation Networks.
Key Features
- Mounts TOA MT-200 matching transformer to HX-7 series speaker rear panel
- Compatible with HX-7B, HX-7W, HX-7B-WP, and HX-7W-WP
- Supplied as a set of 2 pieces
- Stainless steel construction with black semi-gloss paint finish
- Mounting hardware included: bolts, transformer mounting nuts, and washers
- Dimensions: 30 (W) x 70 (H) x 28 (D) mm (1.18" x 2.76" x 1.10")
- Weight: 140 g (0.31 lb) per set
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Speakers | HX-7B, HX-7W, HX-7B-WP, HX-7W-WP |
| Compatible Transformer | TOA MT-200 |
| Material | Stainless steel, black semi-gloss paint |
| Dimensions | 30 (W) x 70 (H) x 28 (D) mm |
| Weight | 140 g (0.31 lb) |
| Quantity per Order | Set of 2 |
