Product Overview

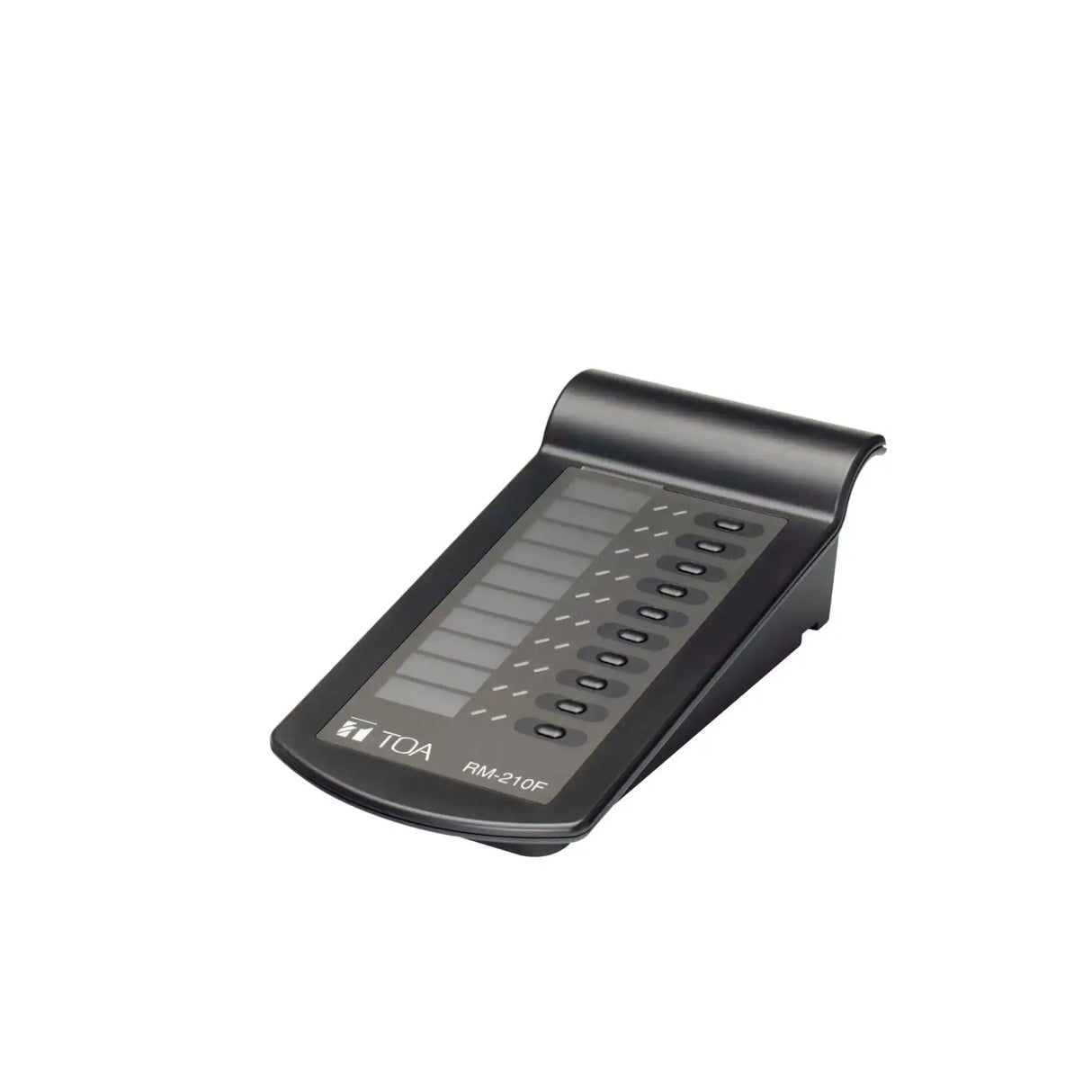

The TOA RM-210F AMQ is a remote microphone extension unit for the VX-3000 integrated voice evacuation system. Each RM-210F AMQ adds 10 function keys to the base RM-300X control station, expanding the number of addressable paging zones and emergency routing options available at a single control point. It incorporates an unidirectional electret condenser microphone with selectable AGC and a built-in PCM chime source for consistent pre-announcement tone generation.
Product Description
The RM-210F AMQ includes a 3.5 mm external microphone input with 3 V DC phantom power for electret condenser microphones, as well as a 3.5 mm AUX input for connecting external audio sources. A built-in monitoring speaker allows operators to confirm system audio before or during announcements. Power is supplied from the RM-300X host unit. Audio output is balanced at 0 dB / 600 Ω, meeting professional audio interconnect standards for the VX-3000 bus. Order the TOA RM-210F AMQ from Creation Networks.
Key Features
- Adds 10 function keys per unit to the RM-300X base station
- Unidirectional electret condenser microphone with selectable AGC
- Built-in PCM chime for pre-announcement tone
- Built-in monitoring speaker for audio confidence monitoring
- External mic input: –40 dB, 2.2 kΩ, 3.5 mm jack, 3 V phantom power
- AUX input: –20 dB, 4.7 kΩ, 3.5 mm jack
- Balanced audio output: 0 dB, 600 Ω
- Frequency response: 100 Hz – 20 kHz; SNR: ≥60 dB; THD: ≤1%
- Powered from RM-300X (80 mA max)
Technical Specifications
| Specification | Value |
|---|---|
| Function Keys | 10 per unit |
| Microphone Type | Unidirectional electret condenser with AGC (on/off) |
| Audio Output | 0 dB, 600 Ω, balanced |
| External Mic Input | –40 dB, 2.2 kΩ, 3.5 mm (2P), 3 V DC phantom |
| AUX Input | –20 dB, 4.7 kΩ, 3.5 mm (2P) |
| Frequency Response | 100 Hz – 20 kHz |
| THD | 1% or less |
| SNR | 60 dB or more |
| Current Consumption | 80 mA max (from RM-300X) |
| Compatible System | VX-3000 series voice evacuation |
