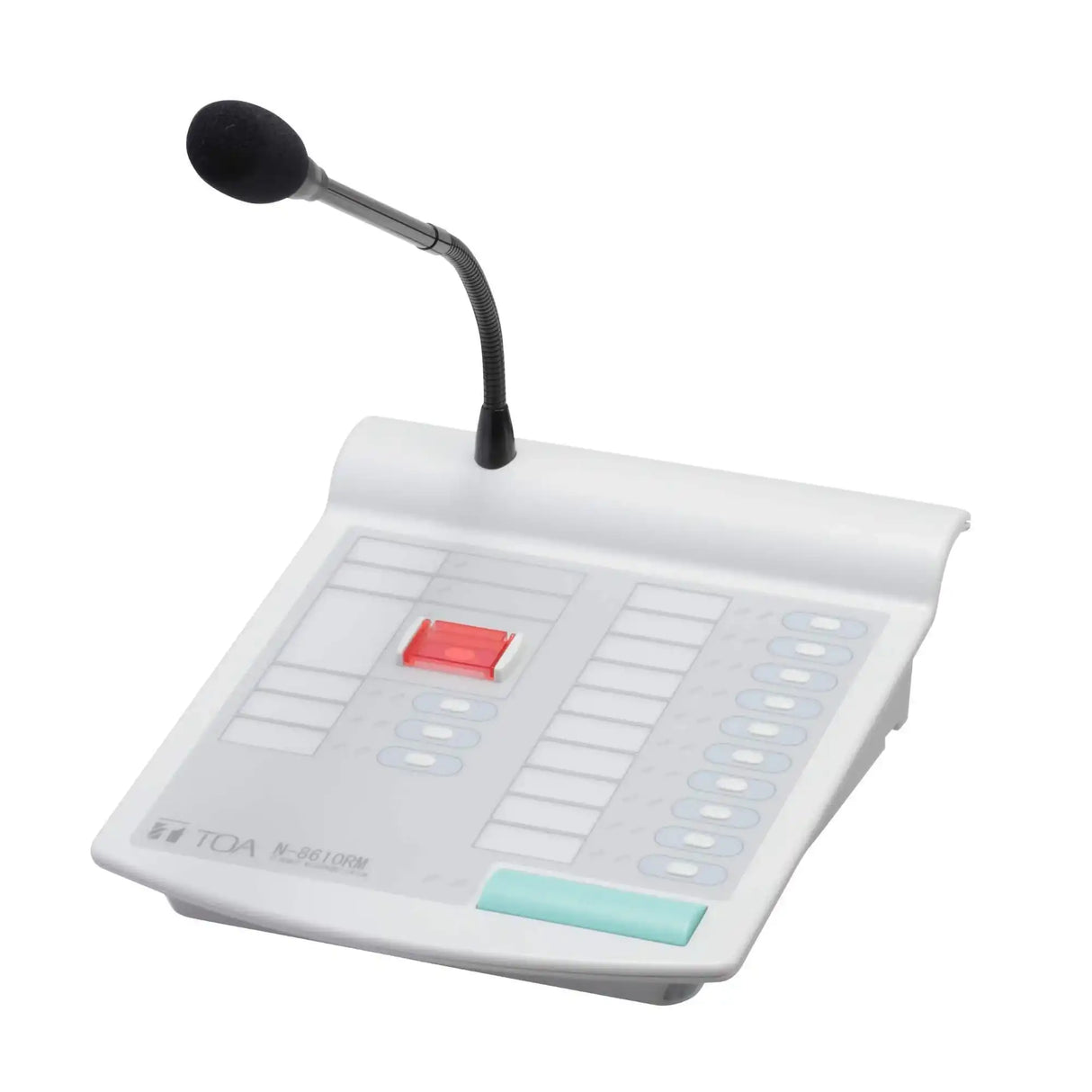

TOA Electronics IP Remote Microphone - N-8610RM

Product Overview

The TOA N-8610RM is an IP remote microphone station for the N-8000 Series intercom and paging platform, using packet audio technology to deliver high-quality voice over standard networks. It connects directly to a LAN or WAN and routes announcements to intercom stations on an IP Intercom Exchange or Multi-Interface Unit, as well as to other N-8610RM units. The station provides 14 function keys, each with its own indicator, and expands to 40 keys with optional RM-210 extension units. PoE power and RJ45 networking make it straightforward to deploy in commercial paging and intercom systems.

Product Description

The N-8610RM brings flexible, network-based paging control to TOA's N-8000 IP intercom systems. Audio is transported as packets over a 10BASE-T/100BASE-TX Ethernet link with an RJ45 connector, so a single network cable carries both voice and control. The station supports common network protocols including TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP, and can address up to 16 unicast and 191 multicast paging destinations. Its 14 backlit function keys, including one under a protective cover, give operators direct access to zones and functions; adding up to four RM-210 extension units increases capacity to 40 keys in blocks of ten. Power is supplied over PoE from a compatible switching hub, eliminating the optional AC adapter in most installs, with a maximum of two units powered per hub. The station sits on a desk or mounts to a wall using the optional WB-RM200 bracket, making it suitable for control rooms, reception desks, and security posts. For other network paging endpoints and master stations, browse our TOA N-8000 IP intercom range.

Key Features

• Packet audio over IP — Delivers high-quality voice to intercom stations across a LAN or WAN.
• 14 function keys with indicators — Direct zone and function access, including one key under a protective cover.
• Expandable to 40 keys — Adds capacity in blocks of ten using up to four optional RM-210 extension units.
• PoE powered — A PoE switching hub powers the station over the network cable, with an optional AC adapter available.
• Flexible paging addressing — Supports up to 16 unicast and 191 multicast destinations.
• Standard networking — 10BASE-T/100BASE-TX RJ45 with TCP/IP, UDP, RTP, and related protocols.
• Desktop or wall mount — Installs on a desk or mounts to a wall with the optional WB-RM200 bracket.

Typical Applications

• Government space
• Commercial meeting space
• House of worship
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What systems is the N-8610RM compatible with? It works with TOA's N-8000 Series IP intercom systems, routing audio through an IP Intercom Exchange or Multi-Interface Unit and to other N-8610RM units.

How is the N-8610RM powered? It can be powered over PoE from a compatible switching hub, with a maximum of two units per hub, or by the optional AC adapter.

Can I add more function keys? Yes. Adding up to four RM-210 extension units increases capacity from 14 to 40 keys in blocks of ten.

How does it connect to the network? Through a single RJ45 cable on a 10BASE-T/100BASE-TX link supporting TCP/IP, UDP, RTP, and related protocols.

Can it be wall mounted? Yes. The station mounts to a wall using the optional WB-RM200 bracket, or it can sit on a desktop.

How many paging destinations are supported? Up to 16 unicast and 191 multicast destinations.

Does Creation Networks support N-8000 system integration? Yes. Our AV team can help design and configure N-8000 IP intercom and paging systems.
