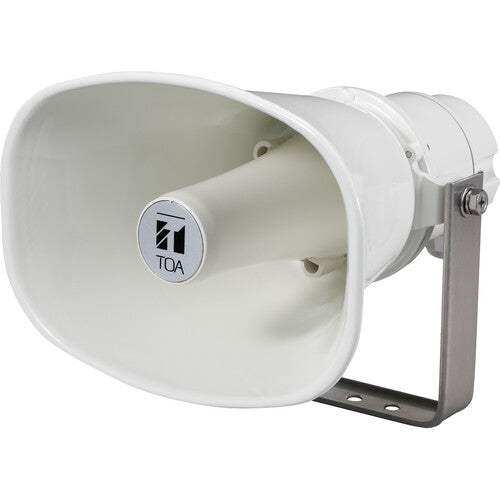

The IP-A1SC15 is an IP paging horn speaker to deliver clear announcements via network with 124 dB output capability powered by PoE+ power source. Its rugged enclosure is IP66 rated for outdoor environments. The IP-A1SC15 supports common network protocols for easy integrations with Video Management Systems and other SIP-compatible VoIP systems and devices. Group paging function is available with 20 Multicast ports for zone paging requirements. Internal sound source file storage allows storing pre-recorded messages or tones which can be played back by 2 control inputs or Remote API (HTTP).
Power Source
PoE+ (IEEE802.3at Class 4), PoE (IEEE802.3af Class 3)
Power Consumption
22 W (at PoE+ powered, rated output)
12.95 W (at PoE powered, rated output)
5 W (IEC62368-1)
Amplifier Rated Output
15 W (at PoE+ powered), 8 W (at PoE powered)
Sensitivity
112 dB (1 W, 1 m) (500 Hz to 2.5 kHz, peak level)
Maximum Sound Pressure Level
124 dB (at PoE+ powered, 15 W, 1 m) (500 Hz to 2.5 kHz, peak level)
121 dB (at PoE powered, 8 W, 1 m) (500 Hz to 2.5 kHz, peak level)
Frequency Response
280 Hz to 12.5 kHz
Audio Codec
Opus, PCMU (G.711u), PCMA (G.711a), G.722
Broadcasting Mode
SIP Broadcasting Mode: Opus/PCMU/PCMA/G.722
Multicast Broadcasting Mode: Opus/PCMU/PCMA/G.722 Auto codec recognition, 20 ports
VMS Broadcasting Mode: PCMU
Internal Message Broadcasting Mode
Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.
Sound Source Files
Max. 20 files (File storage capacity: 80 MB total)
Supported file formats
WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat playback: Playcount(1-10 times), Duration (5-3600 sec) or Timer (from Start time to End time)
Interval time: 0 - 99 sec, Delay time: 0 - 99 sec
Trigger: Control Input or Remote API (HTTP)
Network I/F
100BASE-TX, MDI/MDI-X, RJ-45
Network Protocol
TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)
Control Input
2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (3 pins)
Control Output
1 channel, open collector output, withstand voltage: 30 V DC, control current: 50 mA or less, removable terminal block (3 pins)
Indicator
LAN LINK/ACT (green), STATUS (orange)
Clock Accuracy
±13 seconds per month
Time Adjustment
Manual time setting, Time adjustment by NTP server
Power Outage Protection Period
24 hours (RTC time retention, at 40 °C (104 °F)
Dust/Water Protection
IP66
Operating Temperature
–30 °C to +55 °C (–22 °F to +131 °F)
Operating Humidity
90 %RH or less (no condensation)
Finish
Horn flare and body: Aluminum, off-white (RAL 9010 equivalent), paint
Reflector horn: ABS resin, off-white (RAL 9010 equivalent)
Rear cover: PC resin, off-white (RAL 9010 equivalent), paint
Bracket, screws and bolts: Stainless steel
