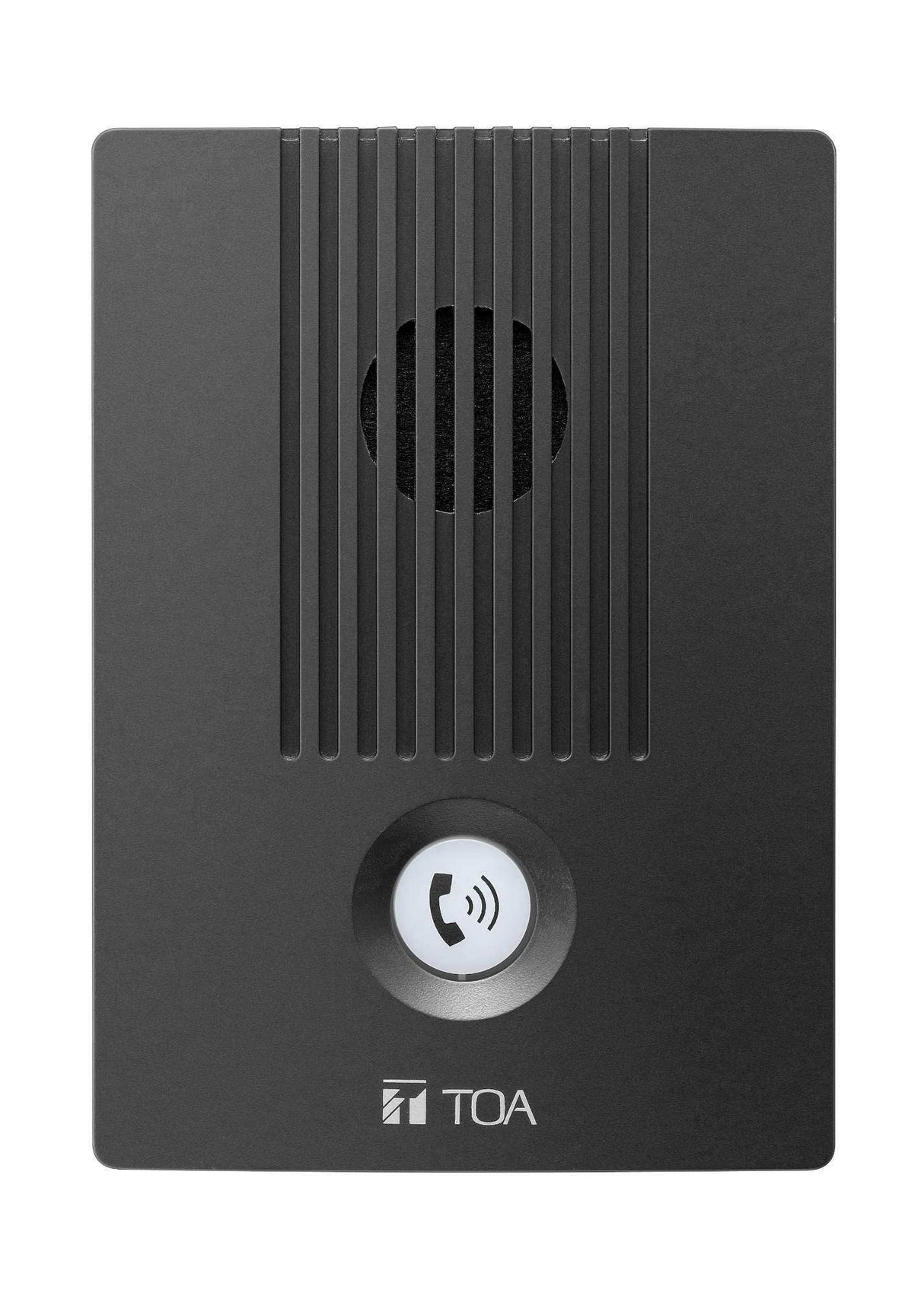

TOA Electronics IP Door Station - N-8650DS
Product Overview
The TOA N-8650DS is an indoor IP door station that uses packet audio over a LAN or WAN for hands-free intercom communication in commercial buildings. Connected to an IP intercom exchange or IP multifunctional master station, it provides clear two-way conversation at building entrances and access points. Built-in control inputs and outputs let it trigger sensors, indicators, and external speakers as part of a networked door-entry and paging system. PoE operation simplifies cabling for installers.
Product Description
The N-8650DS extends a TOA N-8000 Series IP intercom system to indoor door and entry locations using standard network infrastructure. It delivers high-quality hands-free conversation between the door station and any intercom station connected to the IP Intercom Exchange or an IP multifunctional master station, and it can also work through Multi Interface units across the network. The station carries one channel of control input and five channels of control output, including one relay control output, so it can connect external equipment such as a door sensor, status indicator, or external speaker. An 8-ohm external speaker terminal supports added audio coverage where needed, and a status lamp built into the call button gives clear visual feedback. The unit is powered over PoE per IEEE 802.3af or by an optional 12 V DC adapter, and it mounts flush or on the surface using compatible electrical boxes. For master stations and exchanges that pair with this door station, browse the TOA N-8000 intercom range at Creation Networks.
Key Features
- IP packet audio — Carries hands-free intercom conversation over LAN or WAN networks.
- PoE powered — Operates from IEEE 802.3af PoE or an optional 12 V DC adapter for flexible installation.
- Control input and outputs — Provides one control input and five control outputs, including one relay output, for sensors and door control.
- External speaker terminal — Drives an 8-ohm external speaker for expanded audio coverage.
- Call-button status lamp — Built-in indicator gives clear visual call feedback at the door.
- Flush or surface mount — Installs in a 3-gang electrical box or with optional back boxes for clean integration.
Typical Applications
- Government space
- Commercial meeting space
Technical Specifications
| Power Source | PoE (IEEE 802.3af) or 12 V DC (optional AC adapter) |
| Power Consumption | 3.5 W (AC adapter, station only); 5 W (PoE) |
| Speech Method | Hands-free conversation |
| Audio Frequency Range | 300 Hz - 7 kHz |
| Hands-free Audio | Speaker: 3.5 cm cone-type; Microphone: omni-directional electret condenser |
| Control Input | 1 channel, no-voltage make contact |
| Control Output | 4 channels open collector + 1 channel relay contact |
| Network Interface | 10BASE-T/100BASE-TX (Auto-Negotiation), RJ45 (PoE compatible) |
| Network Protocols | TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP; unicast/multicast |
| External Speaker | Max. 0.5 W, 8 ohm |
| Installation | Flush-mount or surface-mount |
| Operating Temperature | -10 C to +50 C (14 F to 122 F) |
| Finish | ABS resin, dark gray |
| Dimensions | 117.2 (W) x 162 (H) x 60 (D) mm |
| Weight | 400 g (0.88 lb) |
| Compatible Box | Wall: YS-13A; Flush: 3-gang electrical box or YC-150 |
Frequently Asked Questions
What system does the N-8650DS require? It connects to a TOA N-8000 Series IP intercom exchange or IP multifunctional master station and can also work through Multi Interface units over the network.
How is it powered? It runs on PoE per IEEE 802.3af, or on 12 V DC from an optional AD-1210P or AD-1215P adapter.
Can it control a door lock or sensor? Yes. It provides one control input and five control outputs, including a relay output, for connecting sensors, indicators, and door control devices.
How does it mount? Flush in a 3-gang electrical box or YC-150 back box, or on the surface with the YS-13A wall box.
Is it for indoor or outdoor use? The N-8650DS is specified for indoor use with an operating range of -10 C to +50 C.
Is warranty and support available? Yes. TOA products carry the manufacturer's warranty; contact Creation Networks for system design and support.
