TOA IR-500R Y Infrared Wireless Wall-Mount Receiver - For IR-702T, 49 ft Range
TOA IR-500R Y Infrared Wireless Wall-Mount Receiver - For IR-702T, 49 ft Range is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
TOA IR-500R Y Infrared Wireless Wall-Mount Receiver - For IR-702T, ...
Product Overview

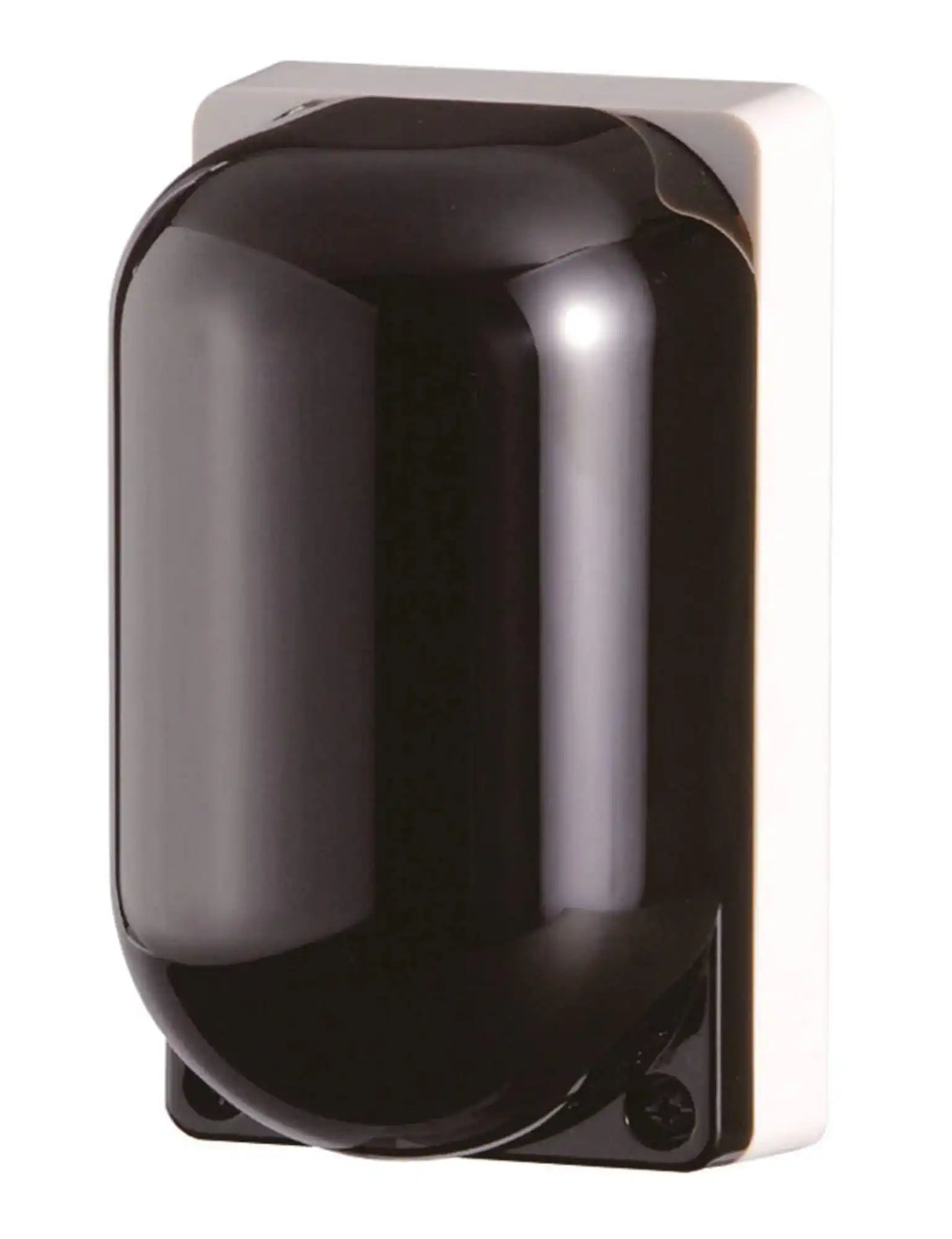

The TOA IR-500R Y is a wall-mount infrared wireless receiver designed to work with the IR-702T two-channel infrared wireless tuner. It captures infrared transmissions from TOA wireless infrared microphones and transmitters, covering reception areas up to approximately 49 ft in line-of-sight conditions. The unit mounts in a standard single-gang electrical box and receives both 24 V DC power and audio return signal through a single BNC connection to the IR-702T, simplifying the cable run to a single coaxial cable per receiver.
Product Description
The infrared reception angle is internally adjustable between 50° and 80° in both horizontal and vertical planes, allowing coverage to be optimized for the installation geometry without reorienting the mounting enclosure. A tinted plexiglass cover on a metal back plate provides a professional appearance while protecting the IR receiver optics. A power indicator LED gives at-a-glance confirmation of active connection to the IR-702T. The yellow (Y) color designation differentiates channel assignment in multi-receiver installations. Order the TOA IR-500R Y from Creation Networks.
Key Features
- Infrared wireless receiver for use with TOA IR-702T tuner
- Reception range: up to approximately 49 ft (line of sight)
- Internally adjustable reception angle: 50°–80° horizontal and vertical
- Single BNC connection carries both 24 V DC power and audio from IR-702T
- Single-gang electrical box compatible for flush wall mounting
- Dark tinted plexiglass cover on metal back plate
- Power indicator LED for active connection confirmation
- Yellow (Y) channel color designation
- Dimensions: 3.0" (W) x 4.7" (H) x 2.8" (D); Weight: 0.5 lbs
Technical Specifications
| Specification | Value |
|---|---|
| System Compatibility | TOA IR-702T infrared wireless tuner |
| Reception Range | Up to ~49 ft (line of sight) |
| Reception Angle | 50°–80° (H&V, internally adjustable) |
| Connector | BNC (power + signal via IR-702T) |
| Power Supply | 24 V DC from IR-702T |
| Mounting | Single-gang electrical box |
| Dimensions | 3.0" (W) x 4.7" (H) x 2.8" (D) |
| Weight | 0.5 lbs |
