TOA Electronics Infrared Wireless Dome Receiver for IR-702T - IR-510R Y
TOA Electronics Infrared Wireless Dome Receiver for IR-702T - IR-510R Y is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
TOA Electronics Infrared Wireless Dome Receiver for IR-702T - IR-51...
Product Overview

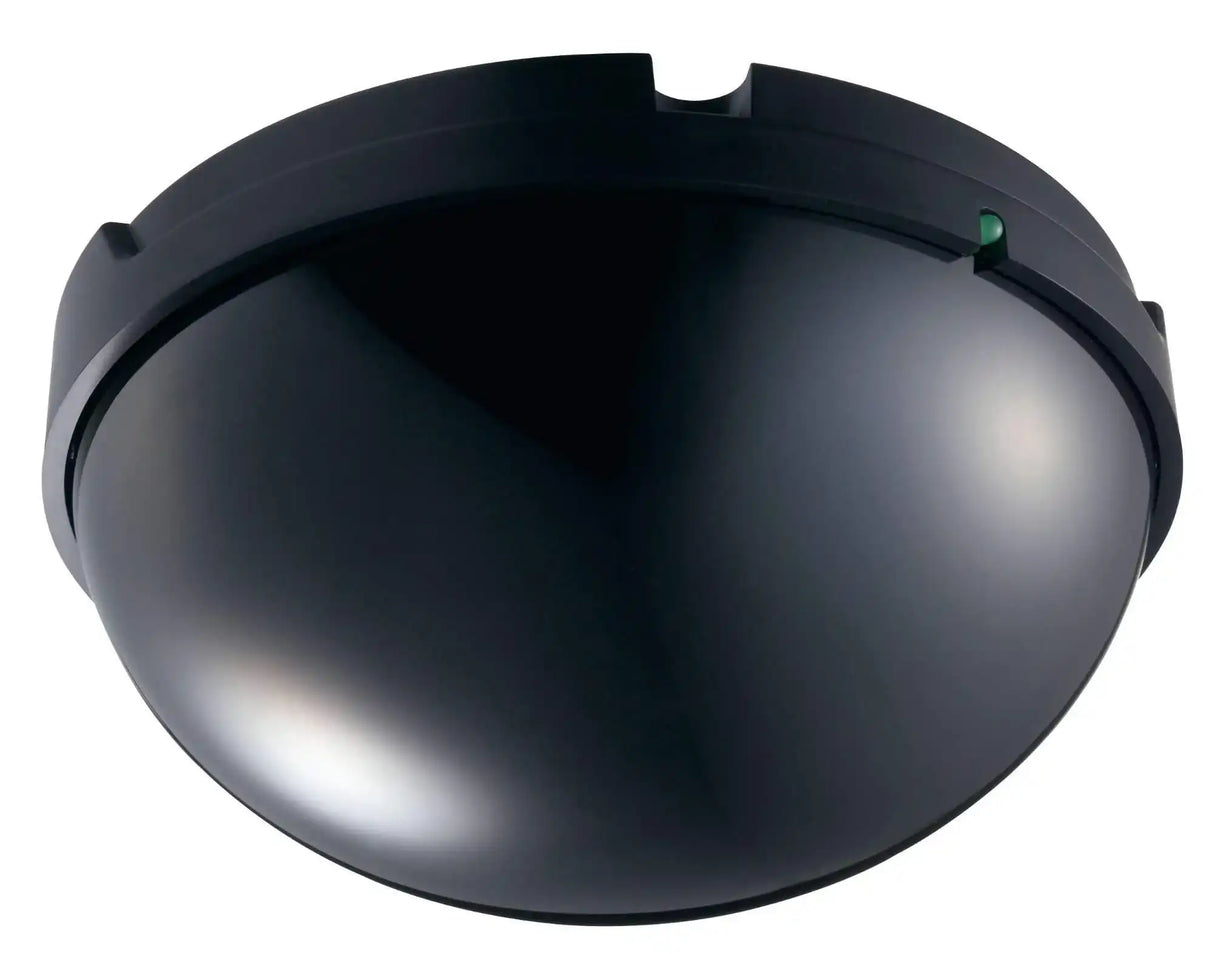

The TOA IR-510R Y is a ceiling-mount dome infrared wireless receiver designed for exclusive use with the TOA IR-702T infrared wireless tuner. It extends infrared microphone coverage to ceiling mounting points in classrooms, lecture halls, and conference rooms — providing 360° IR reception across a coverage radius of approximately 26 feet without visible wall-mount hardware.
Product Description
The IR-510R Y connects to the IR-702T tuner via a single BNC-type cable, which carries both the IR audio signal and 24 VDC operating power from the tuner — eliminating the need for a separate power run to the ceiling. The dark-tinted plexiglass dome conceals the receiver's electronics while allowing 360° horizontal infrared pickup, providing full-room coverage of TOA IR-200M handheld or IR-300M neck-worn transmitters in motion. A power indicator LED provides quick confirmation of operating status. Its low-profile circular form factor integrates cleanly into standard ceiling tiles for unobtrusive installation. For complete infrared wireless microphone systems, explore TOA IR Wireless products at Creation Networks.
Key Features
- 360° Horizontal IR Reception — Wide-angle dome design captures infrared signals from any direction in the room without dead spots.
- Ceiling-Mount Form Factor — Low-profile circular dome installs in standard ceiling tiles for a clean, unobtrusive appearance.
- Single-Cable BNC Connection — Connects to IR-702T via one BNC cable for both audio signal and 24 VDC power — no separate power wiring.
- Approximately 26 ft Coverage Radius — Effective line-of-sight reception range for classroom and conference room deployments.
- Power Indicator LED — Provides quick visual confirmation that the unit is powered and operational.
- Dark-Tinted Dome Cover — Conceals receiver electronics aesthetically while permitting full infrared reception.
- IR-702T Exclusive Compatibility — Engineered to work specifically with the TOA IR-702T 2-channel infrared wireless tuner for assured performance.
Typical Applications
- Boardroom
- Conference room
- Huddle room
- Government space
- Commercial meeting space
- Training room
- Auditorium
Technical Specifications
| Model | TOA IR-510R Y |
|---|---|
| Compatible Tuner | TOA IR-702T infrared wireless tuner (exclusive) |
| Mounting | Ceiling (flush or surface) |
| Coverage Angle | 360° horizontal |
| Coverage Radius | Approx. 8 m (26 ft) line of sight |
| Connection | BNC-type jack (audio signal + 24 VDC power from IR-702T) |
| Power Source | 24 VDC via IR-702T (no separate supply required) |
| Status Indicator | Power LED |
| Dimensions | 120 mm diameter × 72 mm H (4.7″ × 2.8″) |
| Weight | Approx. 0.23 kg (0.5 lb) |
| Finish | White with dark-tinted dome cover |
Frequently Asked Questions
Is the IR-510R Y compatible with all TOA IR tuners? No — it is designed for exclusive use with the TOA IR-702T infrared wireless tuner only.
Does it need a separate power supply? No — it receives 24 VDC power directly from the IR-702T tuner via the BNC cable. Only one cable run is needed.
How large a room can one receiver cover? Approximately 8 m (26 ft) radius line of sight, with 360° horizontal coverage — suitable for most classrooms and medium conference rooms.
What transmitters work with this system? The TOA IR-702T tuner supports IR-200M handheld and IR-300M neck-worn infrared wireless microphone transmitters.
Can I install multiple receivers? Consult the IR-702T documentation for multi-receiver configurations in larger spaces.
What warranty applies? Carries the TOA manufacturer warranty. Contact Creation Networks for support and compatible IR-700 Series components.
