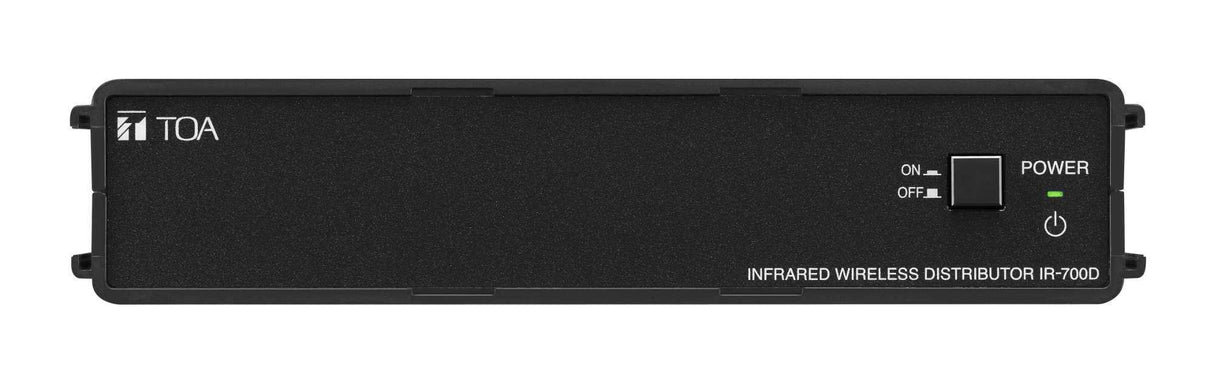

TOA Electronics Infrared Wireless Distributor - IR-700D US
Overview
DEAL: On Sale — The TOA IR-700D US is an infrared wireless distributor that centralizes signal routing from up to 4 IR receivers — and up to 16 with optional branch distributors — to the IR-702T tuner. Designed for the TOA Infrared Wireless Microphone System, it simplifies wiring in large venues or buildings where multiple receivers must cover irregular sightlines or non-contiguous coverage zones.
Description
The IR-700D US accepts signals from up to four IR-520R, IR-510R, or IR-500R receivers via 75 Ω BNC inputs, consolidating them into a single connection to the IR-702T tuner. By adding optional YW-1022 (2-way) or YW-1024 (4-way) branch distributors, the system can scale to 16 simultaneous receivers. An included AC mains adapter (50/60 Hz) powers the unit, which draws 25 W or less. The front filter section uses a polycarbonate optical cut filter to maintain signal integrity. Operating temperature range is -10 to +50°C, and the 1U-height form factor fits conveniently in equipment racks or AV cabinets.
Key Features
- 4 BNC receiver inputs — Accepts up to four IR-520R, IR-510R, or IR-500R receivers for centralized signal distribution.
- Scalable to 16 receivers — Add optional YW-1022 (2-way) or YW-1024 (4-way) branch distributors to expand coverage across large venues.
- Connects to IR-702T tuner — Routes combined IR signals from all connected receivers to the dual-channel tuner for clean, centralized processing.
- AC mains powered — Includes AC adapter for 50/60 Hz operation; 25 W or less power consumption.

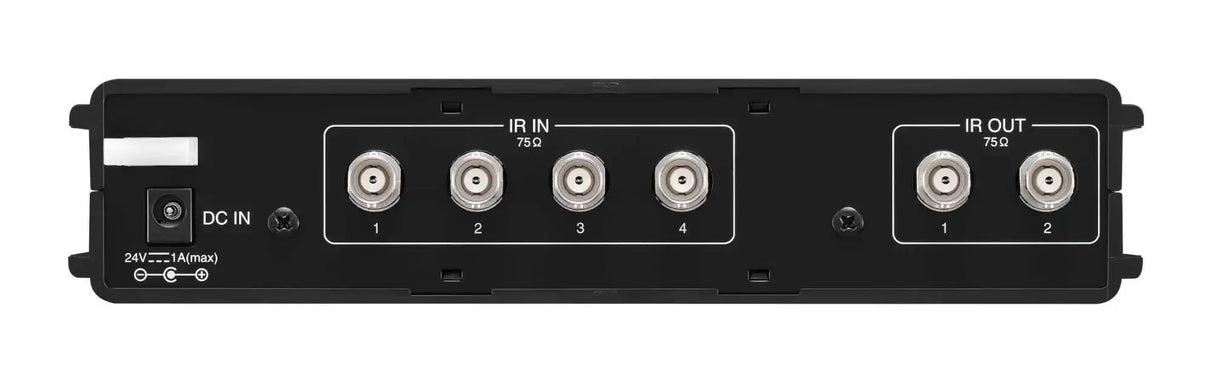

- 75 Ω BNC connectors — 6 total BNC connections (4 inputs, outputs for distributor daisy-chaining) for reliable coaxial signal integrity.
Technical Specifications
| Specification | Detail |
|---|---|
| Connectors | 75 Ω BNC ×6 |
| Compatible Receivers | IR-520R, IR-510R, IR-500R |
| Max Receivers (with optional distributors) | 16 (using YW-1022 and YW-1024) |
| Filter Section | Polycarbonate, optical cut filter |
| Power | AC mains 50/60 Hz (AC adapter included) |
| Power Consumption | 25 W or less |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Dimensions | 210 × 44 × 200.9 mm (8.27" × 1.73" × 7.91") |
| Weight | 640 g (1.41 lb) |
