TOA Electronics 8" Indoor Subwoofer System

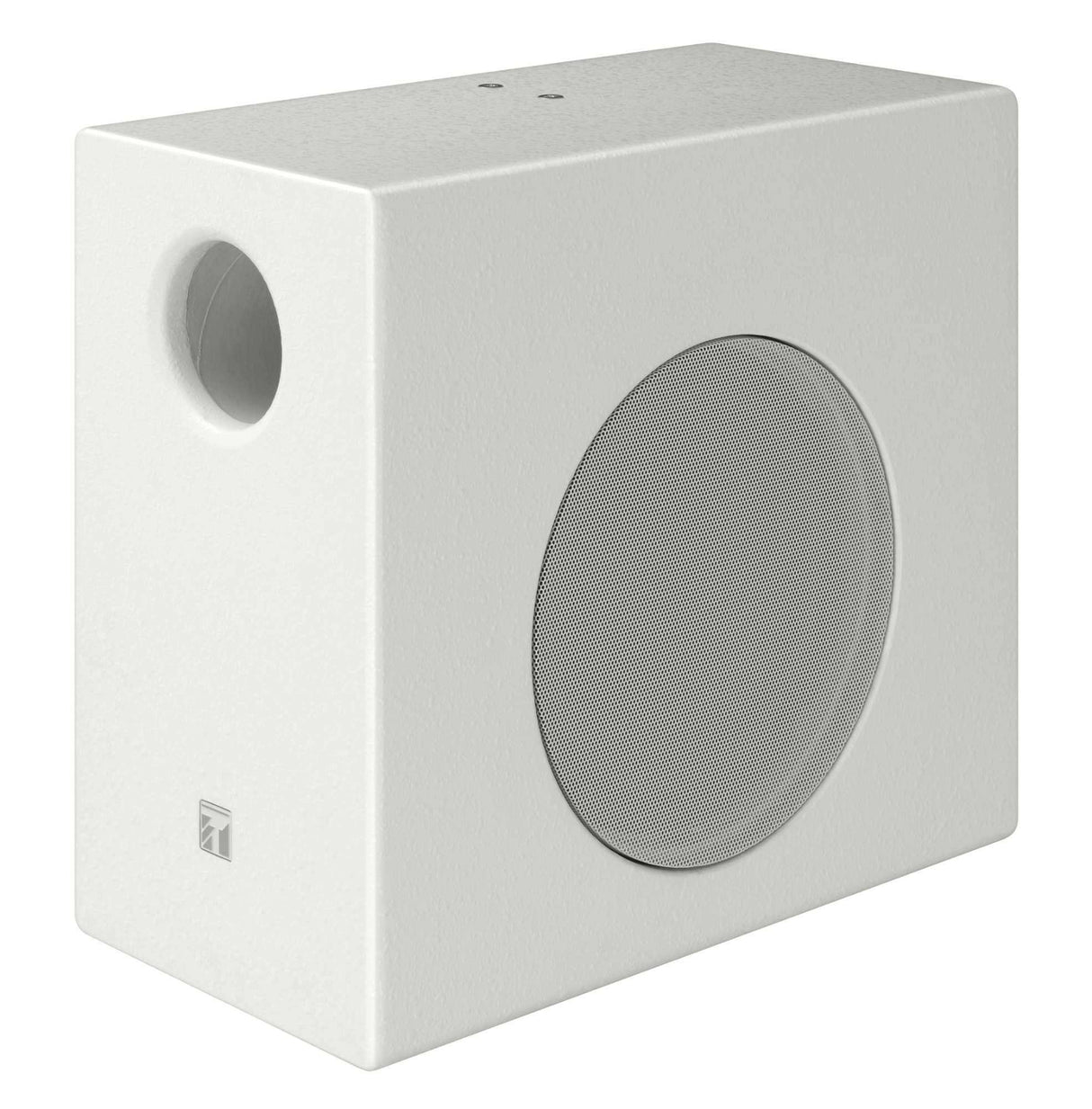

TOA Electronics 8" Indoor Subwoofer System - White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
TOA Electronics 8" Indoor Subwoofer System

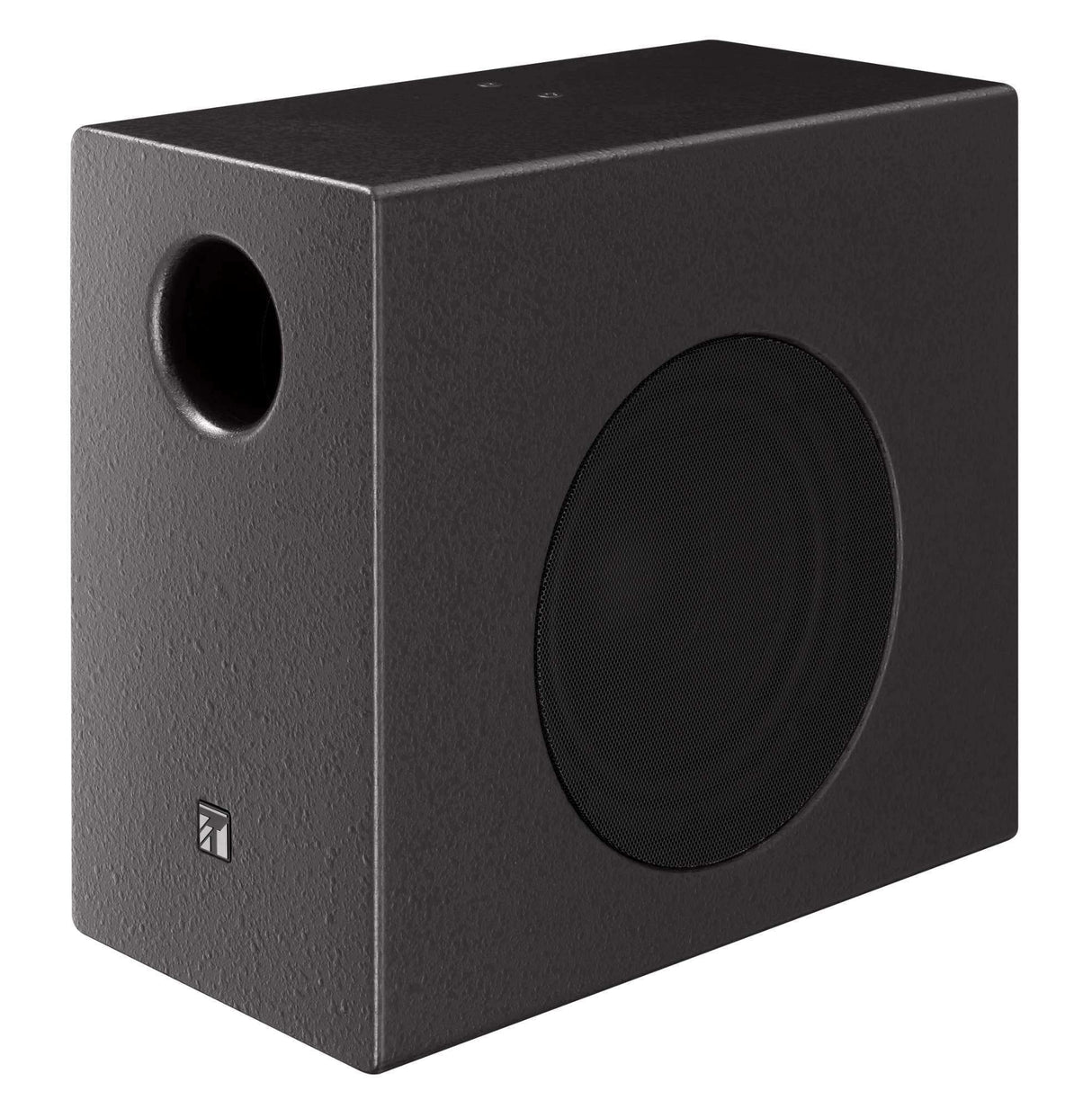

The TOA FB-08BT is an indoor subwoofer system engineered for commercial public address and background music installations. Featuring a high-performance 20 cm (8") bass-reflex enclosure, it delivers powerful low-frequency reinforcement from 45 to 300 Hz, filling spaces with clean, natural bass that complements foreground and background audio equally. The FB-08BT's built-in crossover network eliminates the need for external processors, making it straightforward to integrate with TOA's F-03 and F-05 satellite speakers for a complete, full-range distributed audio system.
The subwoofer supports both low-impedance direct wiring and high-impedance 70 V / 100 V constant-voltage line connections, with multiple power tap selections to optimize coverage across different space sizes. Optional wall and ceiling mounting brackets are available for versatile positioning.
Key Features
| Feature | Benefit |
|---|---|
| 8-inch bass-reflex enclosure | Delivers low-frequency extension from 45 Hz with natural, controlled bass |
| Built-in crossover network | Eliminates external processor requirements when paired with F-03/05 satellite speakers |
| 120 W rated / 240 W program power | Handles demanding continuous playback in commercial installations |
| 70 V / 100 V line compatibility | Integrates directly into distributed constant-voltage PA systems |
| Multiple power tap settings | Allows output level matching — 30 W, 60 W, or 100/120 W — to coverage area size |
| M4 screw terminal input | Provides secure, tool-free field wiring connections |
| Optional mounting brackets | Wall (HY-WM-FB08B) or ceiling (HY-CM-FB08B) mounting for flexible installation |
Typical Applications
The FB-08BT is suited for commercial venues where distributed audio systems require extended bass response. Typical deployments include retail stores, restaurants, hotel lobbies, conference halls, fitness facilities, entertainment venues, and sports facilities where the F-03 or F-05 satellite speakers form the main distributed system. It is also well-suited for houses of worship requiring low-frequency reinforcement without a large standalone subwoofer.
Technical Specifications
| Specification | Details |
|---|---|
| Enclosure Type | Bass-reflex |
| Driver | 20 cm (8") cone-type |
| Rated Input | 120 W (100 V line, 70 V line) |
| Power Handling | Rated noise: 120 W (8 Ω); Continuous program: 240 W (8 Ω) |
| Frequency Response | 45 – 300 Hz (–10 dB, ½ free sound field) |
| Sensitivity | 84 dB (1 W, 1 m, free field); 90 dB (1 W, 1 m, ½ free field) |
| Impedance | 8 Ω direct; 100 V: 83 Ω (120 W) / 167 Ω (60 W); 70 V: 50 Ω (100 W) / 83 Ω (60 W) / 167 Ω (30 W) |
| Input Terminal | M4 screw terminal |
| Installation Environment | Indoor only |
| Operating Temperature | –10 °C to +50 °C (14 °F to 122 °F) |
| Finish | Enclosure: MDF, black (RAL 9011); Grille: Steel plate, black (RAL 9011) |
| Dimensions | 200 (W) × 350 (H) × 400 (D) mm (7.87" × 13.78" × 15.75") |
| Weight | 16 kg (35.27 lb) |
| Optional Accessories | Wall bracket: HY-WM-FB08B; Ceiling bracket: HY-CM-FB08B |
FAQ
- What speakers does the FB-08BT pair with? It is designed to integrate with TOA F-03 and F-05 series satellite speakers using the built-in crossover, eliminating the need for an external signal processor.
- Does it support 70 V and 100 V line systems? Yes. The FB-08BT accepts both 70 V and 100 V constant-voltage line inputs with multiple impedance tap settings for precise level matching.
- Can it be mounted on a wall or ceiling? Yes, using optional accessory brackets HY-WM-FB08B (wall) or HY-CM-FB08B (ceiling). Mounting hardware is not included and must be sourced separately.
- Is the FB-08BT suitable for outdoor use? No. It is rated for indoor installation only and is not weather-resistant.
- What amplifiers are recommended? TOA recommends the DA-250DH, DA-250FH, DA-500FH, or A-5012 for high-impedance 70 V / 100 V systems to ensure optimal performance.
