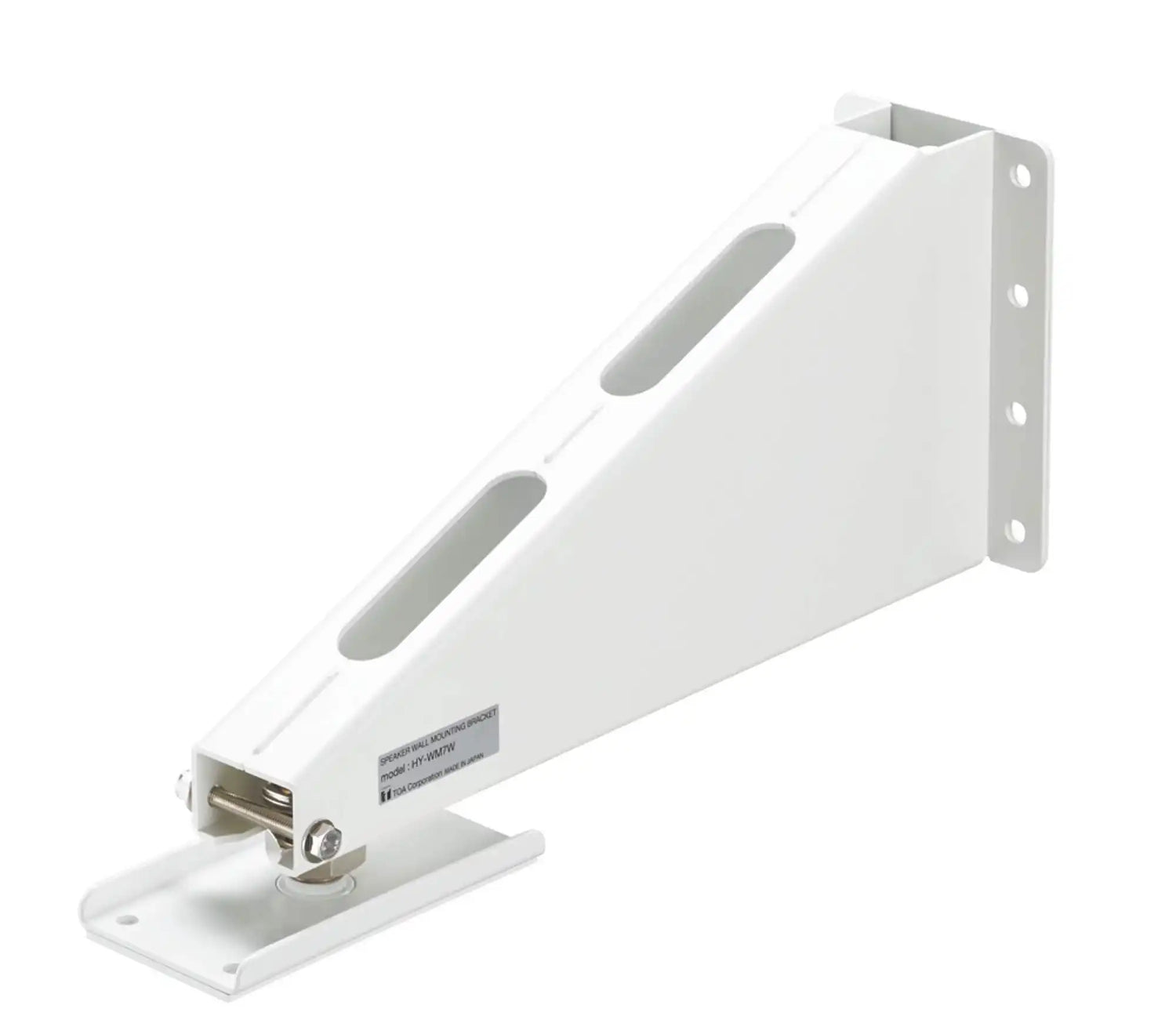

TOA Electronics HY-WM7 Wall Mounting Bracket

Overview

DEAL: On Sale — The TOA HY-WM7 is a steel wall mounting bracket for the HX-7W Variable Dispersion Array speaker system. Used in combination with the optional HY-VM7W Speaker Rigging Bracket, it provides a secure, adjustable wall mount that supports the full 180° horizontal pivot range required to aim the HX-7W in commercial AV and installed sound applications.

Description

The HY-WM7 consists of Bracket A and Bracket B, assembled with the included M8 upset-head bolts and paired with the HX-7W speaker via 4 included speaker mounting bolts. The steel plate construction with painted finish is engineered to support the weight and geometry of the HX-7W array, providing vibration-resistant wall mounting for permanent installations. When combined with the optional HY-VM7W speaker rigging bracket, the assembly enables precise horizontal aiming adjustments across a 180° arc for optimal sound coverage in irregularly shaped rooms.

Key Features

• Designed exclusively for HX-7W — Engineered to the exact mounting geometry of the TOA HX-7W Variable Dispersion Array speaker for secure, stable installation.
• 180° horizontal pivot — Full half-circle horizontal adjustment range for precise speaker aiming in any wall-mount scenario.
• Heavy-duty steel construction — Steel plate bracket with painted finish; 5 kg total assembly weight for robust, long-term stability.
• Complete hardware included — 4 speaker mounting bolts and all bracket hardware included for a complete installation kit.
• Pairs with HY-VM7W rigging bracket — Optional HY-VM7W Speaker Rigging Bracket enables combined wall+tilt rigging configurations for complex installations.

Typical Applications

The HY-WM7 is the correct wall mounting bracket for TOA HX-7W installations in commercial and institutional environments: concert halls, auditoriums, and performance venues using the HX-7W as a main or delay speaker cluster; houses of worship requiring precise horizontal coverage control for asymmetric seating arrangements; hotel ballrooms and conference centers deploying line arrays on perimeter walls for even speech intelligibility; and transportation hubs or sports facilities mounting HX-7W arrays for long-throw directional coverage.

Technical Specifications

FAQ

Can the HY-WM7 be used with the HX-7B (black) speaker?

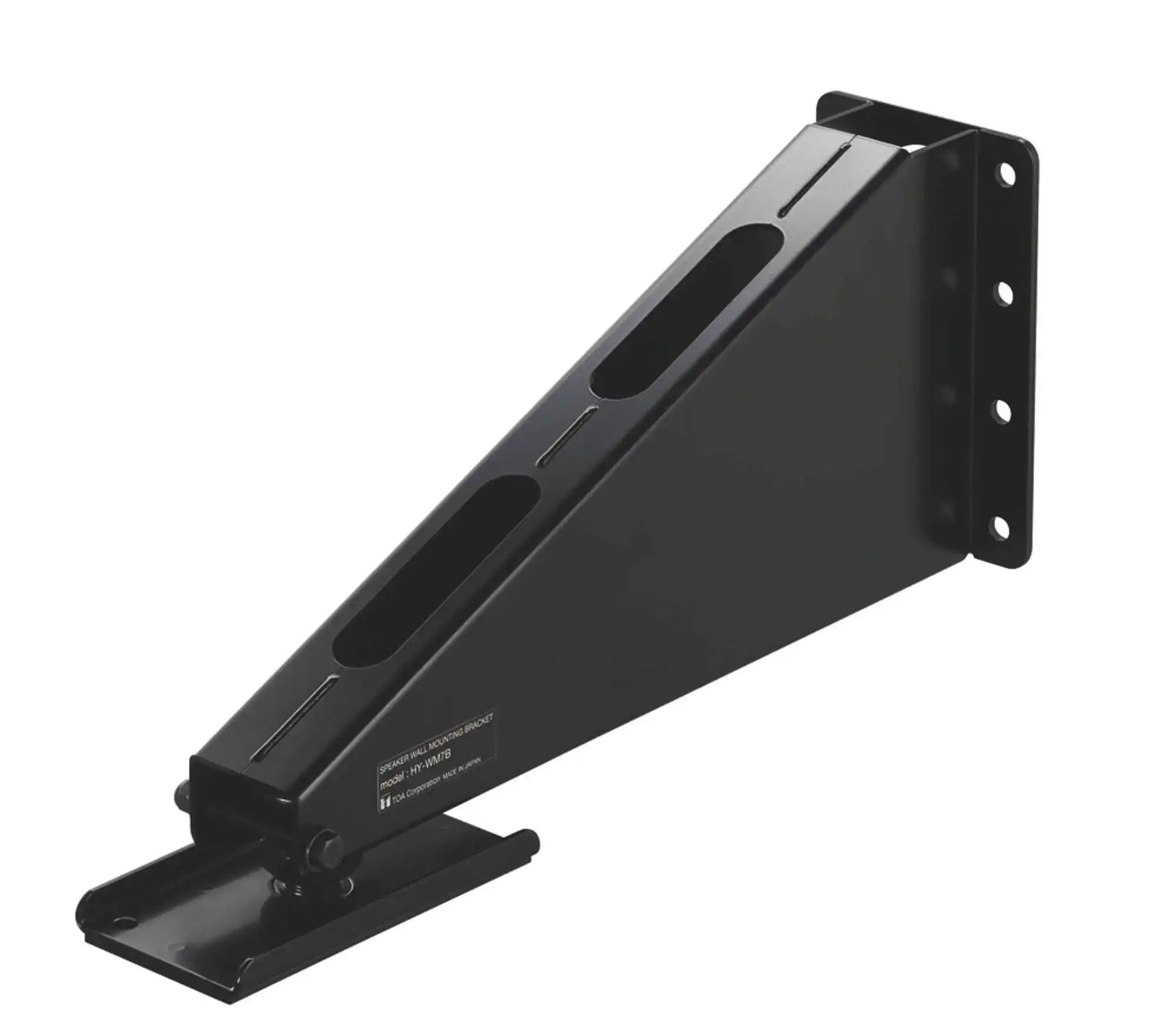

No — the HY-WM7 is specifically for the HX-7W (white) speaker. The matching bracket for the HX-7B black speaker is the HY-WM7B.

Is the HY-VM7W rigging bracket included with the HY-WM7?

No — the HY-VM7W Speaker Rigging Bracket is a separate optional accessory. The HY-WM7 is the wall bracket only.

What screws are included with the HY-WM7?

Four speaker mounting bolts are included. Wall fasteners appropriate for the specific wall substrate must be sourced separately.

What is the maximum horizontal adjustment range?

The HY-WM7 provides 180° of horizontal pivot for precise speaker aiming.

Is the HY-WM7 appropriate for outdoor installations?

The HY-WM7 is designed for indoor use with the HX-7W. For outdoor or weatherproof line array mounting, refer to TOA’s SR-S series outdoor bracket options.
