TOA Electronics HY-MS7-WP Speaker Wall Mounting Bracket Assembly for HX-7 Series

Product Overview

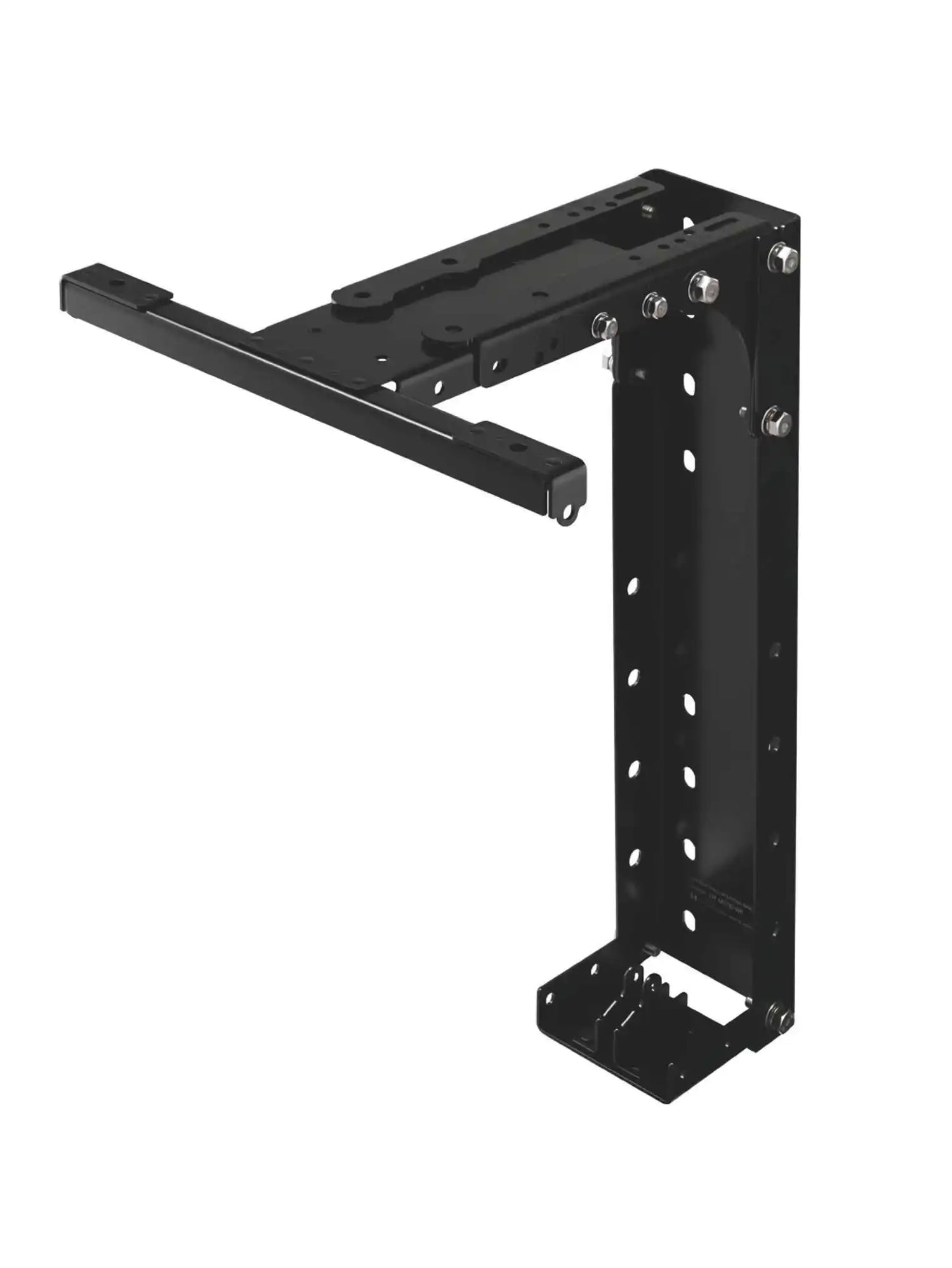

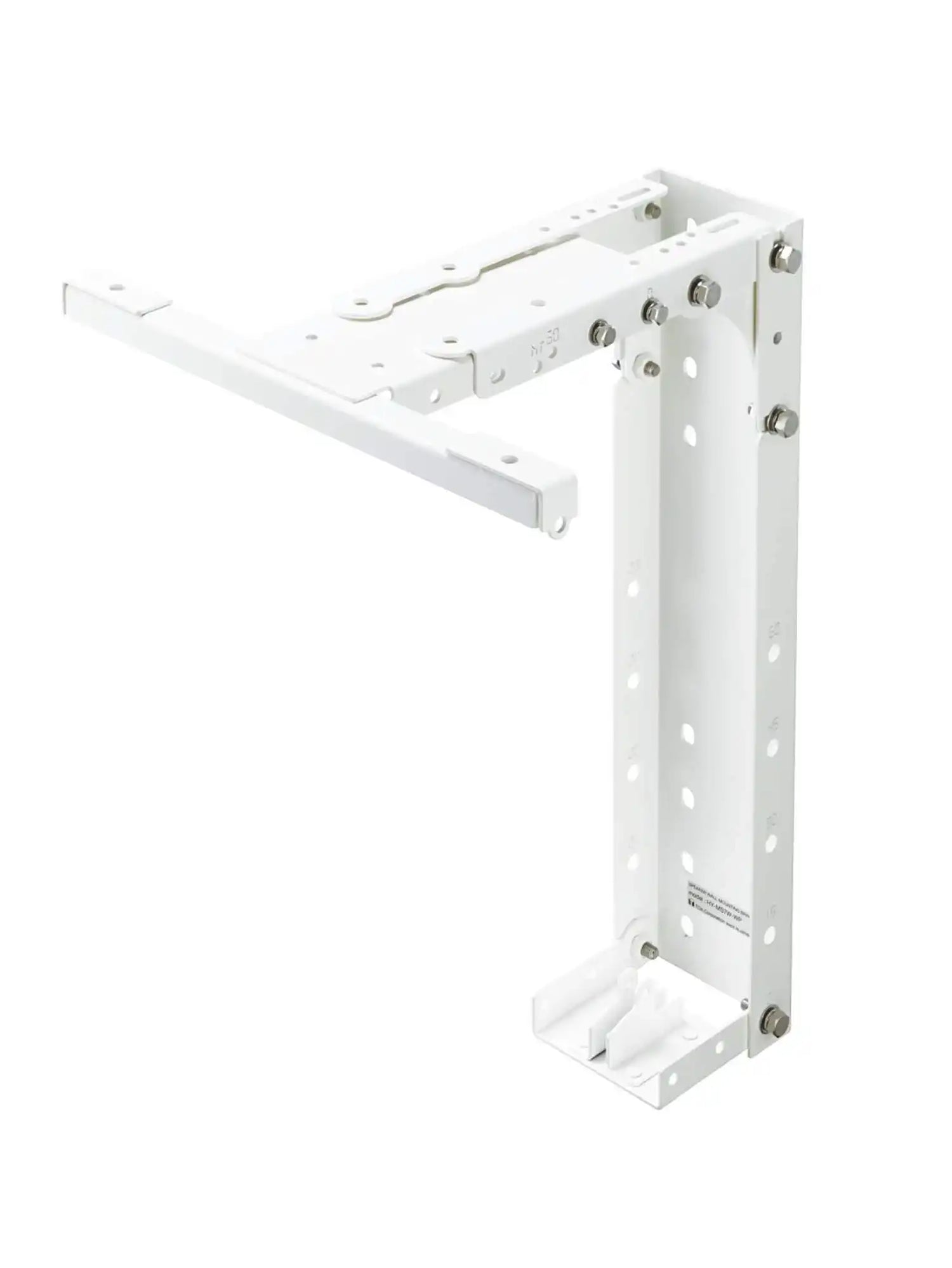

The TOA HY-MS7-WP is a weatherproof wall mounting bracket assembly for the HX-7 series variable-dispersion array speakers, designed for installation on walls and under outdoor eaves. It provides a secure, adjustable mounting solution for HX-7W-WP and HX-7B-WP loudspeakers in exposed and semi-exposed locations. The assembly also includes provision to mount an MT-200 matching transformer directly to the bracket.

Product Description

The HY-MS7-WP supports clean, durable installation of TOA HX-7 series array speakers where outdoor exposure is a factor, such as building exteriors and covered walkways. The assembly comprises a set of brackets — a T-bracket, mode brackets (left and right), L-brackets (left and right), a base bracket, and a bottom bracket — along with the speaker mounting bolts, bracket mounting bolts, and matching-transformer mounting nuts needed for assembly. The built-in provision for an MT-200 matching transformer lets installers add high-impedance 70V/100V operation at the speaker location without a separate enclosure. Because it is part of the HX-7 mounting ecosystem, it pairs with the corresponding HX-7W-WP and HX-7B-WP loudspeakers for venue and outdoor sound systems. For compatible speakers and additional mounting hardware, browse the TOA HX-7 selection at Creation Networks.

Key Features

• HX-7 series compatibility — Mounts HX-7W-WP and HX-7B-WP variable-dispersion array speakers.
• Weatherproof wall mounting — Suited to walls and outdoor eaves for exposed installations.
• MT-200 transformer provision — Allows an MT-200 matching transformer to mount directly to the bracket for 70V/100V operation.
• Complete bracket assembly — Includes T-, mode, L-, base, and bottom brackets for a full mounting solution.
• Hardware included — Ships with speaker mounting bolts, bracket mounting bolts, and transformer mounting nuts.
• Adjustable positioning — Bracket set supports aiming the speaker for target coverage.

Typical Applications

• House of worship
• Auditorium
• Government space

Technical Specifications

Frequently Asked Questions

Which speakers does the HY-MS7-WP fit? It is designed to mount TOA HX-7 series weatherproof array speakers, specifically the HX-7W-WP and HX-7B-WP.

Can it be used outdoors? Yes. It is a weatherproof assembly intended for walls and under outdoor eaves.

Does it support a matching transformer? Yes. The bracket has provision to mount an MT-200 matching transformer directly, enabling 70V/100V high-impedance operation.

What is included in the assembly? It includes the T-, mode, L-, base, and bottom brackets plus the speaker bolts, bracket bolts, and transformer mounting nuts.

How does it integrate into an AV system? It positions and secures HX-7 array speakers for outdoor or wall installations and supports adding a matching transformer for distributed 70V/100V lines.

Is warranty and support available? Yes. TOA products carry the manufacturer's warranty; contact Creation Networks for warranty details and installation support.
