TOA HY-CW1 – Ceiling Mounting Bracket for HX-5 Speakers
TOA HY-CW1 Overview

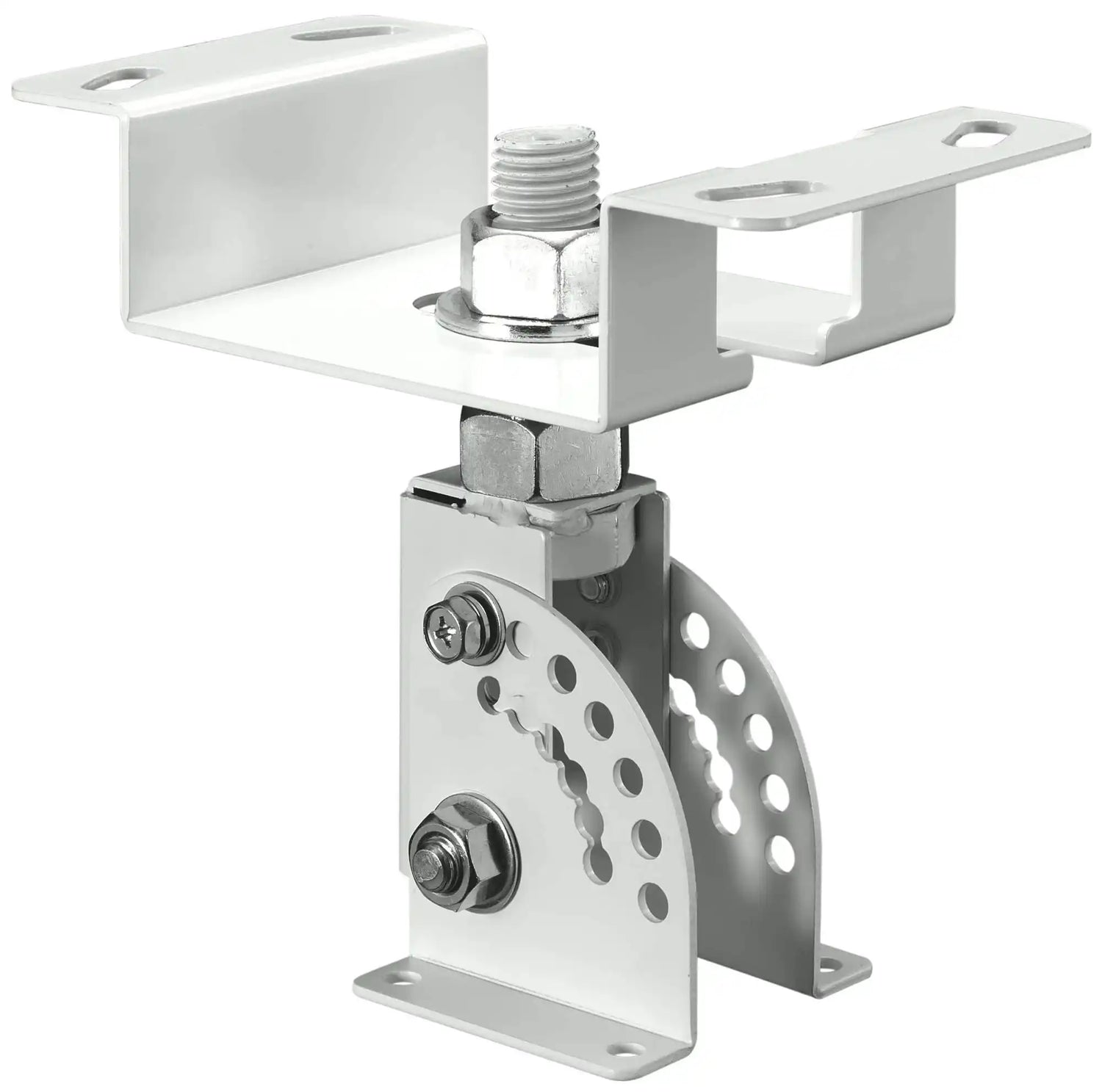

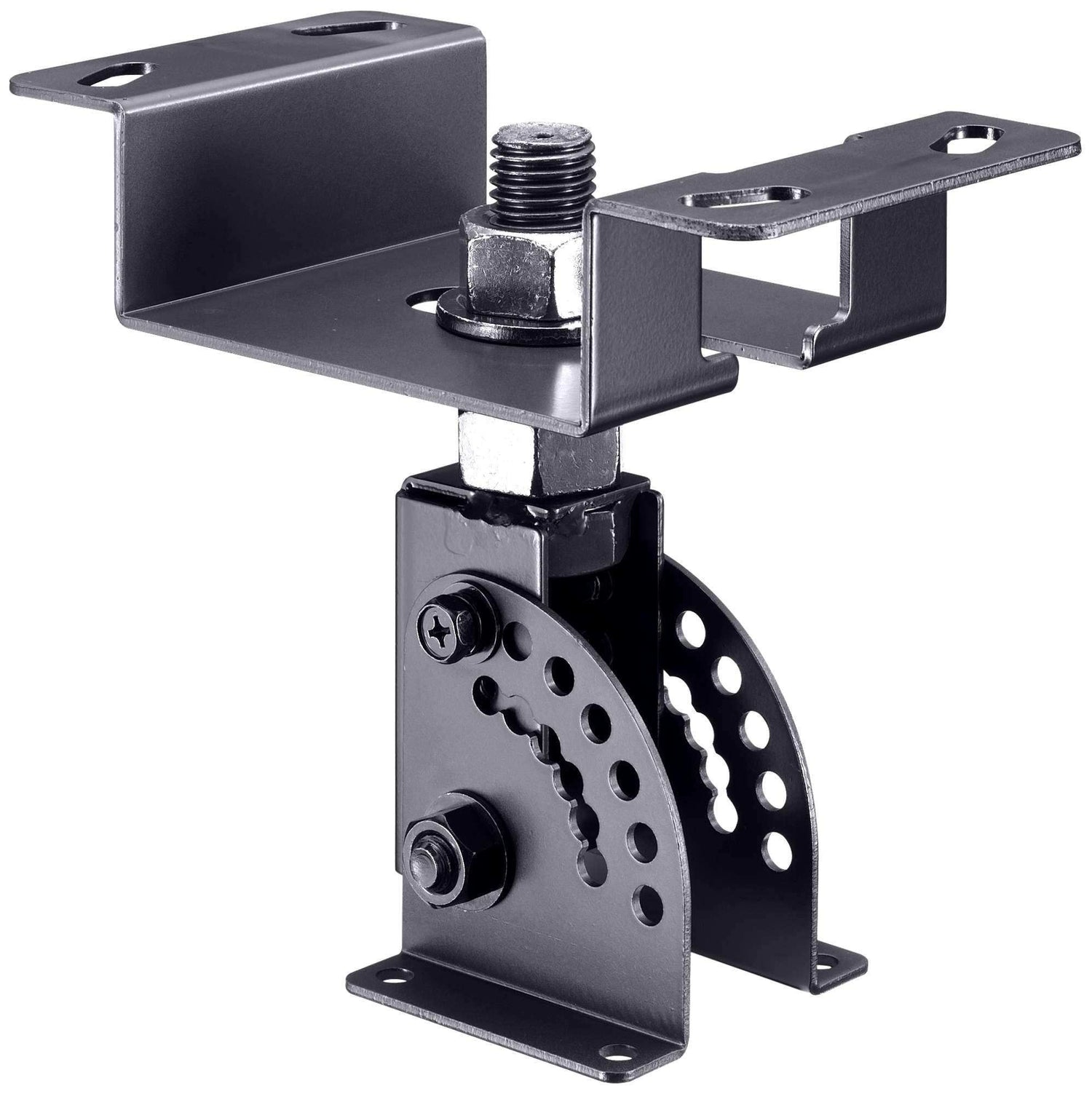

The TOA HY-CW1 is a ceiling mounting bracket for the HX-5B compact column array speaker. It provides 360° horizontal rotation and up to 82.5° of vertical tilt adjustment, allowing the HX-5B to be aimed precisely at the coverage zone from a ceiling mount point. The steel bracket attaches to the ceiling using four M8 bolts (included) and is finished in semi-gloss black to match the HX-5B speaker.
Key Features
- Compatible with the TOA HX-5B compact column array speaker
- 360° horizontal rotation for flexible speaker aiming from ceiling mount point
- Up to 82.5° vertical tilt adjustment for precise coverage control
- Steel construction with semi-gloss black finish to match the HX-5B
- Attaches to ceiling with four M8 bolts (included)
Technical Specifications
| Compatible Speaker | HX-5B |
|---|---|
| Horizontal Rotation | 360° |
| Vertical Tilt | Up to 82.5° |
| Material | Steel |
| Finish | Semi-gloss black |
| Dimensions | 120 × 200 × 220 mm (4.72″ × 7.87″ × 8.66″) |
| Weight | 2.0 kg (4.41 lb) |
| Mounting Hardware | 4 × M8 bolts (included) |
