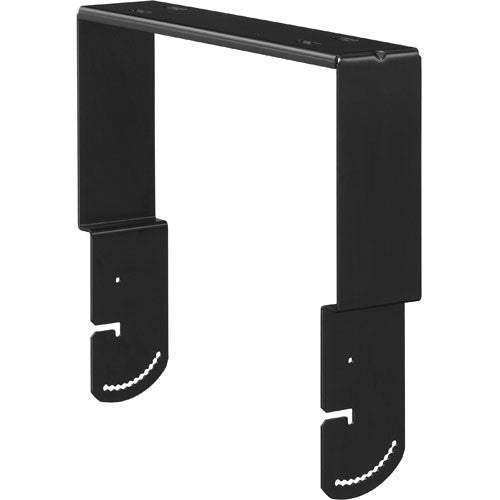

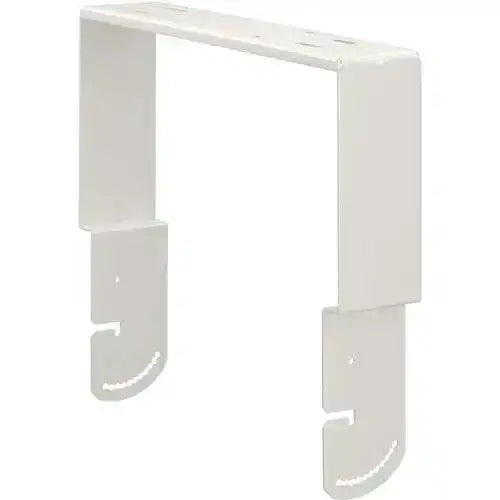

TOA HY-1500V – Vertical Speaker Mounting Bracket

Product Overview

The TOA HY-1500V is a vertical wall and ceiling mounting bracket for TOA speaker systems that require steep downward aiming. It holds the speaker on a steel yoke and allows a wide vertical tilt so sound can be directed down onto an audience from a high mounting point. As a TOA vertical speaker mounting bracket, the HY-1500V is intended for commercial installations on walls and hard ceilings. It provides a rigid, adjustable platform that locks the chosen angle in place.

The HY-1500V is the vertical-orientation counterpart for installs where a speaker hangs high and must project downward into the listening area. Its steel construction supports permanent commercial mounting, and the slotted hole pattern gives installers room to land fasteners on studs, structural ceilings, or backing plates. The bracket's wide vertical adjustment lets technicians point the coverage pattern from a slight downward angle to nearly straight down, which is valuable in tall rooms, atriums, and balcony-front locations. Once aimed, the angle locks so coverage stays put through years of service. Vertical aiming improves intelligibility when listeners are well below the speaker, reducing reflections off far walls. The bracket uses the hardware the speaker specifies and lets the cable route cleanly behind the assembly for a finished look. Because positioning is repeatable, commissioning multiple speakers to matched angles is straightforward. For contractors outfitting large or tall commercial spaces, the HY-1500V is a durable, serviceable mounting solution.

Key Features

• Wide Vertical Aim — Tilts the speaker from a slight downward angle to nearly straight down for high-mount coverage.
• Heavy-Gauge Steel — Delivers a rigid, permanent platform for commercial walls and structural ceilings.
• Flexible Anchor Pattern — Slotted holes let installers reach solid studs, decks, or backing plates for a secure fix.
• Lockable Positioning — Holds the aimed angle after commissioning so coverage stays consistent over time.
• Improves Intelligibility — Directs sound down onto listeners below the speaker, reducing distracting far-wall reflections.

Technical Specifications

Specifications are per the TOA datasheet and subject to change without notice.
