TOA HY-1500H – Horizontal Speaker Mounting Bracket
Product Overview

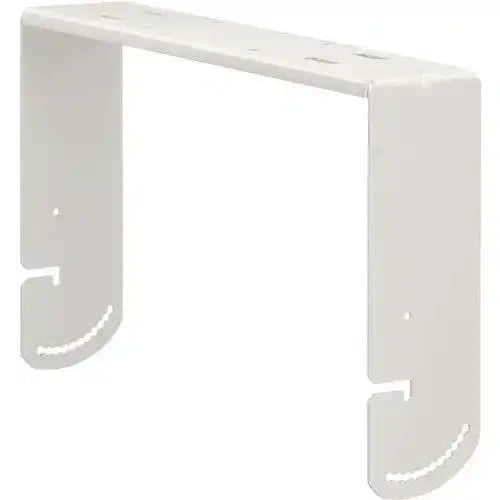

The TOA HY-1500H is a horizontal wall and ceiling mounting bracket for TOA speaker systems that need precise horizontal aiming. It carries the speaker on a sturdy steel yoke and allows the coverage angle to be tilted and locked for even sound across a room. As a TOA horizontal speaker mounting bracket, the HY-1500H is built for commercial installs where speakers hang from a wall or hard ceiling. It gives integrators a strong, adjustable platform that holds aim once set.
The HY-1500H is engineered for permanent commercial mounting rather than light-duty use. Its steel construction and slotted mounting pattern let installers fasten it securely to wall studs, structural ceilings, or backing plates, and the multiple holes and slots give flexibility to hit solid anchor points. Once the speaker is hung, the bracket's adjustable tilt lets the technician aim the coverage pattern down into the listening area and lock it so it does not drift over time. Horizontal orientation is the right choice when a speaker is mounted high on a wall and must throw across a wide room such as a gymnasium, worship space, or large retail floor. Because aiming is repeatable and lockable, system commissioning is faster and coverage stays consistent. The bracket accepts the mounting hardware the speaker specifies and routes the speaker cable cleanly behind the assembly. For contractors who need durable, serviceable mounting, the HY-1500H is a dependable choice across a building's speaker count.
Key Features
- Adjustable Horizontal Aim — Tilts and locks the speaker so coverage is aimed precisely into the listening area and holds over time.
- Heavy-Gauge Steel — Provides a strong, permanent mounting platform suitable for commercial walls and structural ceilings.
- Flexible Anchor Pattern — Multiple mounting holes and slots let installers reach solid studs, decks, or backing plates.
- Lockable Positioning — Keeps the aimed angle fixed after commissioning for consistent, repeatable coverage.
- Clean Cable Routing — Lets the speaker cable run neatly behind the assembly for a tidy finished installation.
Technical Specifications
| Type | Horizontal wall / ceiling speaker mounting bracket |
| Dimensions | 294 x 485.4 x 288 mm (11.57 x 19.11 x 11.34 in.) |
| Mounting Holes | 4 x ø8.5 mm (0.33 in.) |
| Mounting Slots | 4 x 11 x 36 mm (0.43 x 1.42 in.) |
| Angle Adjustment | 15° upward to 60° downward |
| Material | Steel |
Specifications are per the TOA datasheet and subject to change without notice.
