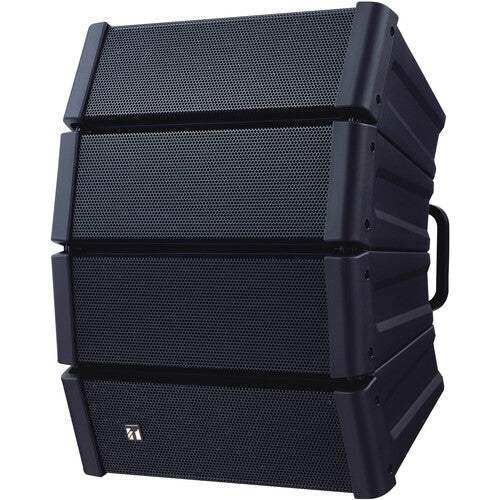

TOA Electronics HX-7-WP 750W Variable Dispersion Speaker (Weatherproof)

Product Overview

The TOA HX-7-WP weatherproof variable dispersion speaker is a 750W two-way loudspeaker engineered for clear sound in spaces with long reverberation times or high background noise. Built for installation under eaves and in weather-exposed locations, this commercial-grade loudspeaker uses wavefront-control technology and adjustable vertical dispersion to keep coverage accurate across large areas. It shares the acoustic platform of the indoor HX-7 while adding weather resistance for outdoor and semi-outdoor projects.

Product Description

The HX-7-WP is a four-module, two-way system whose vertical dispersion angle can be adjusted to optimize coverage for each venue. A built-in isophasic wavefront-control horn with a compression driver provides precise high-frequency control and superior reproduction of high-frequency content. A 0-degree mode allows the modules to form an effective line array for long-throw coverage, while angled modes widen vertical dispersion for closer audiences. With 750 W program power handling and 100 dB sensitivity, it provides high output for stadiums, courtyards, and large reverberant rooms. The unit is intended for mounting under eaves when used outdoors. For strictly indoor projects, the standard TOA HX-7 shares the same design, and compatible TOA power amplifiers are available on Creation Networks.

Key Features

• Weather-resistant design — Built for installation under eaves and in weather-exposed outdoor locations.
• 750W power handling — Delivers 750 W continuous program at 8 ohms for high-output coverage of large spaces.
• Variable vertical dispersion — Four integrated modules adjust individually to optimize vertical coverage for each site.
• Isophasic wavefront horn — Built-in horn with compression driver ensures precise high-frequency control and clear reproduction.
• Line-array mode — A 0-degree setting links the modules into an effective line array for long-throw applications.
• 100 dB sensitivity — High sensitivity pairs efficiently with standard low-impedance amplifiers.

Typical Applications

• House of worship
• Auditorium
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

• Can the HX-7-WP be installed outdoors? Yes. It is weather-resistant and designed to be installed under eaves when used outdoors.
• How is it different from the standard HX-7? The HX-7-WP shares the same two-way variable-dispersion acoustic design but adds weather resistance for outdoor and semi-outdoor use.
• What amplifier should I use? It is an 8-ohm passive loudspeaker rated to 750 W program, so pair it with a low-impedance amplifier delivering appropriate power per channel.
• Does it support line-array configuration? Yes. The 0-degree mode links its four modules into an effective line array for long-throw coverage.
• How do I adjust coverage? Each of the four modules can be angled individually to set the vertical dispersion for the room or outdoor area.
