TOA HX-5B 600W Indoor Variable Dispersion Line Array Speaker
The TOA HX-5B is a 2-way modular variable dispersion line array speaker designed for indoor installations where precise coverage control and high output are required. Each unit delivers 600W continuous program power at 8Ω through four 4.72" (12 cm) cone-type woofers and twelve 1" balanced dome tweeters, with adjustable vertical dispersion angles of 15°, 30°, 45°, or 60° set on-site using the included hex wrench. Horizontal coverage is a constant 100° above 2 kHz regardless of vertical angle, providing consistent left-right dispersion without the need for multiple aim points.

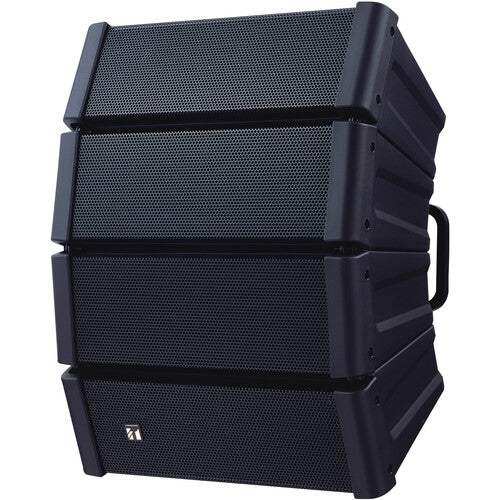

Ideal for spaces with long reverberation times or high background noise, the HX-5B's line array design maintains controlled directivity to direct sound at the audience and reduce energy hitting reverberant surfaces. Up to four units can be stacked vertically to increase output or extend vertical throw. The polypropylene enclosure with steel grille is finished in black. The optional MT-200 matching transformer adds 70.7V constant-voltage line support with 30, 60, 100, and 200W power taps. Input connections include two parallel speakON NL4 sockets plus an M4 screw terminal for daisy-chaining.
| Feature | Benefit |
|---|---|
| Adjustable Vertical Dispersion (15°, 30°, 45°, 60°) | On-site coverage angle adjustment with included hex wrench — optimizes the pattern for the specific room geometry |
| 100° Constant Horizontal Coverage | Consistent left-right dispersion regardless of vertical angle setting |
| 600W Continuous Program Power | High output for large venues, auditoriums, and high-ambient-noise environments |
| 4× 4.72" Woofers + 12× 1" Dome Tweeters | Full-range two-way performance with smooth on- and off-axis response across all dispersion angles |
| Line Array Directivity | Concentrates sound on the audience — reduces reflections off ceilings and walls in reverberant spaces |
| Up to 4 Units Stackable | Extend vertical coverage or increase SPL output by arraying multiple units |
| Dual speakON NL4 Pass-Through | Wired in parallel for easy daisy-chain connection to additional units |
| MT-200 Transformer Compatibility | Supports 70.7V constant-voltage distributed speaker lines with 30–200W power taps |
Typical Applications
The TOA HX-5B is suited for gymnasiums and sports arenas, hotel ballrooms and convention halls, houses of worship with high ceilings or long reverb times, transit terminals and airport concourses, performing arts centers, large conference halls, outdoor covered pavilions, and any venue where controlled directivity and high output are required in a compact, aesthetically clean package.
| Specification | Details |
|---|---|
| Enclosure Type | Sealed, modular — polypropylene (black) |
| Power Handling | 200W continuous pink noise / 600W continuous program |
| Impedance | 8Ω |
| Sensitivity | 99 dB (15°), 98 dB (30°), 97 dB (45°), 96 dB (60°) |
| Frequency Response | 110 Hz–20 kHz at 15° / 105 Hz–20 kHz at 30° / 100 Hz–20 kHz at 45° / 70 Hz–20 kHz at 60° (all -10 dB) |
| Crossover Frequency | 4 kHz |
| Directivity — Horizontal | 100° (above 2 kHz) |
| Directivity — Vertical | 15°, 30°, 45°, or 60° (adjustable on-site) |
| LF Driver | 4.72" (12 cm) cone-type × 4 |
| HF Driver | 1" (25 mm) balanced dome-type × 12 |
| Input Connectors | 2× speakON NL4 (parallel) + M4 screw terminal |
| Installation Environment | Indoor only |
| Dimensions (W × H × D) | 408 × 546 × 342 mm (16.1" × 21.5" × 13.5") |
| Weight | 16 kg (35.3 lb) |
| Included Accessories | Hanging bracket × 2, Hex wrench × 1 |
| Aspect | TOA HX-5B (Indoor) | TOA HX-5B-WP (Outdoor) | TOA SR-H3L Slim Array |
|---|---|---|---|
| Weather Rating | Indoor only | IPX4 splash-proof | Indoor only |
| Power | 600W continuous program | 600W continuous program | 360W continuous program |
| Coverage — Vertical | Adjustable 15°–60° | Adjustable 15°–60° | 0° (line source) |
| Coverage — Horizontal | 100° constant | 100° constant | 90° |
| Height | 546 mm | 546 mm | 1186.4 mm |
| Hardware | Standard steel | Stainless steel | Standard steel |
| 70V Line Support | Yes (optional MT-200) | Yes (optional MT-200) | Yes (optional MT-S0301) |
FAQ
- Can the coverage angle be adjusted after installation? Yes — vertical dispersion is adjustable on-site to 15°, 30°, 45°, or 60° using the included hex wrench, without replacing any components.
- Is the HX-5B rated for outdoor use? No — the HX-5B is designed for indoor installations only. For outdoor or semi-exposed environments, use the HX-5B-WP (IPX4-rated weatherproof version).
- Does it support 70V/100V distributed PA systems? Yes, with the optional MT-200 matching transformer, providing 30, 60, 100, and 200W taps for 70.7V line applications.
- How many units can be stacked? Up to four HX-5B units can be stacked vertically to increase output or extend vertical coverage using available rigging accessories.
- What amplifier power is recommended? Use an amplifier rated at or above 200W continuous (600W peak) per channel into 8Ω for full-range operation at rated output.
- What mounting accessories are compatible? TOA offers rigging frame (HY-PF1), ceiling (HY-CW1), wall (HY-WM1/HY-WM2), and stand adapter (HY-ST1) brackets — contact your TOA dealer for compatibility details.
