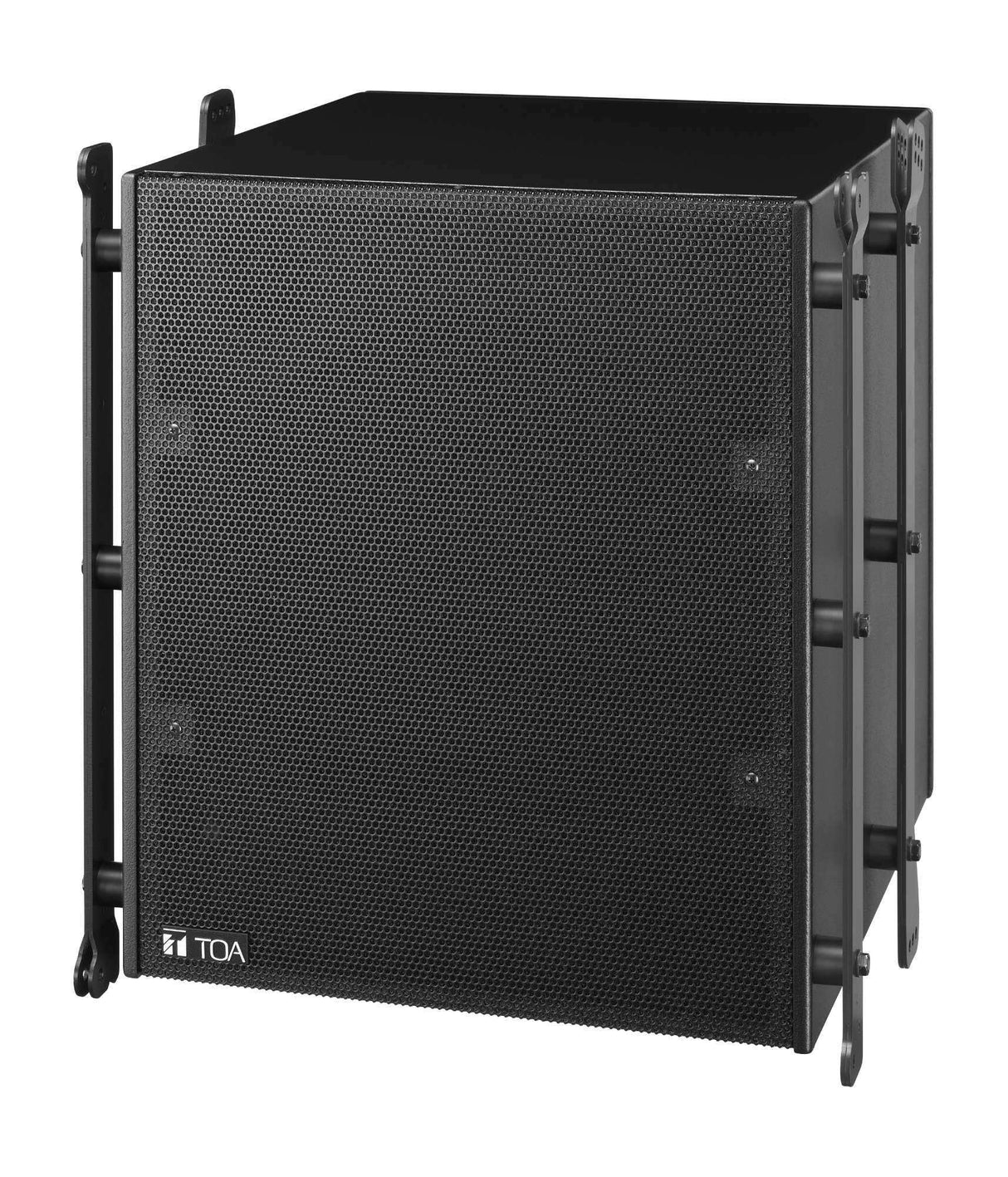

TOA Electronics High Performance Subwoofer - SR-C15B
Product Overview
The TOA SR-C15B is a high-performance 15-inch passive subwoofer designed to extend low-frequency output for the SR-C8L and SR-C8S line array speakers. As a dedicated line array subwoofer, it delivers deep, controlled bass for auditoriums, houses of worship, and large multi-purpose rooms where full-range reinforcement is required. TOA recommends pairing it with the DP-SP3 digital speaker processor for optimal crossover and tuning.
Product Description
The SR-C15B uses a 38 cm (15") cone driver in a bass-reflex enclosure to reproduce the low-frequency range that compact line array cabinets cannot cover on their own. With the recommended DP-SP3 parameters applied, it operates from 40 Hz to 400 Hz with a 125 Hz crossover, integrating cleanly beneath an SR-C8 array for music playback, speech reinforcement, and event audio.
The enclosure is fitted with M8 threaded steel plates for secure attachment of optional suspension and stand-mount brackets, and input is provided on both a screw terminal and two Neutrik NL4 sockets for flexible wiring. To build a complete system, pair the SR-C15B with the TOA SR-C8L long-throw line array or browse other TOA line array speakers.
Key Features
- 15-inch low-frequency driver — A 38 cm cone driver in a bass-reflex enclosure delivers deep, high-output bass for large rooms.
- Line array companion — Engineered to extend the low end of SR-C8L and SR-C8S line array speakers.
- High power handling — Rated for 450 W continuous program power for demanding playback and reinforcement.
- DP-SP3 optimization — Recommended processor parameters provide a 40–400 Hz response with a 125 Hz crossover.
- Rigging-ready enclosure — M8 threaded steel plates allow secure attachment of optional suspension and stand-mount brackets.
- Flexible connections — M4 screw terminal plus two Neutrik NL4MPXX connectors support permanent and portable installs.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- All-hands room
Technical Specifications
| Enclosure | Bass-reflex type |
| Power Handling | Continuous program: 450 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 93 dB (1 W, 1 m) |
| Frequency Response | 40 – 400 Hz (with recommended DP-SP3 parameters) |
| Crossover Frequency | 125 Hz (with recommended DP-SP3 parameters) |
| Speaker Component | 38 cm (15") cone-type |
| Input Connector | M4 screw terminal + 2 × Neutrik NL4MPXX |
| Finish | Enclosure: plywood, black urethane paint; grille: punched steel, black |
| Dimensions | 526.6 (W) × 594.8 (H) × 550 (D) mm (20.73" × 23.42" × 21.65") |
| Weight | 41 kg (90.39 lb) |
| Optional Accessories | SR-RF8 rigging frame |
Frequently Asked Questions
Which speakers does the SR-C15B pair with?
It is designed to extend the low-frequency range of the TOA SR-C8L and SR-C8S line array speakers.
Is a processor required?
TOA recommends the DP-SP3 digital speaker processor, which supplies the crossover and tuning parameters used to achieve the rated 40–400 Hz response.
Can the SR-C15B be suspended?
Yes. The enclosure includes M8 threaded steel plates for attaching the optional SR-RF8 rigging frame and other accessory brackets.
What is the power handling?
The subwoofer is rated for 450 W continuous program power at an 8 Ω rated impedance.
What wiring options are supported?
Input is available on an M4 screw terminal and two Neutrik NL4MPXX connectors for both fixed-install and portable use.
Is it suitable for large venues?
Yes. Its 15-inch driver and high power handling make it well suited to auditoriums, worship spaces, and multi-purpose rooms paired with an SR-C8 array.
