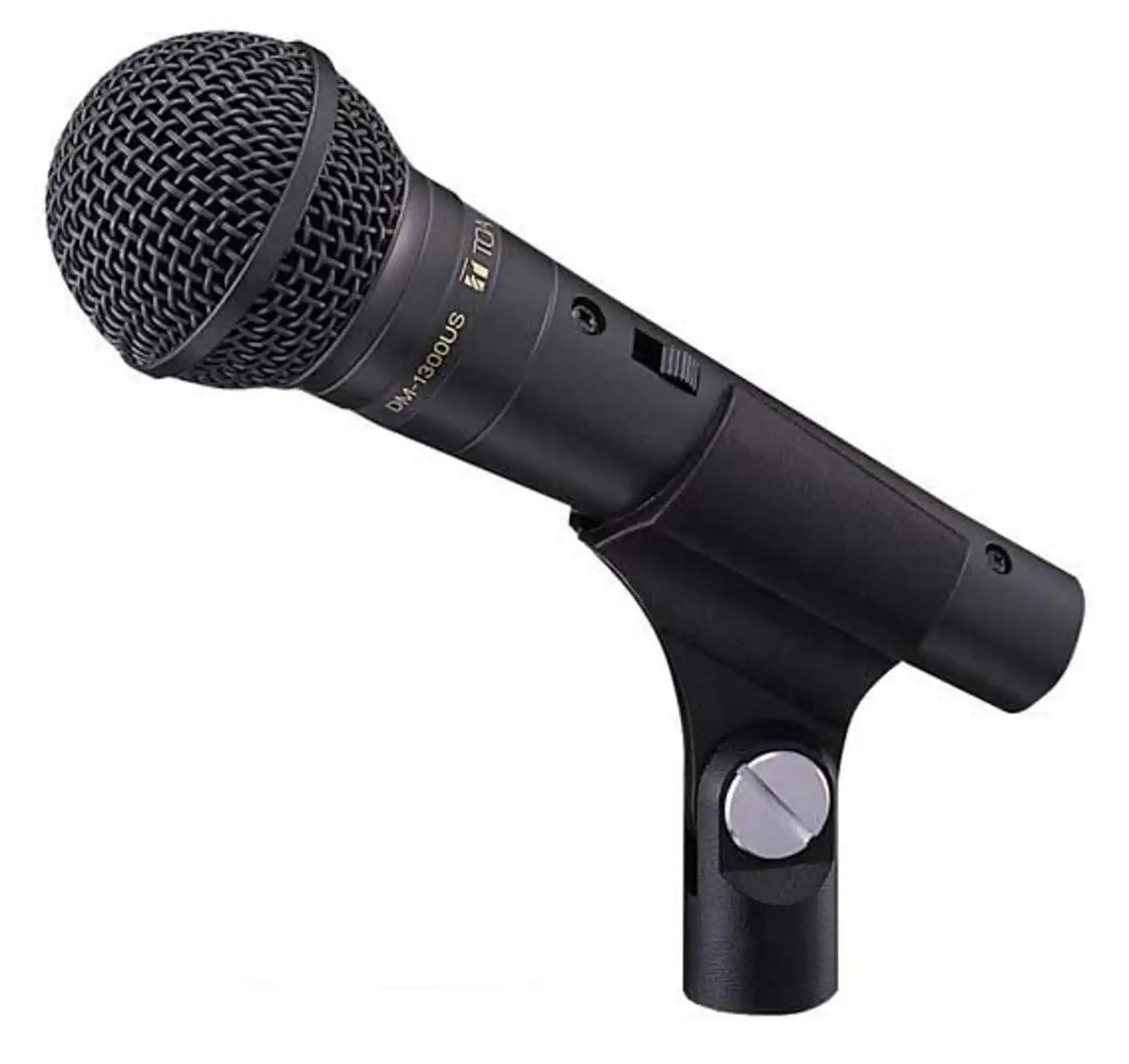

TOA DM-1300US – Cardioid Dynamic Handheld Microphone
Product Overview
The TOA DM-1300US is a cardioid dynamic handheld microphone for live vocal and speech applications. Its moving coil transducer and unidirectional pickup pattern deliver clear, focused audio while rejecting off-axis sound, making it a dependable choice for podiums, stages, and general PA use.
Product Description
The DM-1300US features a moving coil element with a cardioid polar pattern that rejects sound arriving from the rear and sides. The balanced 600 ohm output connects via an XLR-3-11C 3-pin connector for direct connection to any standard balanced mic input. An onboard slide switch provides short-off muting for quick cutoff without losing the connection. The die-cast zinc body is finished in metallic gray, providing durability suitable for regular handling in performance and presentation environments. A microphone holder (NS5/8 threads) and a 5/8 in. to 3/8 in. thread adapter are included. Sensitivity is -54 dB (0 dB = 1 V/Pa) and frequency response spans 70 Hz to 15 kHz.
Key Features
- Cardioid dynamic moving coil handheld microphone for speech and vocal applications
- Unidirectional polar pattern rejects rear and side noise for clear on-axis pickup
- Balanced 600 ohm output via XLR-3-11C 3-pin connector
- Onboard slide switch with short-off muting for quick cutoff
- Sensitivity -54 dB (0 dB = 1 V/Pa); frequency response 70 Hz to 15,000 Hz
- Die-cast zinc body, metallic gray; includes mic holder (NS5/8) and thread adapter
Technical Specifications
| Transducer Type | Moving coil (dynamic) |
|---|---|
| Polar Pattern | Unidirectional (cardioid) |
| Output Impedance | 600 Ω balanced |
| Sensitivity | -54 dB (0 dB = 1 V/Pa, at 1 kHz) |
| Frequency Response | 70 Hz to 15,000 Hz |
| Switch | Slide switch, short-off type |
| Output Connector | XLR-3-11C (3-pin male) |
| Body Material | Die-cast zinc, metallic gray finish |
| Dimensions | Ø51 x 170 mm (Ø2.01 x 6.69 in.) |
| Weight | 245 g (0.54 lb) |
| Included Accessories | Microphone holder (NS5/8 thread), 5/8 in. to 3/8 in. thread adapter |
