TOA RM-200M Remote Paging Microphone
TOA RM-200M Remote Paging Microphone is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.

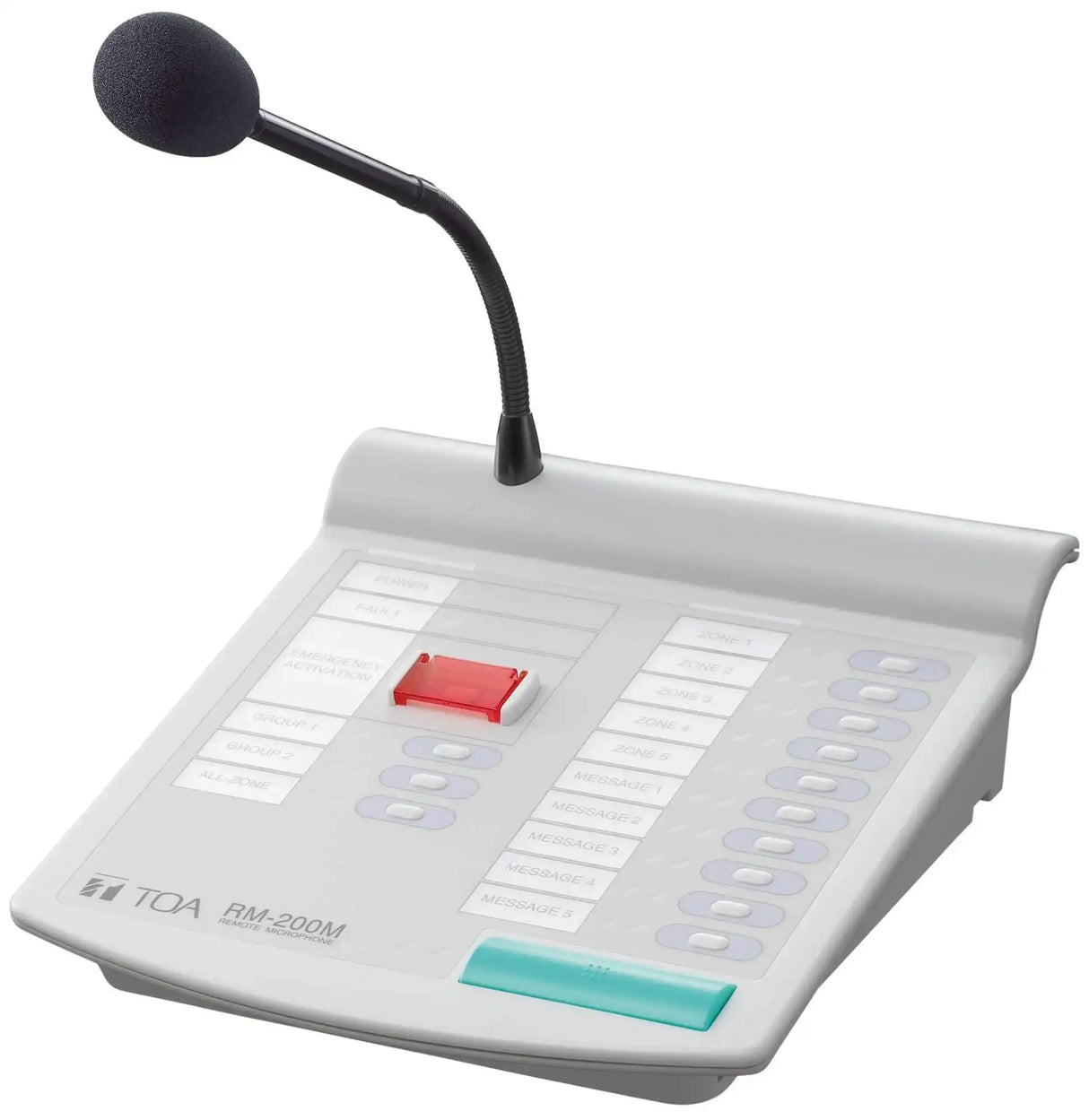

TOA RM-200M Remote Paging Microphone
Product Overview
The TOA RM-200M is a wired remote paging microphone for TOA VM-3240VA, VM-3360VA, VM-2120, and VM-2240 public address and voice evacuation amplifiers. It provides 13 function keys — including a covered emergency broadcast key and a talk key — for live and pre-recorded zone announcements, group paging, and all-call broadcasts. DEAL: On Sale.
Product Description
The RM-200M connects to its host amplifier via CAT5 shielded twisted-pair cable with RJ45 connectors, supporting up to 800 m total cable length and up to 4 units per system management amplifier. A built-in compression circuit maintains consistent, intelligible audio across a wide range of speaking volumes, reducing distortion during high-energy announcements. Ten of the 13 function keys are freely programmable to individual zones, zone groups, all-call, or pre-recorded message playback via the host system. The 24V DC supply is drawn from the host amplifier over the CAT5 link — no separate power source is required.
Key Features
| Feature | Benefit |
|---|---|
| 13 Function Keys (10 Programmable) | Zone, group, all-call paging, and pre-recorded message activation |
| Covered Emergency Key | Dedicated emergency broadcast switch prevents accidental activation |
| Built-in Compression Circuit | Maintains consistent voice clarity and controls distortion |
| CAT5 / RJ45 Connection | Standard structured cabling for long-distance installation |
| Up to 800 m Cable Length | Covers large facilities without signal degradation |
| Up to 4 Units per Amplifier | Multiple operator stations across a facility from a single host |
| Microphone Volume Control | Operator-adjustable level without returning to the amplifier rack |
| Balanced 600-Ohm Output | Low-noise, hum-free audio over extended cable runs |
Typical Applications
The TOA RM-200M is suited for facilities requiring operator-controlled PA and emergency broadcasting: school campuses using VM-2120 or VM-2240 systems for daily announcements, large commercial or retail buildings with multi-zone paging, transportation hubs needing zoned paging from multiple operator points, and medical or corporate facilities where remote microphone control of voice evacuation is required.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TOA RM-200M |
| Compatible Amplifiers | VM-3240VA, VM-3360VA, VM-2120, VM-2240 |
| Power Source | 24V DC (operating range 14-28V DC, via host) |
| Current Consumption | 100 mA or less |
| Audio Output | 0 dB, 600 ohm, balanced |
| Total Harmonic Distortion | 1% or less |
| Frequency Response | 100 Hz - 20 kHz |
| Signal-to-Noise Ratio | 60 dB or more |
| Microphone | Unidirectional electret condenser |
| Function Keys | 13 total (Emergency covered, Talk, 10 freely assignable + 1) |
| Connection | CAT5 STP straight cable, RJ45 |
| Maximum Cable Length | 800 m total |
| Units per System | Up to 4 per system management amplifier |
| Finish | ABS resin, blueish gray (PANTONE 538) |
| Dimensions (W x H x D) | 190 x 76.5 x 215 mm (gooseneck excluded) |
| Weight | 750 g |
| Included | Link cable (3 m) |
FAQ
- Which amplifiers does the RM-200M support? TOA VM-3240VA, VM-3360VA, VM-2120, and VM-2240 system management amplifiers.
- How many RM-200M units can connect to one amplifier? Up to 4 per system management amplifier, enabling multiple operator stations throughout a facility.
- Can it trigger emergency broadcasts? Yes — a dedicated, covered emergency broadcast key activates pre-recorded emergency messages or live microphone broadcasts.
- What cable type is required? CAT5 shielded twisted-pair cable with RJ45 connectors (straight cable), supporting up to 800 m total run length.
- Are function keys pre-programmed? Ten of the 13 keys are freely assignable to zones, groups, all-call, or pre-recorded messages via the host amplifier settings.
- Is a separate power supply needed? No — the RM-200M draws 24V DC from the host amplifier over the CAT5 cable.
