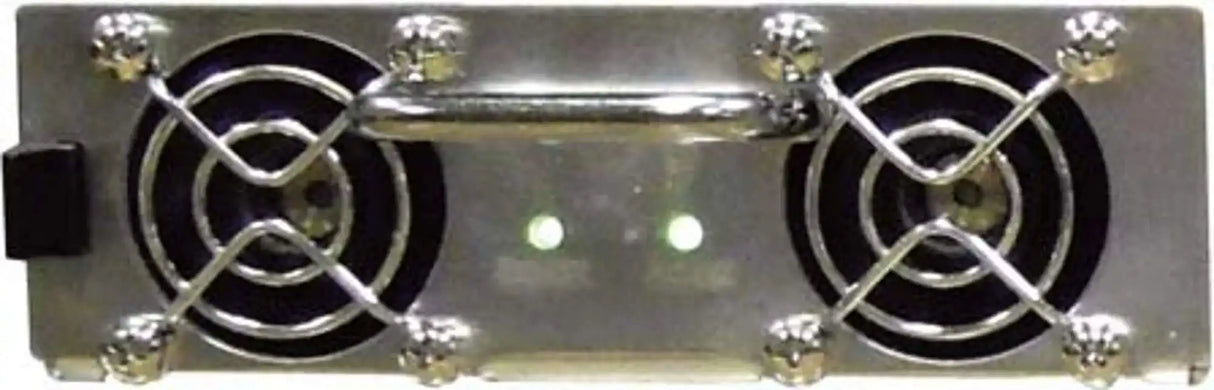

TOA RCP-1000-24 External Power Supply Module
Overview
The TOA RCP-1000-24 is a hot-swap external power supply module for the TOA VX-3000 Series distributed audio system. It provides redundant backup power to maintain system operation during AC mains interruptions, with comprehensive protection circuits and a built-in variable-speed cooling fan.
Description
The RCP-1000-24 accepts a universal AC input across the full voltage range, making it compatible with international installations. Slide it into the RCP-1UI power supply rack alongside the primary supply for hot-swap redundancy — the system continues operating without interruption if one supply fails. Onboard protections guard against short circuits, overloads, over-voltage, and over-temperature conditions. AC OK and DC OK status signals facilitate system health monitoring. At just 1U high, the module integrates seamlessly into standard VX-3000 rack deployments.
Key Features
- Hot-swap operation for zero-downtime redundancy with the VX-3000 system
- Universal AC input — compatible with international mains voltages
- Protections: short circuit, overload, over-voltage, over-temperature
- AC OK and DC OK status signal outputs for monitoring
- Built-in variable-speed DC fan for efficient thermal management
- Low-profile 1U form factor
- Requires RCP-1UI power supply rack (sold separately)
Typical Applications
- Redundant power supply for VX-3000 distributed audio systems in critical facilities
- Hospitals and emergency operations centers where audio continuity is essential
- Airports, transit hubs, and public venues with life-safety paging requirements
- Corporate headquarters with mission-critical background music and paging
- Educational campuses requiring guaranteed bell and announcement system uptime
- Worship facilities that cannot afford AV system downtime during services
Technical Specifications
| Specification | Value |
|---|---|
| Compatible System | TOA VX-3000 Series (requires RCP-1UI rack) |
| AC Input | Universal / Full Range |
| Hot-Swap | Yes |
| Form Factor | 1U (low profile) |
| Cooling | Forced air, built-in DC fan with speed control |
| Protections | Short circuit, overload, over-voltage, over-temperature |
| Status Outputs | AC OK, DC OK |
| Dimensions (LxWxH) | 295 x 127 x 41 mm (11.61 x 5.00 x 1.61 in) |
Frequently Asked Questions
What rack is required for the RCP-1000-24?
The RCP-1000-24 requires the TOA RCP-1UI power supply rack, which is sold separately. The rack provides the mounting and bussing infrastructure for the module.
Can the VX-3000 system continue operating if the primary power supply fails?
Yes. With the RCP-1000-24 installed in the RCP-1UI rack as a redundant module, the VX-3000 system operates continuously in a hot-swap configuration — if the primary supply fails, the backup module takes over with no system interruption.
Is the RCP-1000-24 compatible with both 120V and 240V AC mains?
Yes. The universal AC input design accepts the full range of international mains voltages, so no voltage selection switch or external transformer is needed.
