TOA D-001T – Dual Balanced Mic/Line Input Module with DSP
Product Overview

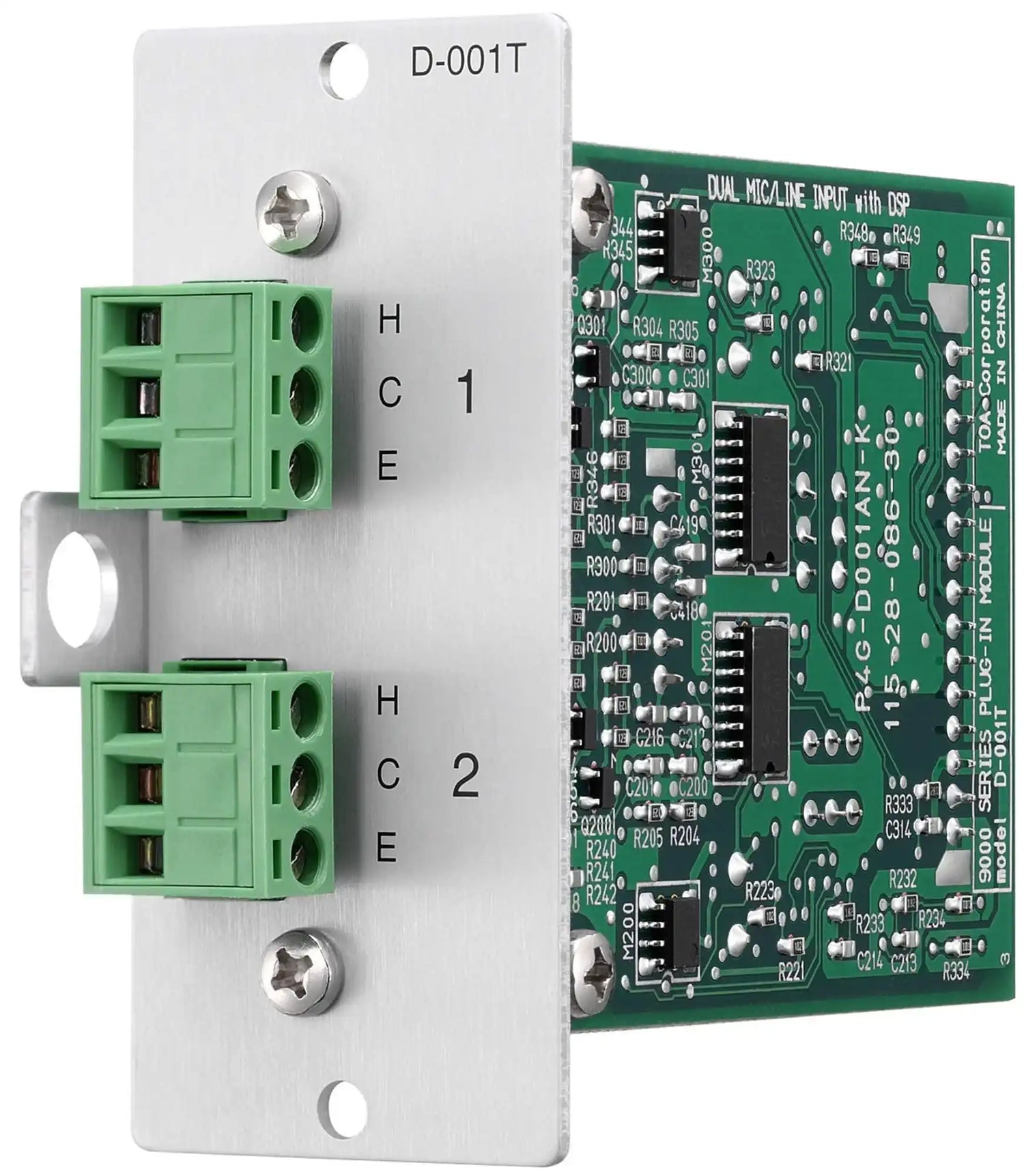

The TOA D-001T is a dual balanced microphone and line input module with built-in DSP for the M-9000M2 Digital Matrix Mixer. It provides two independent balanced inputs with 24-bit A/D conversion, nine-step sensitivity control, phantom power for condenser microphones, and onboard DSP including 10-band parametric EQ, tone control, high/low pass filters, and a compressor per channel.
Product Description
The D-001T plugs directly into the M-9000M2 matrix mixer and processes each input channel independently with its built-in DSP engine. Sensitivity adjusts in nine increments from -60 dB to -10 dB, covering dynamic microphones through line-level sources. The +24 V phantom power supply supports condenser microphone use. The DSP section includes 10-band parametric EQ, treble and bass tone controls, high and low pass filters, and a compressor applied per channel, giving mixing engineers comprehensive signal shaping without external processors.
Key Features
- Dual balanced mic/line input module for the TOA M-9000M2 Digital Matrix Mixer
- 24-bit A/D conversion for high-fidelity digital capture
- Input sensitivity adjustable in 9 steps from -60 dB to -10 dB
- +24 V phantom power for condenser microphone compatibility
- Built-in DSP per channel: 10-band parametric EQ, high/low pass filters, tone control, compressor
- Input impedance: 3 kΩ (phantom on) / 10 kΩ (phantom off), electronically-balanced terminal block
Technical Specifications
| Input Channels | 2 (independent) |
|---|---|
| Input Type | Balanced, removable terminal block (3-pin) |
| Input Impedance | 3 kΩ (phantom power on) / 10 kΩ (phantom power off) |
| Sensitivity Range | -60 dB to -10 dB, 9 selectable increments |
| Phantom Power | +24 V DC |
| A/D Converter | 24-bit |
| DSP Features | 10-band parametric EQ, treble/bass tone, high/low pass filters, compressor (per channel) |
| Compatible System | TOA M-9000M2 Digital Matrix Mixer |
